Summit User Manual Chapter 6: Searching CATC Traces
Teledyne LeCroy
91
Read‐Me file for more information if you have problems with
application crashes, etc.
Viewing Attachments of a Marker
If you hover over the marked cell (yellow triangle at the top
right of the marked item), refer to
“Attachment Types and
Visualization” on page 90 , a window pops up displaying the
contents of the marked cell as shown below.
To view an attachment you can click on any of the icons in the
attachment bar and or you can double‐click on the icon itself
to open the attachment.

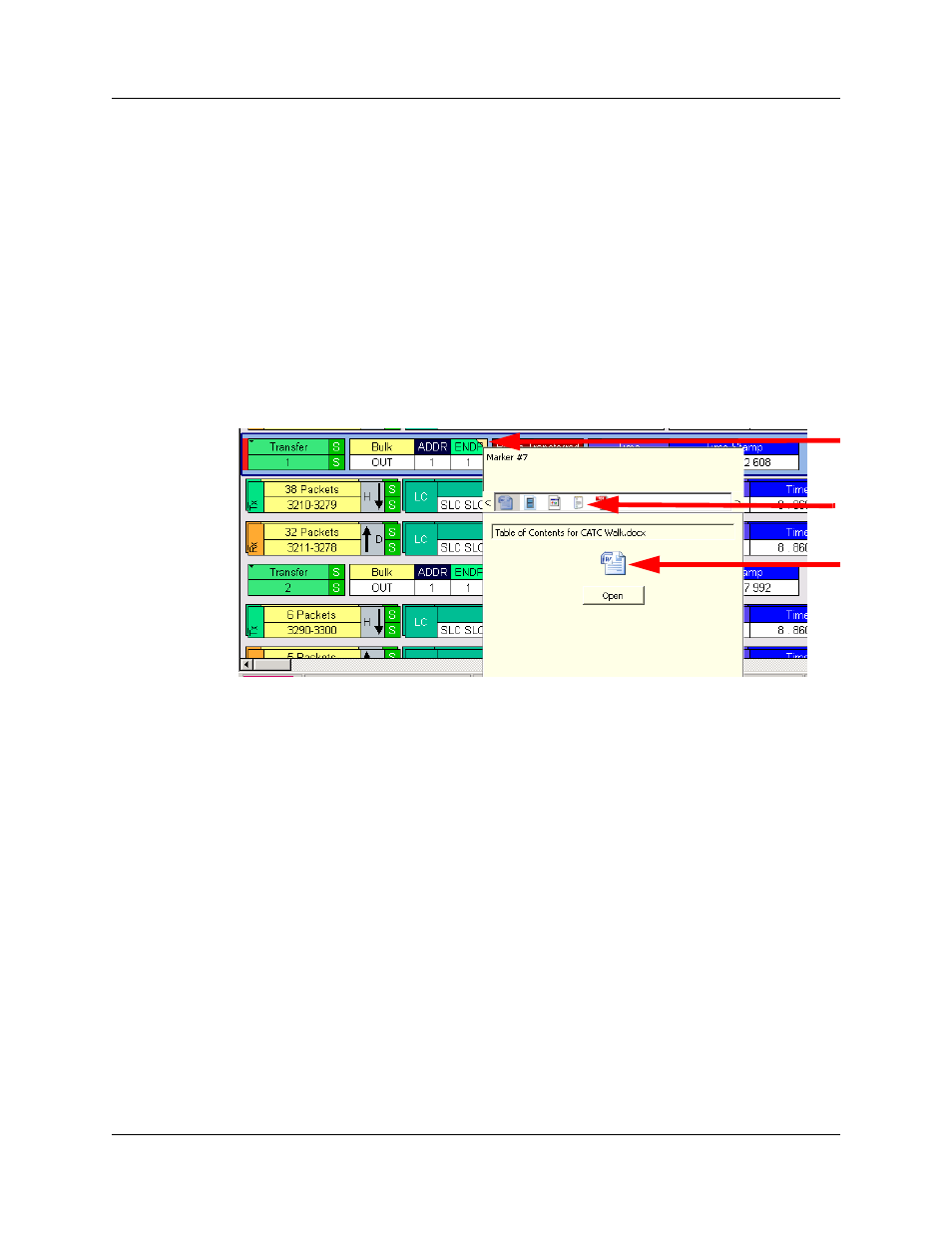

Pop-up Displaying Marker Contents
Text
The text attachment is displayed in the icon bar and in the
main pop‐up window. Text attachments are always shown at
the top. The attachment file name is displayed in the field as
shown below.
