10.7 Using the CATC Trace Navigator
The CATC Trace Navigator is a tool for navigating within the CATC Trace. It allows you
to view the location of errors and triggers in a CATC Trace and to narrow the range of
traffic on display. It also allows you to quickly jump to any point in the CATC Trace.
Displaying the Navigator

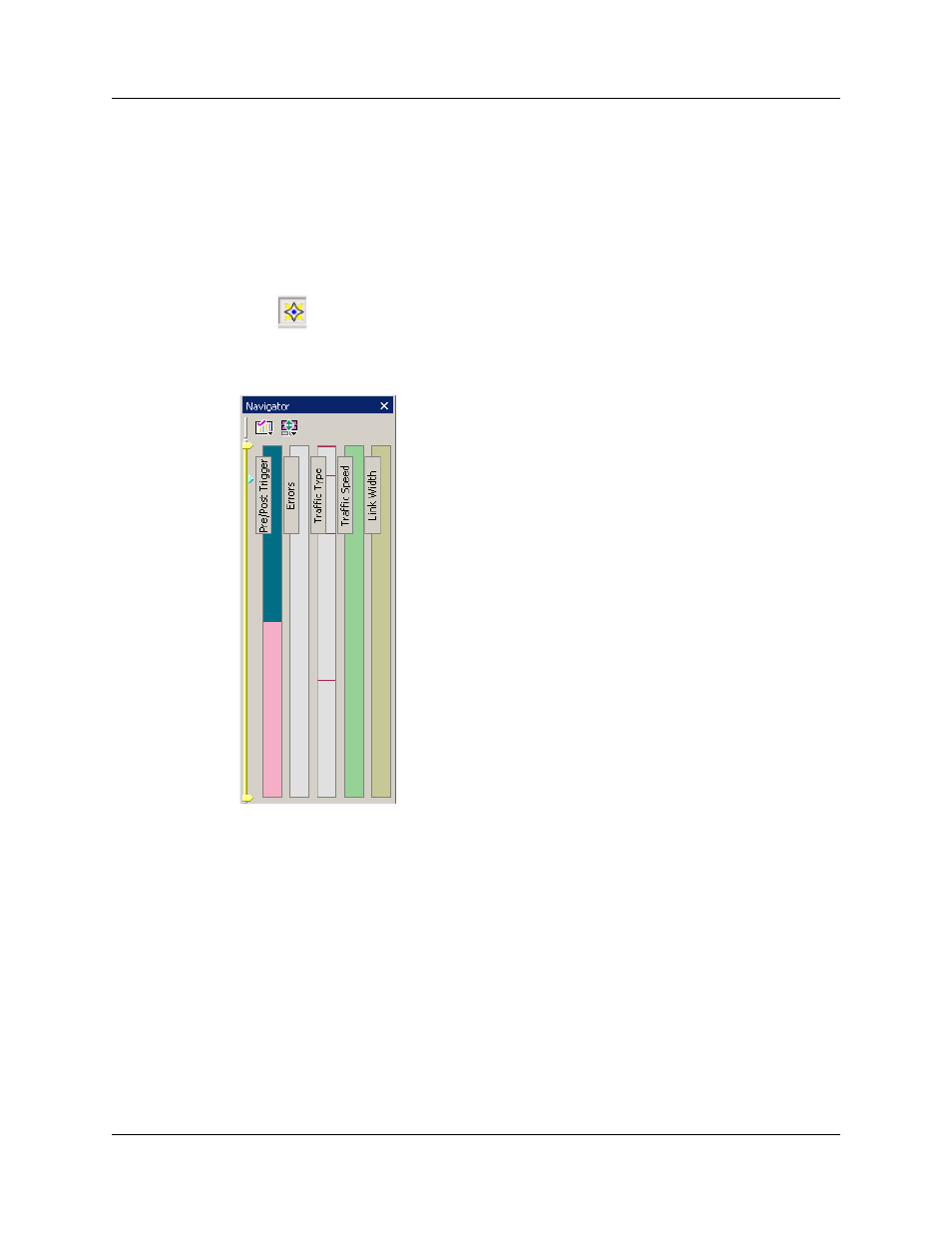

Click in the toolbar to display the Navigator. The Navigator appears on the right side
of the Main window. It has a two-button toolbar and a vertical slider bar. It also has colored
panes for navigating the CATC Trace in different ways. You set which panes are
displayed through Navigator pop-up menus.
