Summit User Manual Chapter 3: Installation and Setup
Teledyne LeCroy
39

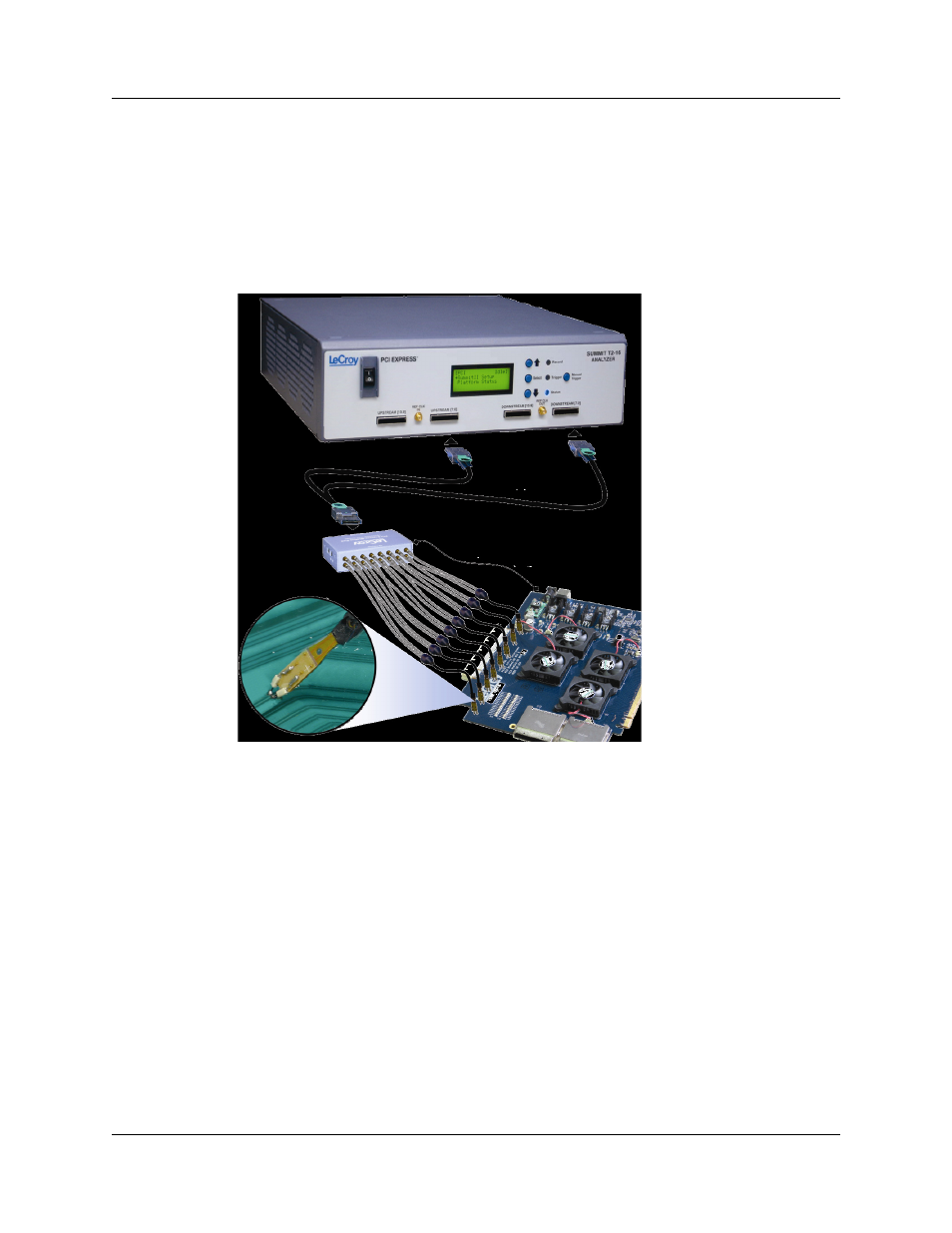

Connections Overview for Gen2 Multi-lead Probe
Use a 1-pod or 2-pod setup depending on the lane width of the recording:
•
For x16 recordings, use the 2-pod setup.
• For all other lane width recordings, use a one-pod setup.
For x8 and x16, use the straight iPass cables to connect the probe data connectors on
the Analyzer to the pod(s).
On the other side of the pod, connect the flexible lead tips.
Connection Procedure
To connect Summit T2-16 to the System Under Test (host platform/root complex):
Step 1 Connect the pods to the Analyzer using the straight iPass cables.
Step 2 Connect the flexible lead tips to the pods using the SSMP cables.
Step 3 Connect the lead tips to the system under test by soldering to the trace.
