Reason: Both the sequence state and the global state rules are used, and all TLPs and
DLLPs are filtered out.
While in state 3: Nothing is recorded.
While in state 4: Everything is recorded.
Reason: The sequence state rule to filter in anything overwrites global state rule.

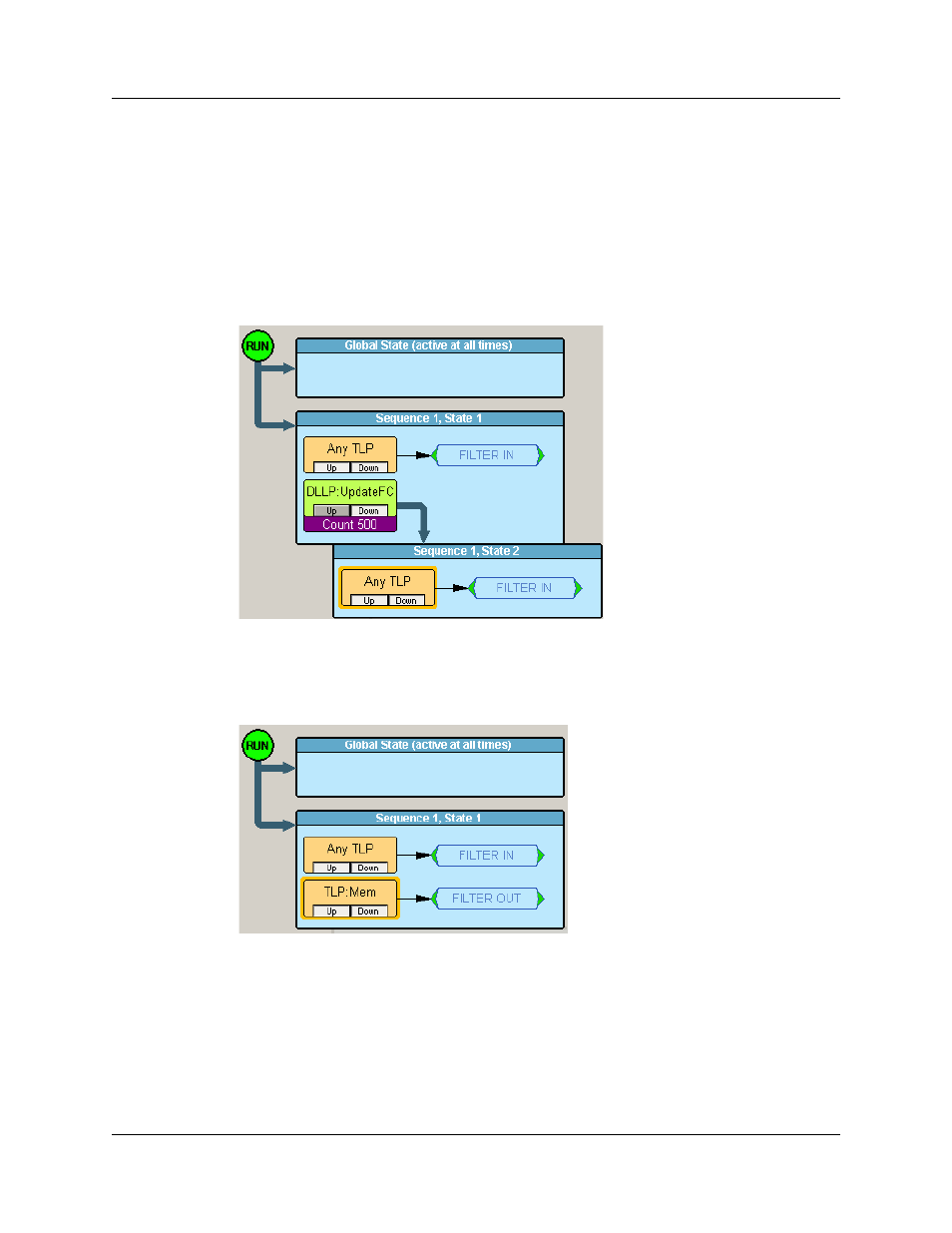

Example 16
Result: Only TLP (any type) is in the CATC Trace.
Reason: In both states, the rule is to keep only TLP.
Example 17
Result: Only TLP (any type) is in the CATC Trace.
Reason: The Filter-out rule is ignored because there is a filter-in rule with a higher
priority.
