9.14 Decoding Bar

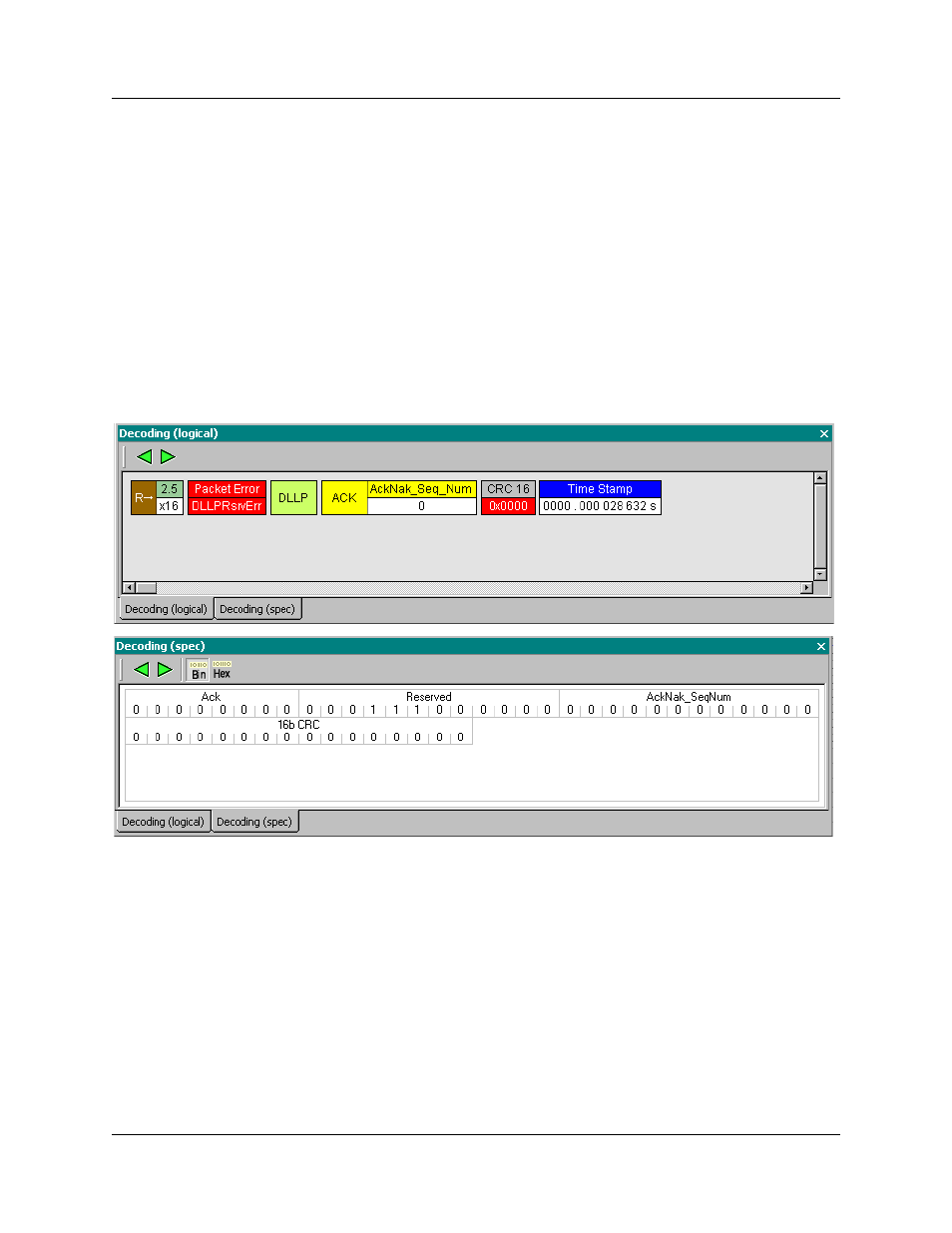

If you select them in the data view, or search or jump locates a feature, BitTracer mode
displays ordered sets and packets in the Decoding window:
• Logical view is identical to CATC Trace format.
• Specification view provides a more elementary display. The Specification view
includes an option to display data in hex or binary format.

Note: Packets and ordered sets translate directly to this view from data capture and use
any post-capture skew manipulations you add, or use natural lane-to-lane skew present
on the link if you have not added post-capture skew manipulations. Typically, you would
perform an Auto De-Skew before viewing ordered sets and packets in this view.
Use the left and right arrows to search for the next or previous symbol type.
