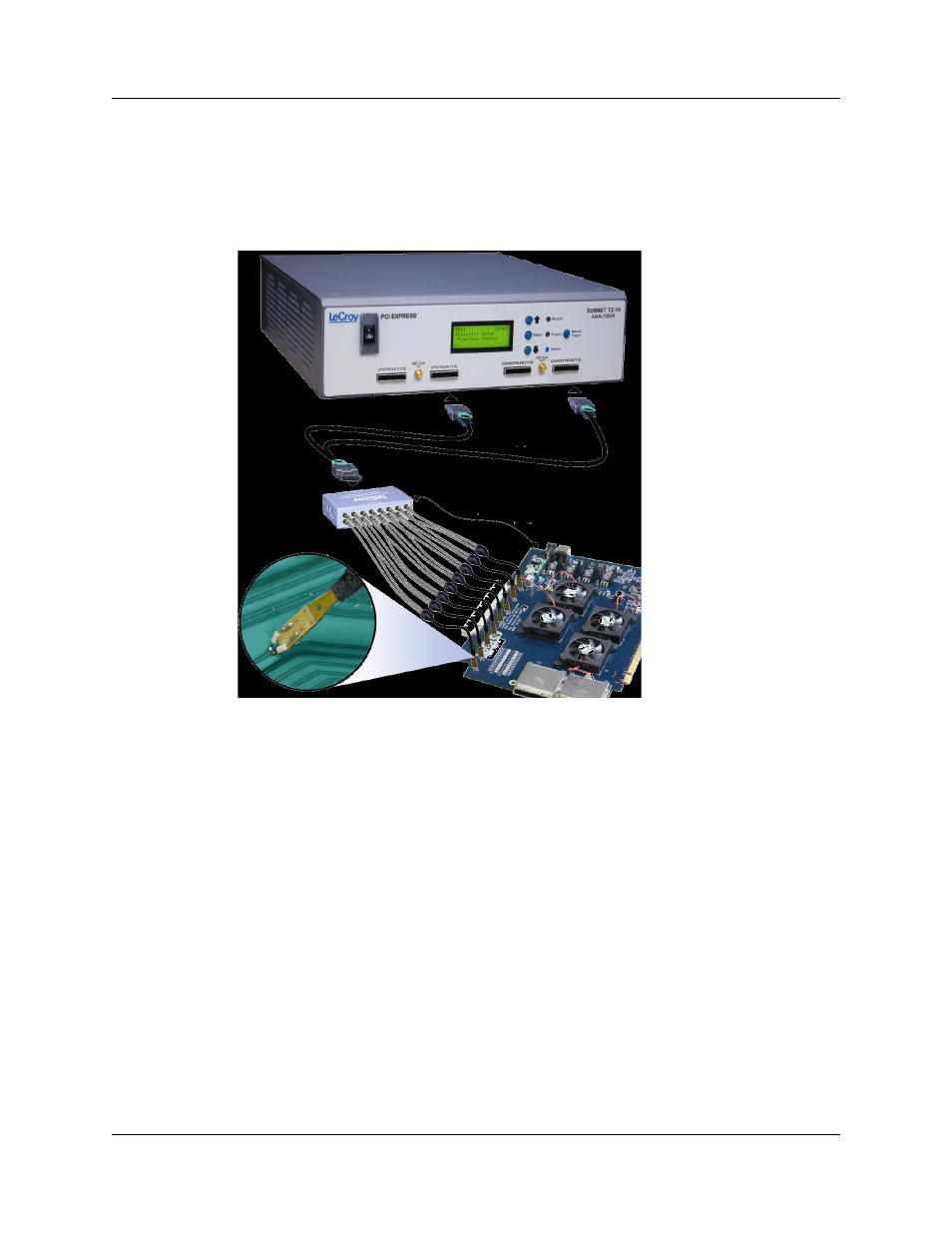

Connections Overview for Gen2 Multi-lead Probe
Use a 1-pod setup.
For x1 or x4, use the iPass Y-cable to connect the probe data connectors on the Analyzer
to the pod(s).
On the other side of the pod, connect the flexible lead tips.
Connection Procedure
To connect Summit T2-16 to the System Under Test (host platform/root complex):
Step 1 Connect the pods to the Analyzer using the iPass Y-cable cables.
Step 2 Connect the flexible lead tips to the pods using the SSMP cables.
Step 3 Connect the lead tips to the system under test by soldering to the trace.
