B-500-MTRX-230-8x8 Installation Manual
Pg. 7
www.snapav.com Support: 866.838.5052
7. Installation and Setup

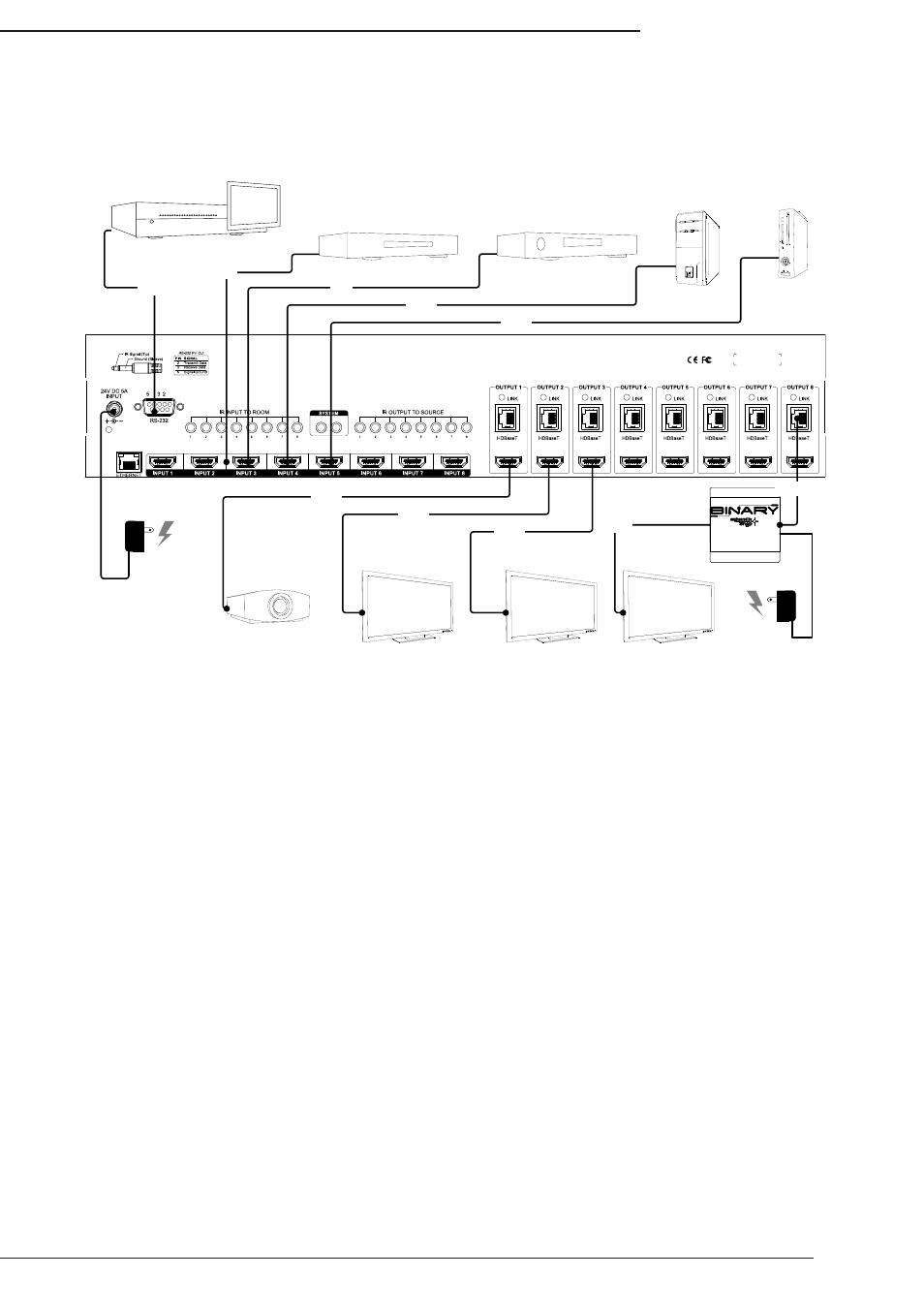

7.1. Basic Installation Diagram
7.2. Basic Instructions
1. Unpack the matrix and install it near the source equipment. (7.4. Switcher Location and Placement, page 8)
Note: Do not power the matrix switcher until it is indicated to do so.
2. Install and connect each source to an input on the matrix switcher using the shortest HDMI cable possible.
(7.5. HDMI Input Connections, page 9)
3. Install the displays and output wiring to the matrix location using HDMI cables for standard HDMI output or
Cat5e/6 if B-500-RX-230-IR Receivers will be used. (7.6. Output Connections, page 9)
4. Record the inputs and outputs used in the System Layout Chart for future reference.
(14. System Layout Chart, page 26)
5. If using a control system, connect it to the appropriate port on the matrix switcher for the driver type being used:
IR, RS232, or IP control. (7.7. Matrix Control Connections, page 11)
6. Install and configure the driver for matrix switching control into the control system processor.
(7.7. Matrix Control Connections, page 11)
7. Install the IR equipment and set up IR pass-through if using it.
(7.8. IR Pass-Through Installation and Setup, page 12)
8. Attach the power supplies to the matrix, sources, and displays, then power up the system.
9. Test all input and output selections for sync, reliable switching, correct audio format and video resolution. Use the
factory remote or the Matrix Configuration Utility to set up EDIDs as needed. (8. EDID Configuration, page 16)
10. Change any advanced settings in the Matrix Configuration Utility as needed to suit the installation.
(9. Advanced Setup Using the Configuration Utility, page 20)
Complete the basic installation section to set up the matrix switcher for media distribution before completing any other
setup. Use this diagram for reference during basic installation of the matrix switcher, sources, displays and wiring.
These are the basic steps that must be taken to connect equipment to the inputs and outputs of the matrix switcher
and configure the system for use. See the sections listed for full information on completing each step.
PWR
Engineered in the USA Manufactured in Taiwan
IR IN ALL IR OUT
Projector
Game
Console
PC
HDTV HDTV HDTV
RS232
HDMI
HDMi
HDMI
HDMI
HDMI
HDMI
HDMI
B-500-RX-230-
IR
Cat5e/6
HDMI
Home Automation System
Blu-ray Player Cable/Sat Box
AC Power
AC Power
