B-500-MTRX-230-8x8 Installation Manual

Pg. 6

™

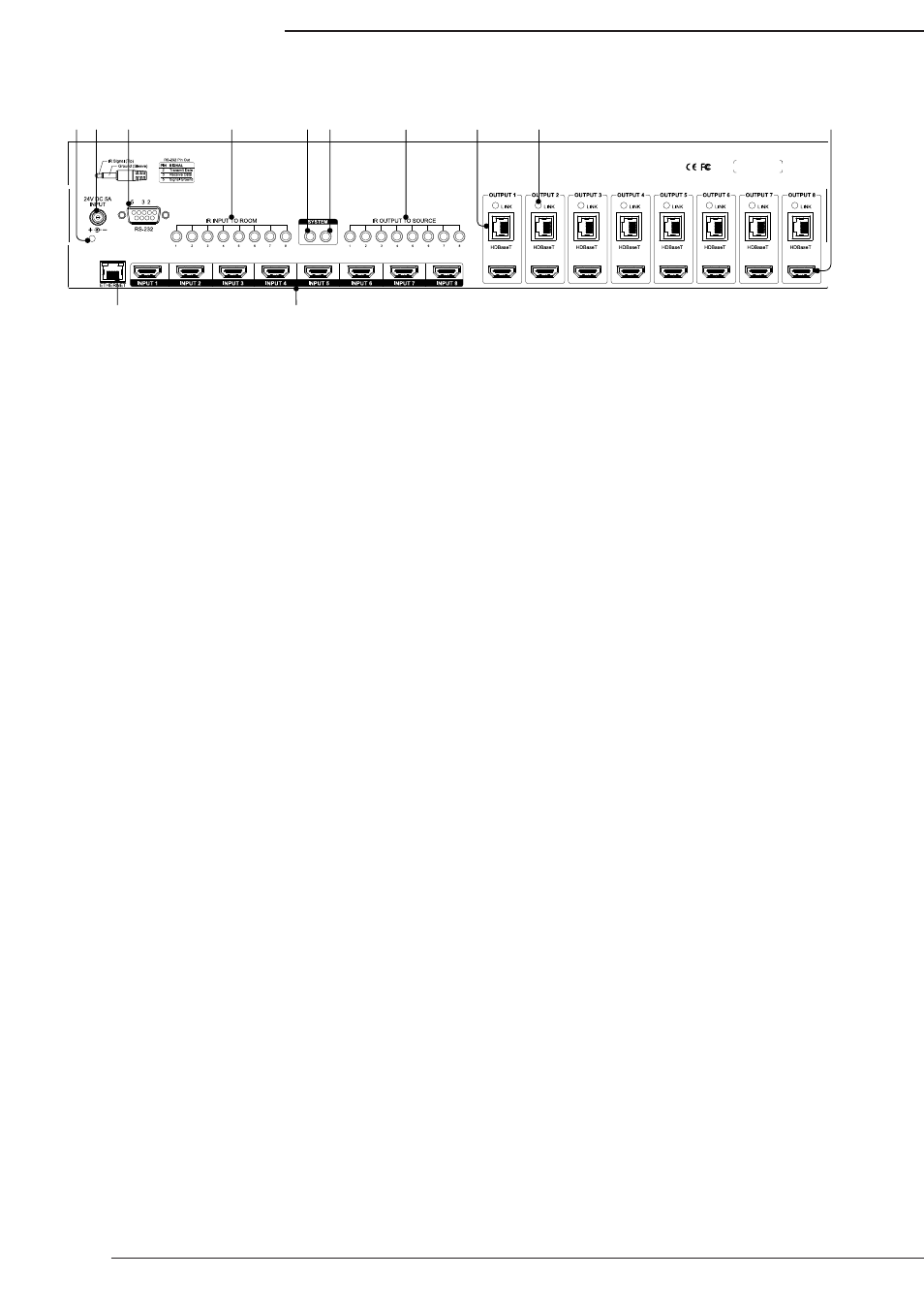

6.2. Rear Panel

1. Power LED

Indicates the current power status of the matrix switcher. Solid red indicates that power is on.

2. Latch-Locking Power Jack

+24V 5A DC power supply connection with locking screw collar for secure connection.

3. RS-232 control port (DB9)

Attach connection from control system or Windows PC for serial control of the B-500-MTRX-230-8x8.

4. IR Input to Room 1 through 8

3.5mm mono-mini connection for IR pass-through. Connect the control system IR Flasher outputs to send commands

to displays or other devices in the room (only when using the B-500-RX-230-IR to extend to displays).

5. System IR In

3.5mm mono mini IR input port for matrix control.

6. System All IR Out

3.5mm mono mini port, repeats all IR commands from all connected HDBaseT outputs (from IR Receiver port of

B-500-RX-230-IR).

7. IR Output to Source 1 through 8

3.5mm mono mini connections used to connect IR flashers for controlling sources. These ports may be configured to

route commands only from the IR output corresponding to the HDBaseT output number (IR zone routing), or directly

to the source selected for viewing on an HDBaseT output (IR source routing). (See Configuration Utility Manual)

8. RJ45 HDBaseT Outputs 1 through 8

Connect 568B terminated Cat5e/6 HDBaseT cable routed to a B-500-RX-230-IR up to 230 feet away to feed HDMI

signal to display. Output simultaneously displays the same source as the HDMI output of the same number.

9. Link LEDs 1 through 8

The green Link LEDs indicate the status of the HDBaseT connection. Off= No link; On= Link is active.

10. HDMI Outputs 1 through 8

Connect HDMI cables to route to displays. Output simultaneously displays the same source as the HDBaseT output

of the same number.

11. Ethernet Port

RJ45 port for connecting an Ethernet Cat5e/6 cable for IP control of the B-500-MTRX-230-8x8.

12. HDMI Inputs 1 through 8

Connect HDMI cables from sources to the matrix switcher for distribution.
