Device layout – Staub Electronics B-500-MTRX-230-8X8 BINARY - HDMI 8X8 MATRIX SWITCH WITH HDMI AND HDBASET OUTPUTS User Manual
Page 5
B-500-MTRX-230-8x8 Installation Manual
Pg. 5
www.snapav.com Support: 866.838.5052
6. Device Layout

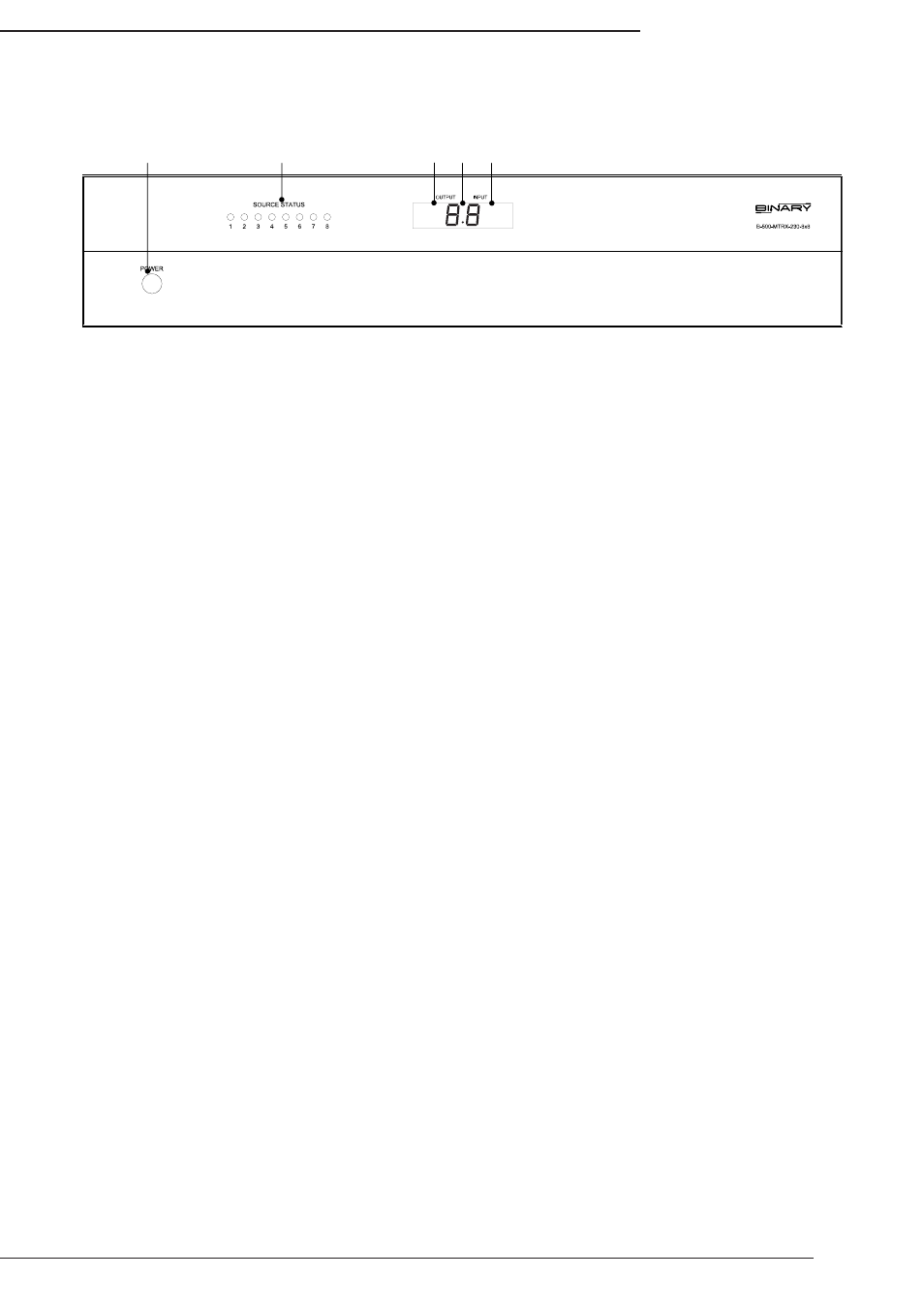

6.1. Front Panel
1. Power On/Off Switch
Toggle Power from On to Stand-by. Can be disabled from Configuration Utility software.
2. Source Status LEDs
Indicates that the selected source is on and transmitting an HDMI signal.
3. Output Display
Displays the last output selected.
4. IR Receiver Window
IR receiver for Matrix to capture commands sent by IR remote.
5. Input Display
Displays the last input selected.
1
2
3
5
4
