1 FAMILIARIZING YOURSELF WITH THE DRIVE
To get acquainted with the operation and programming, the drive does not need to be installed
into the application or have a motor connected. In addition, drives rated for 3-phase AC Line
input, can be operated with only 1-phase.
To better understand the programmable features of the drive, review the Programmable
Function List in Section 12, on pages 54 – 63.
To familiarize yourself with the input/output features of the drive, review the Remote Operations
section, on pages 25 – 43.
To facilitate the programming procedures of the drive, review the flow charts in Section 10.4, on
pages 45 – 51.

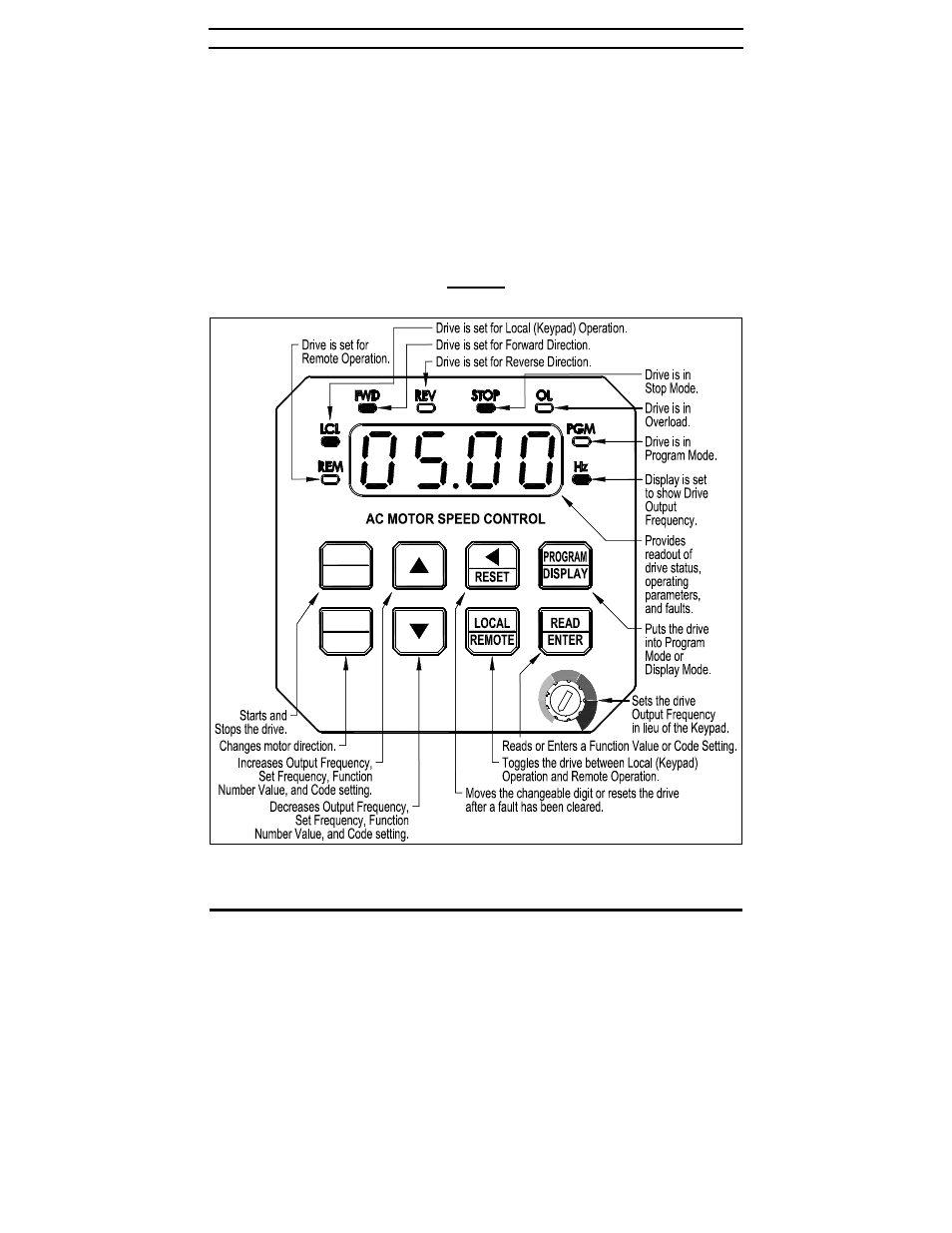

FIGURE 1
DESCRIPTION OF
4-DIGIT DISPLAY, LEDs, KEYS, AND MAIN SPEED POTENTIOMETER
STOP
FWD
REV
RUN
