KB Electronics KBDF-48 User Manual

Page 48

background image

48

FIGURE 40

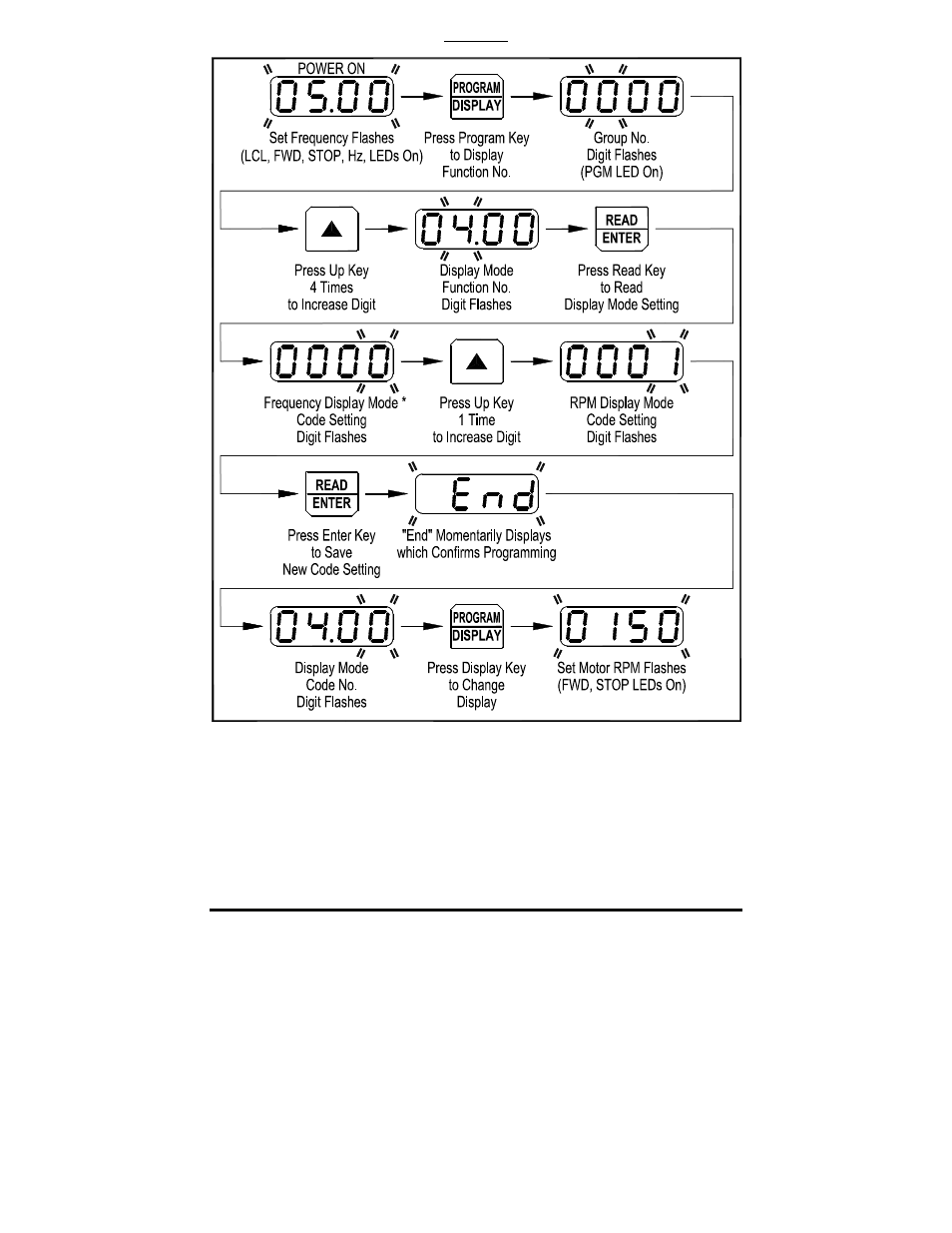

FLOW CHART TO PROGRAM THE DRIVE TO DISPLAY MOTOR RPM

*The factory setting of display Mode (Function 4.00) is Frequency ("0000").
