6. Precautions for Use
Warning
(6) Press the emergency-stop switch.
(7) When performing an absolute reset of arm 1, set an adjustment jig (pin) on arm 1 to fix the arm in the
reference position. In this case, arm 2 may be moved. When performing an absolute reset of arm 2,
set an adjustment jig (pin) on arm 2 to fix the arm in the reference position. In this case, arm 1 may be
moved.
x Set the jig after confirming that the emergency-stop switch is pressed.
x Set the jig after adjusting the arm to the reference position, using the positioning mark label as a
guide.
x Arm 1 has a cover (not arm 2), which is fixed with setscrews. Remove the setscrews and detach
the cover before setting the jig.
x It is recommended that an adjustment jig be used to perform an absolute reset. With arm 1 or 2,
however, rotation data can be reset as long as a positioning accuracy of “center of positioning mark
label
r1 graduation” is ensured.
z Always press the emergency-stop switch before setting an adjustment jig. Failure to do so may
cause the robot to malfunction and result in a serious accident.
Positioning mark
label for arm 1
Positioning mark
label for arm 1
Positioning
mark label for
arm 2
Adjust arm 1 or 2 to a
position within ± 1
graduation of the center.

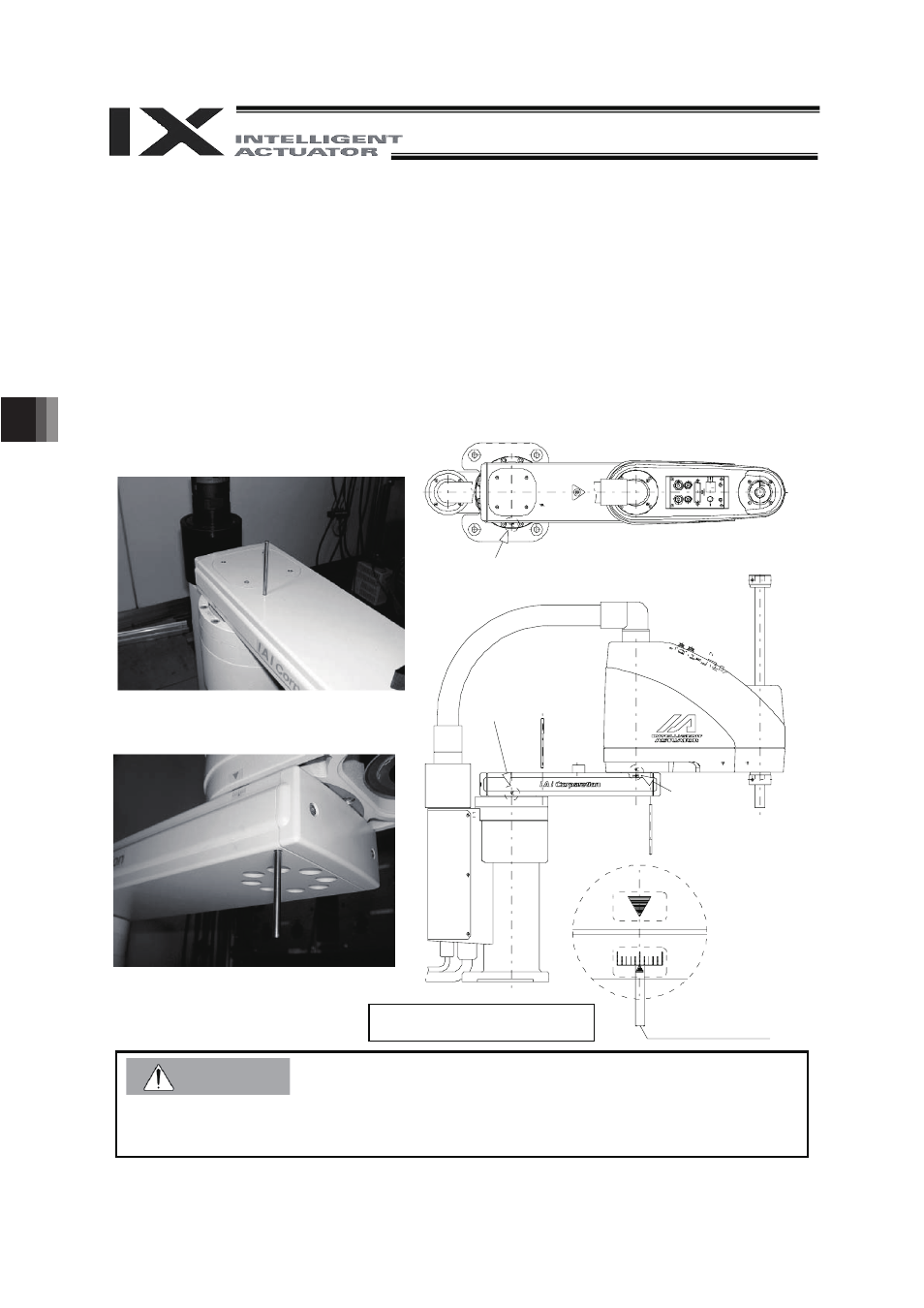

Reference position drawing
Arm 1
Arm 2
