9
1. Names of Robot Parts
1 Names of Robot Parts

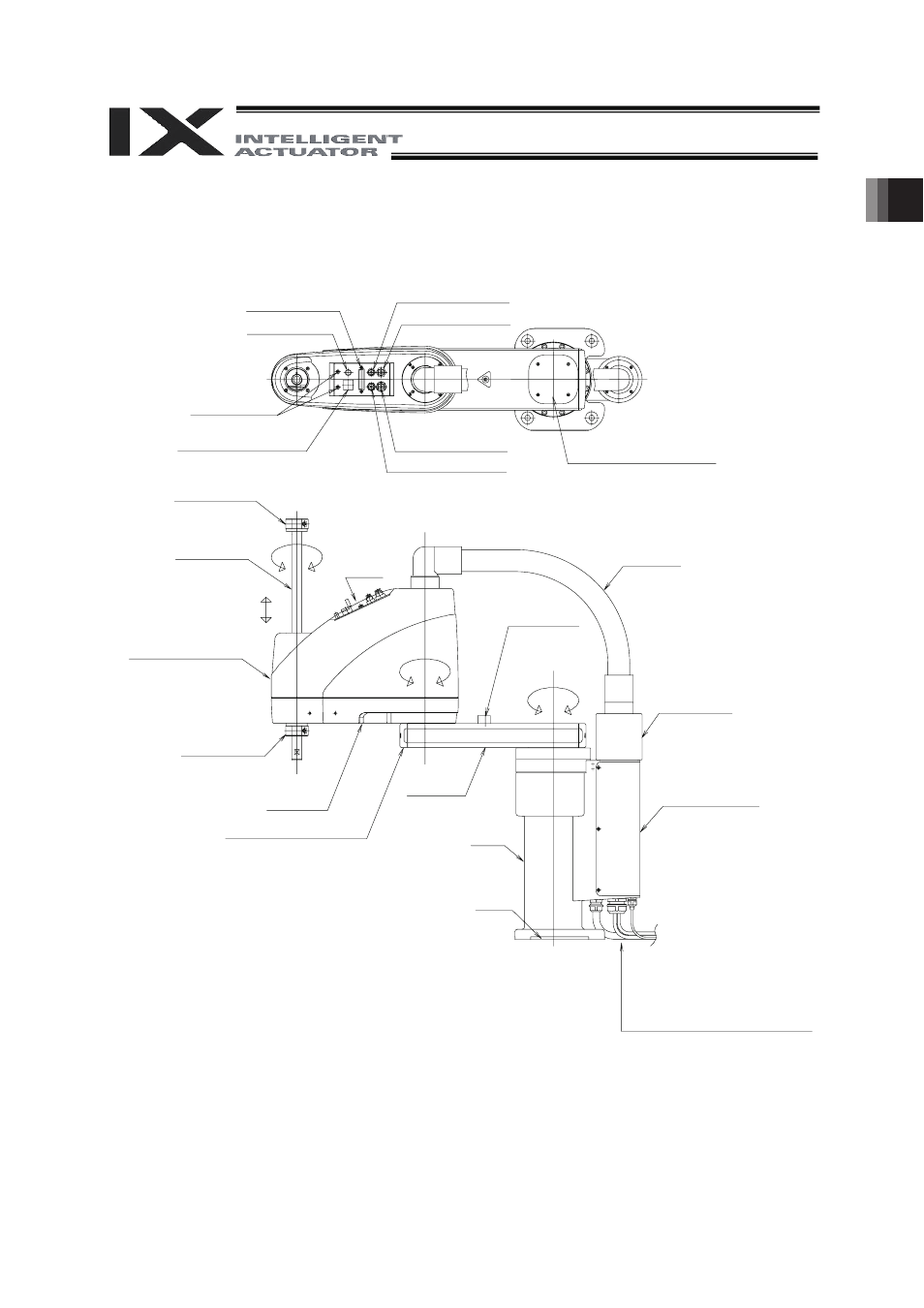

1.1 Names of Parts
User connector
ALM (indicator)
I 4 joint for user piping, black
I 6 joint for user piping, red
Spacer for user
part installation
BK SW
(Brake-release switch)
I 4 joint for user piping, white
I 6 joint for user piping, yellow
Top cover (arm 1)
Mechanical stopper for
axis 3 (vertical axis)
Axis 4
(rotational axis)
Panel
Ball screw
spline shaft
Cover (arm 2)
Wiring duct
Mechanical stopper for
axis 3 (vertical axis)
Axis 3
(vertical axis)
Axis 2
Arm 2
End cover (arm 1)
Arm 1
Base
Cover (base)
Mechanical stopper
for arm 1/arm 2
Axis 1
Mechanical
stopper for arm 2
Reference
surface
M cable (outside robot)
PG cable (outside robot)
U cable (outside robot)
Air tubes (
I 4: 2 pcs., I 6: 2 pcs.)
BK power cable
