4. Maintenance Inspection
65

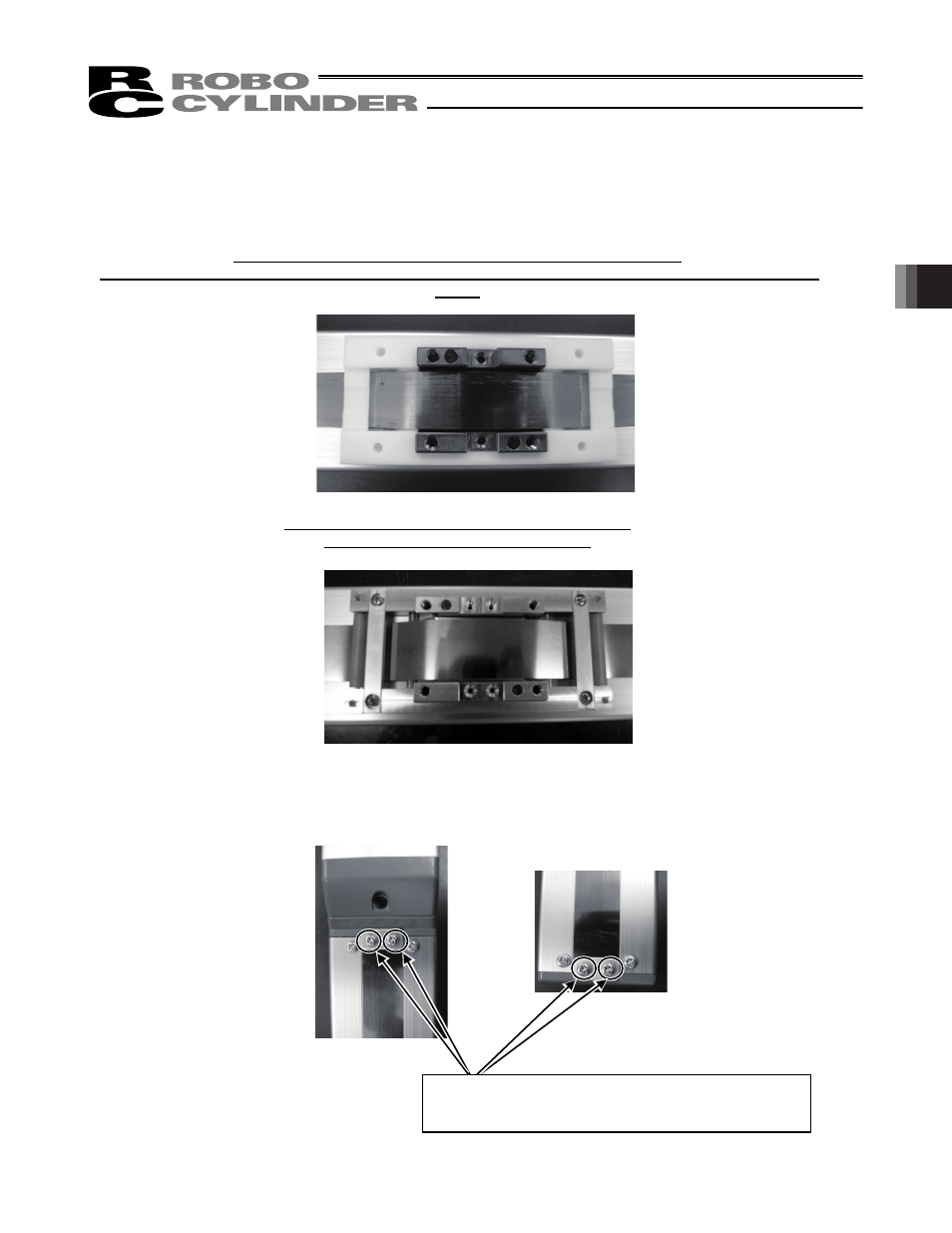

4.7.2 Procedure for Replacement and Tuning
(1) Move the slider to the middle of the actuator
(2) Remove the screws affixing the slider cover.
For SA5C and SA5R there is a plate spring. Remove the spring.
Standard Type (RCP4-SA5C, SA6C, SA7C, SA5R, SA6R, SA7R)
Condition with Slider Covers Detached (the condition that the plate spring is also removed for SA5C and
SA5R)
Clean Room Type (RCP4CR-SA5C, SA6C, SA7C)
Condition with Slider Covers Detached
(3) With a screw driver, remove the 2 screws on each side and detach the holder plate and old stainless
steel sheet.
(4) Hold the new stainless steel sheet with the holder plate and the screws.
At this time, tighten the screws on the motor side properly and leave the other side loose.
Motor Side
Opposite Side of the Motor
Stainless Steel Sheet Holder Plate and Fixing Screws
Tighten on the motor side properly and leave the
other side loose.
