4. Maintenance Inspection
64
4.7 Procedure for Stainless Steel Sheet Replacement and Adjustment
In this section, explains how to replace and adjust the stainless steel sheet.
The screws and other components detached for the replacement will be necessary when rebuild the product.
Prepare a storage box beforehand to keep the components in it.
4.7.1 Preparation
(1) Items required for replacing the stainless sheet
x Replacement stainless sheet
x Hex wrench
x Scale
(2) Caution for the stainless steel sheet tension
Degradation and wear-out of the stainless steel sheet relies on its tension of attachment.
If the stainless steel sheet is pulled with a huge force and the gap between the sheet and the slider cover
is large, there is a risk of metal fatigue.
On the other hand, if the tensile strength is too low, the stainless steel sheet would interfere with the
back side of the slider cover and make dust to be generated. Therefore it is necessary to have the
dedicated tuning tool to adjust the tension of the stainless steel sheet to have the appropriate gap
between the stainless steel sheet and slider cover.

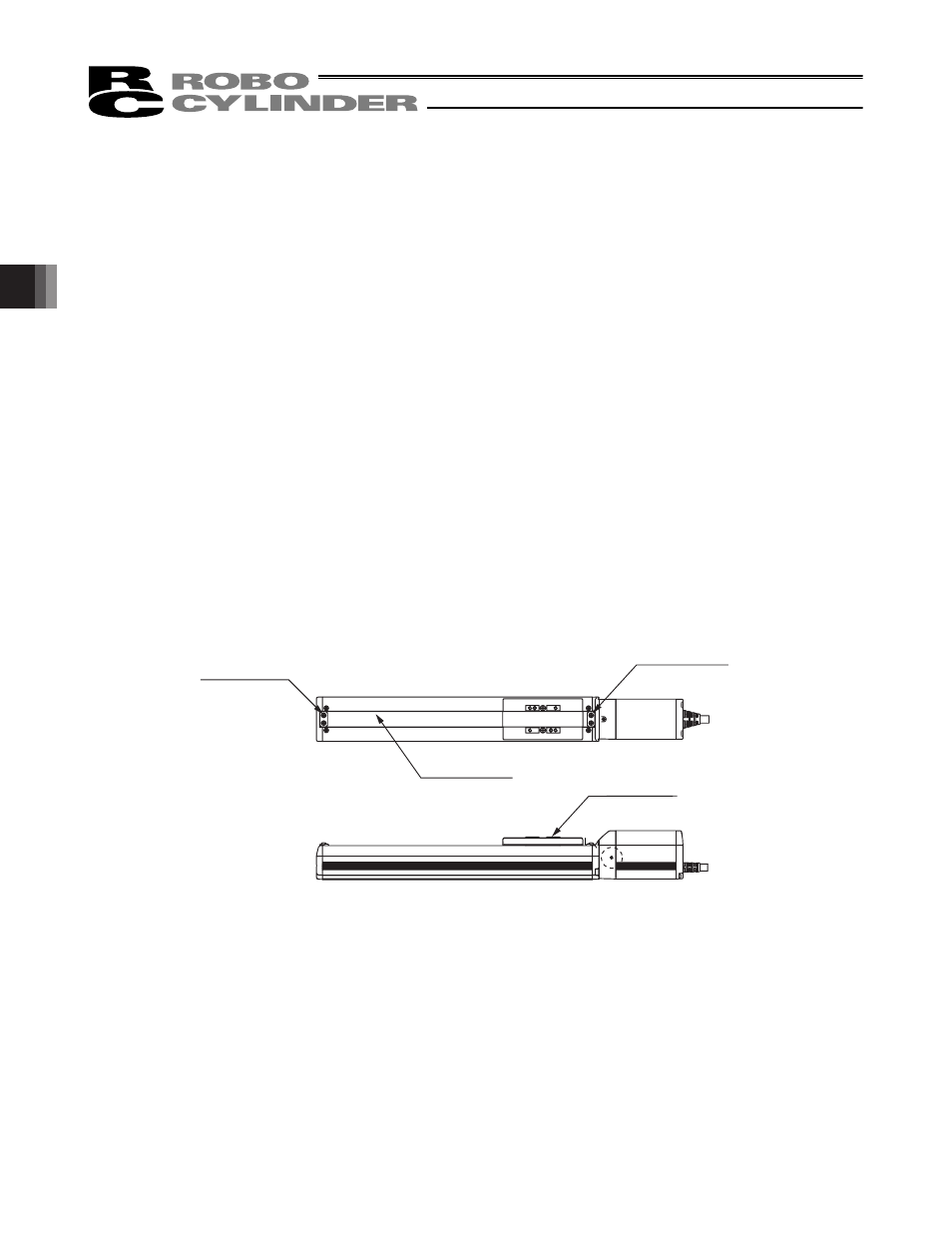

(3) Names of the Parts
Stainless Sheet
Stainless Sheet
Retainer Plates
Stainless Sheet
Retainer Plates
Slider Cover
