9

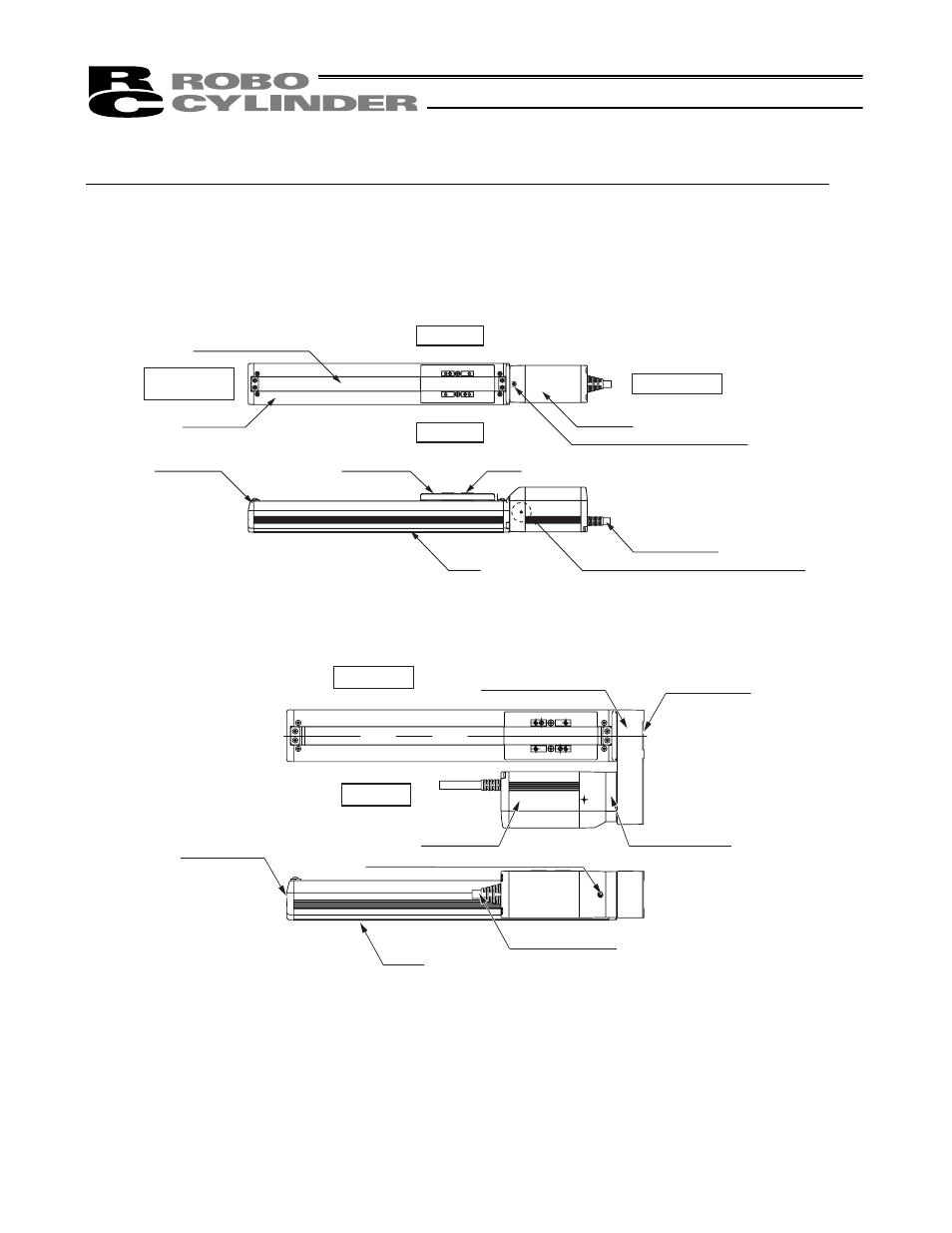

Names of the Parts
In this Operation Manual, the left and right sides are indicated by looking at the actuator from the motor end,
with the actuator placed horizontally, as shown in the figure below.
1. Standard Type Motor Straight Type RCP4
2. Standard Type Motor Reversing Type RCP4
The direction of the motor is either left reversed: ML (shown in figure above) or right reversed: MR.
Screw for motor unit attachment
Tapped hole for ground cable connection
Side Cover
Opposite Side
of the Motor
Motor Side
Slider
Motor Unit
Front Cover Slider Cover
Stainless Steel Sheet
Actuator Cable
Base
Right Side
Left Side
Right Side
Left Side
Motor Unit
Screw for Motor Unit Attachment
Pulley Bracket
Pulley Cover
Reversing Bracket
Front Cover
Base
Actuator Cable
