6. External Dimensions
44

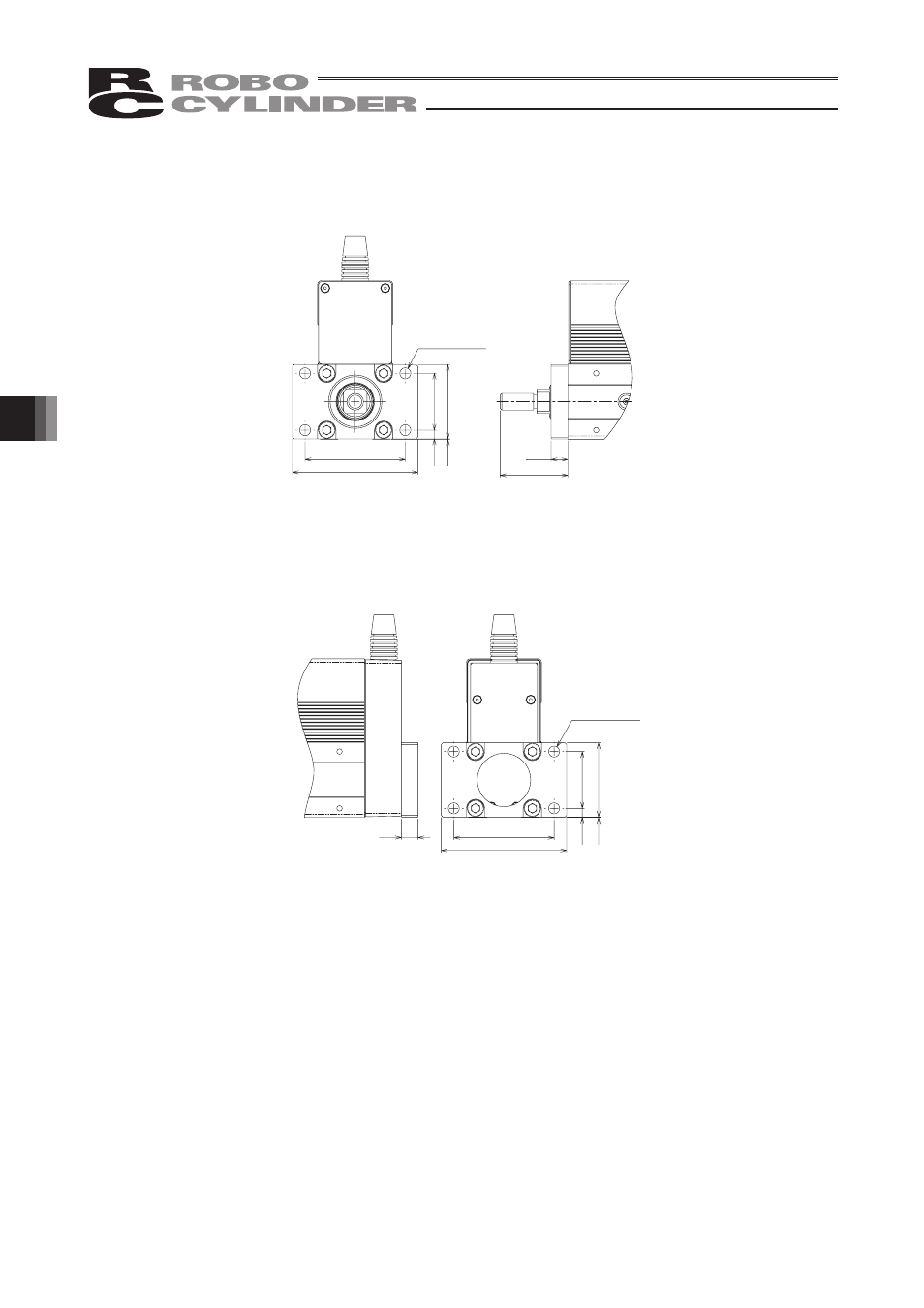

6.6 Flange Bracket (option) installed
4- φ 6.6 through
34
44.5
0.25
10
(40.5)
60
75
Datail view when flange bracket is installed (at the front)
5.25
4- φ 6.6 through
Datail view when flange bracket is installed (at the rear)
34 44.5
60
75
10
0.25 5.25
