1. Specifications Check
24
1.3 Option
1.3.1 With Brake (Model No.: B)
This is a function to hold the rod so it would not drop when the power or the servo is turned OFF in the
condition that the actuator is installed in the vertical orientation.
It is to be used to avoid damaging the attached objects by the rod being dropped.

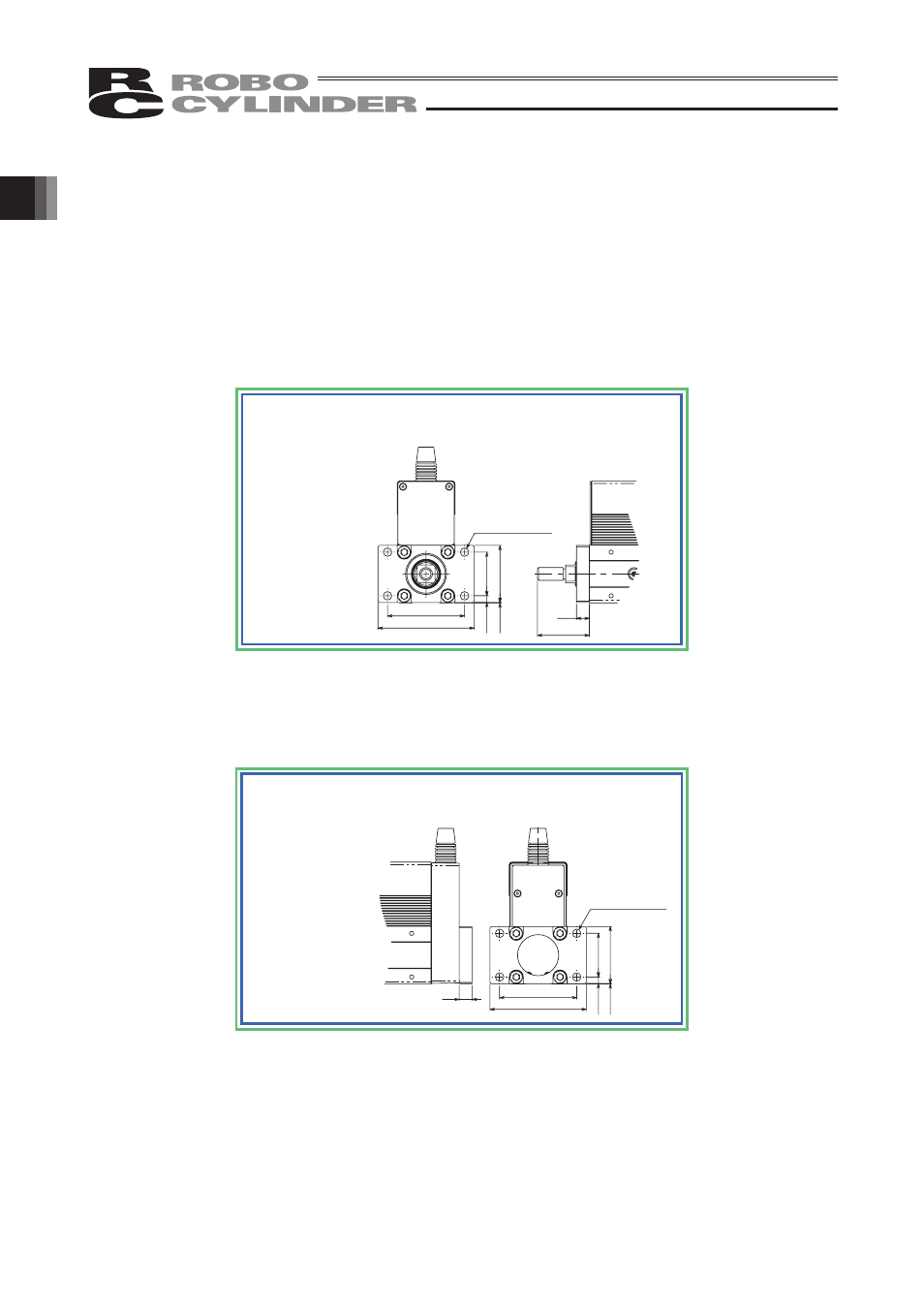

1.3.2 Flange Bracket (Front) (Model No.: FL)
This is a metal component for flange to fix the unit on the rod side.
1.3.3 Flange Bracket (Later) (Model No.: FLR)
This is a flange bracket to affix the unit body at the back (motor) side.
(40.5)
10
0.25
44.5
34
5.25
75
60
RCP2/RCA-SRA4R
Model code of single product RCP2-FL-SRA4
4-φ6.6 through
4- φ 6.6 through
0.25
44.5
34
5.25
75
60 10
RCP2 / RCA-SRA4R
Model code of single product RCP2-FL-SRA4
