3. Connecting with the Controller
32
3 Connecting with the Controller
For the controller, only the dedicated controller manufactured by our company can be used.
Using other controllers may cause a problem such as burning the product, ignition or generating heat.
Use the dedicated cable enclosed in the package when connecting the actuator and the controller.
• In applications where the cable cannot be secured, keep the bending radius of the cable to a level resulting
from natural deflection by the weight of the cable, or use a self-supporting cable hose or otherwise increase
the wiring radius, to minimize the load applied to the cable.
• Never cut and/or reconnect the cables supplied with the product for the purpose of extending or shortening
the cable length.
• Do not pull or forcibly bend the cable.
* For cable modification, please contact IAI.

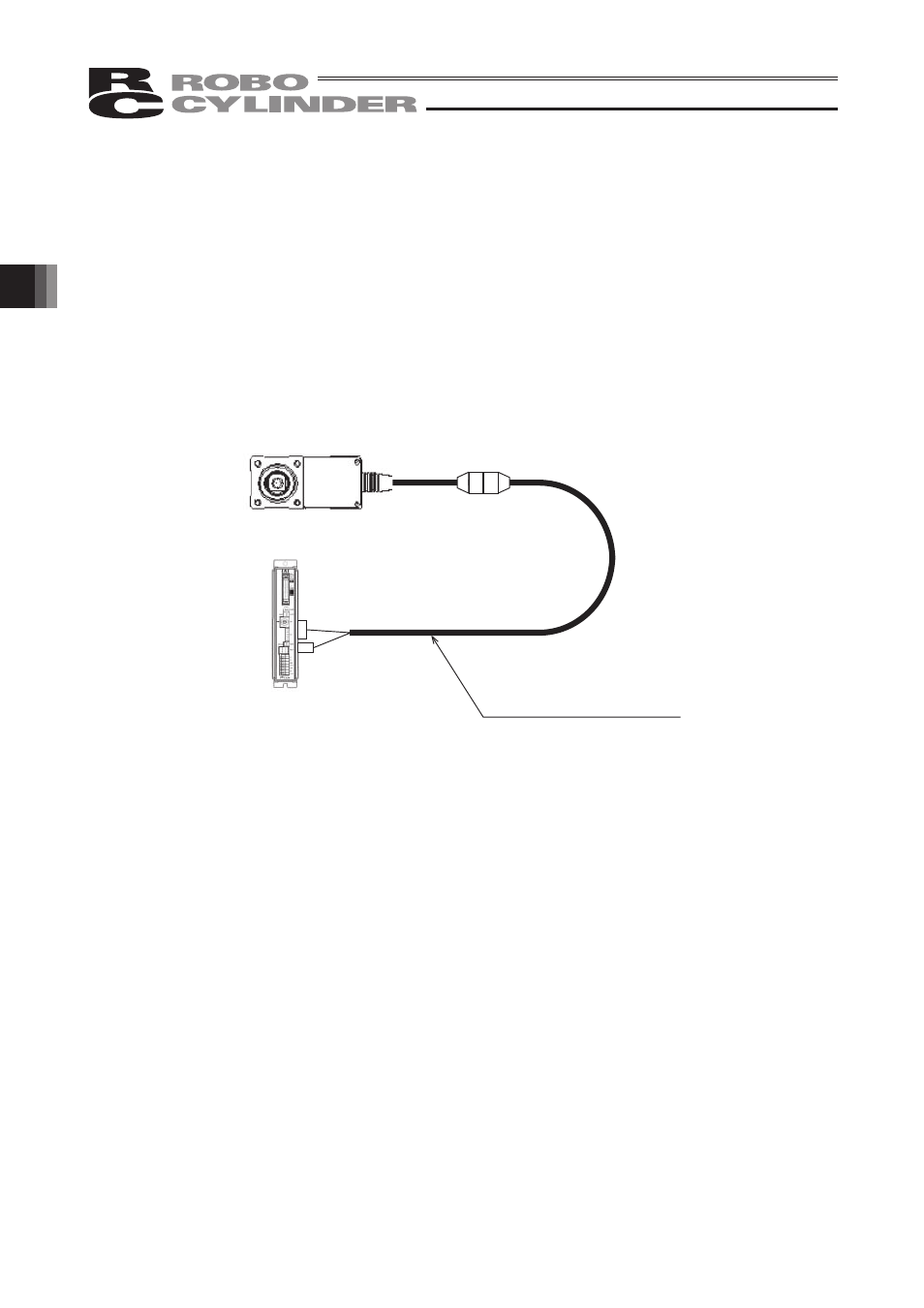

Controller
Dedicated Connection Cables
r = 84mm or more (Movable Use)
r = 42mm or more (Fixed Use)
Dedicated connection cables
• Cable for RCP2 short type: CB-PCS-MPAƑƑƑ
• Cable for RCA short type: CB-ACS-MPAƑƑƑ
(*) ƑƑƑ indicates the cable length.
010: 1000mm
030: 3000mm
050: 5000mm
