Detector Removal/
Replacement
\
ELONGATED DETECTORS NOTES:
To avoid damage in shipment or installation, the
elongated detectors are packaged separate from the
housing. Avoid subjecting detectors to mechanical
shock. Avoid supporting detector by its chain handle,
or other lifting devices, for prolonged periods of time.
When detector is properly seated on the bottom of the
housing, the hold-down clamp “tab” will engage and
the extension rod screw can be adjusted to tighten
detector assembly into housing.
1) Check NOTES below for illustrations
and cautions that apply to your specific
equipment.
2) Unscrew cap on detector housing.
3) Unscrew connector on top of detector.
4) Remove detector from housing.
5) Carefully install replacement detector in
housing.
6) Screw connector back onto detector.
7) Immediately replace detector-housing
cap.
8) Follow instruction to REFERENCE and
CALIBRATE new detector.

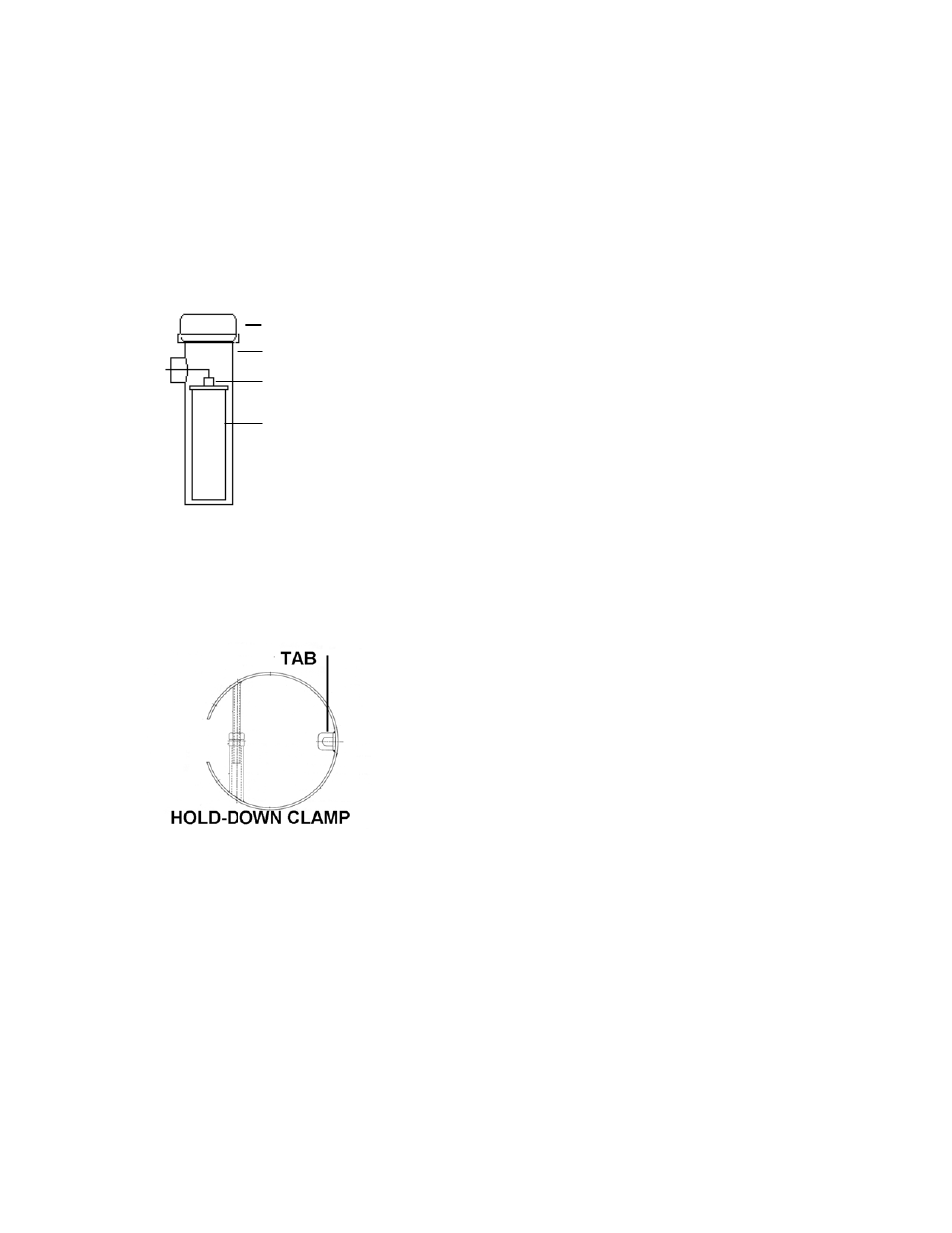

Detector Housing
Cap
Detector Housing
Cable Connector
Detector
