Ransburg RMA Indirect A11600 - Manual (Page 83)

1 A11684-00 Rear Plate (RMA-303 Indirect Charge) 1
2 79001-06 O-Ring, Solvent Proof 4
3 77506-00 Medium Air Stud, Machined 4
4 79001-05 O-Ring, Solvent Proof 4
5 77507-00 Small Air Stud, Machined 4
6 79001-39 O-Ring, Solvent Proof 6
7 79001-40 O-Ring, Solvent Proof 10
8 79001-07 O-Ring, Solvent Proof 2
9 77505-00 Large Air Stud, Machined 2
10 SSF-2052 Set Screw, #10-24 X 3/8" Long 1
11 A11694-00 Banana Plug Assembly 1
Item #
A11693 REAR PLATE ASSEMBLY - PARTS LIST (Figure 63)
Part # Description Qty

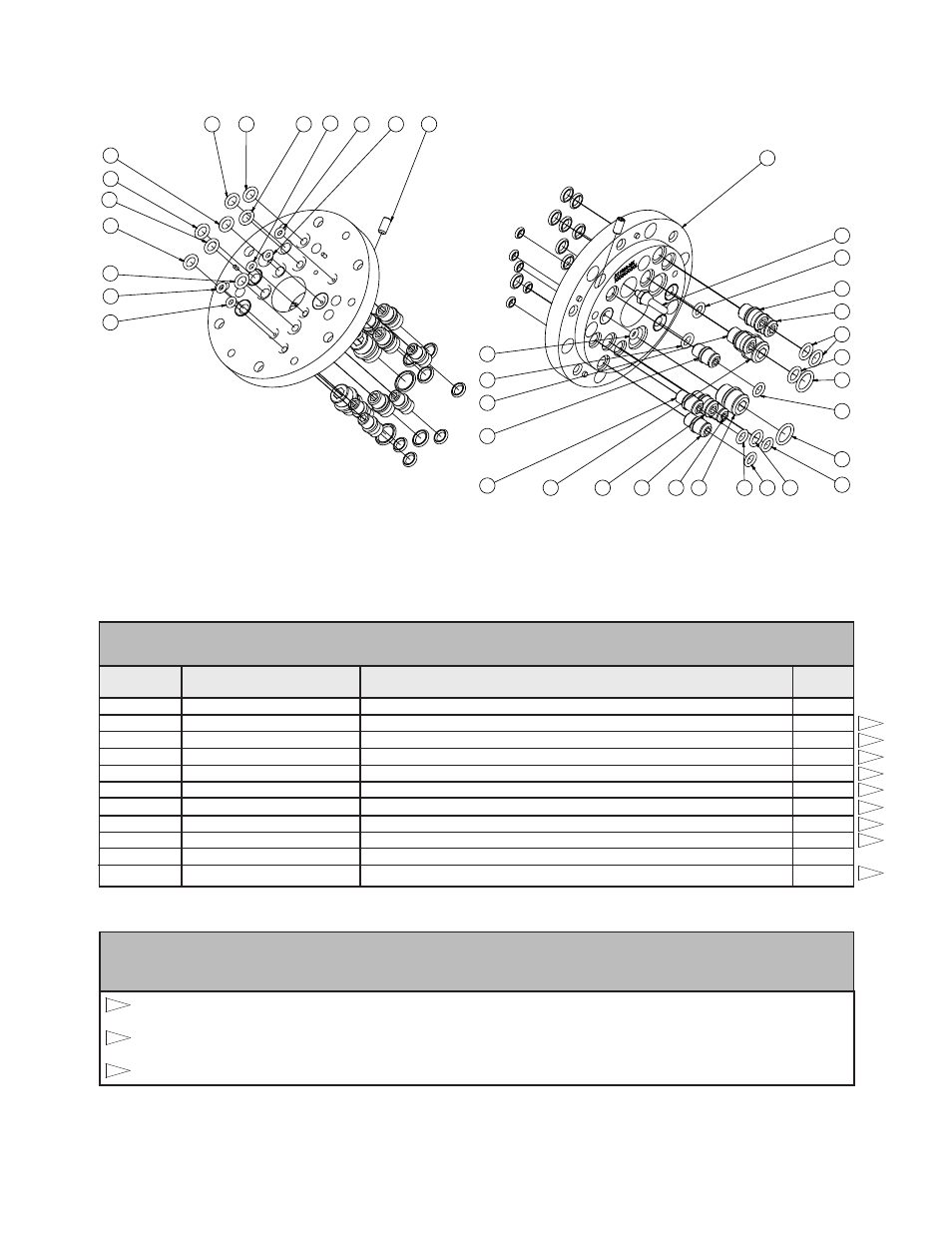

Figure 63: A11693 Rear Plate Assembly
Tighten to 5-10 lbs•in (.56-1.13 Nm) torque.
Apply a thin film of A11545 lubricant to o-rings before assembly.
Apply 7969-10 thread sealer to threads prior to assembly.
PARTS LIST BULLET DEFINITION TABLE (Figure 63)
1
7
12
5
6
5
4 2 4
8
4
3
9
3
3
3 5 5
7
9
8
2
2
4
7
7
7
7
7 7 7 10
7
6 6 6
6
6
2
1
2
1
2
2
2
1
3
3
2
1
RMA-303 Indirect Charge - Parts Identification
Ransburg
79 LN-9252-06.4
