Remove curved tube (A11691-00)
and locknut (A11318-00) to ensure proper
grooves are filled with dielectric grease
before cable installation (see Figures 16
or 49). Remove and clean any excess
grease after assembly.
NOTE
HIGH VOLTAGE
CONNECTIONS FOR
SHIELDED/NON-METALLIC
CORE CABLE - A10560-XX

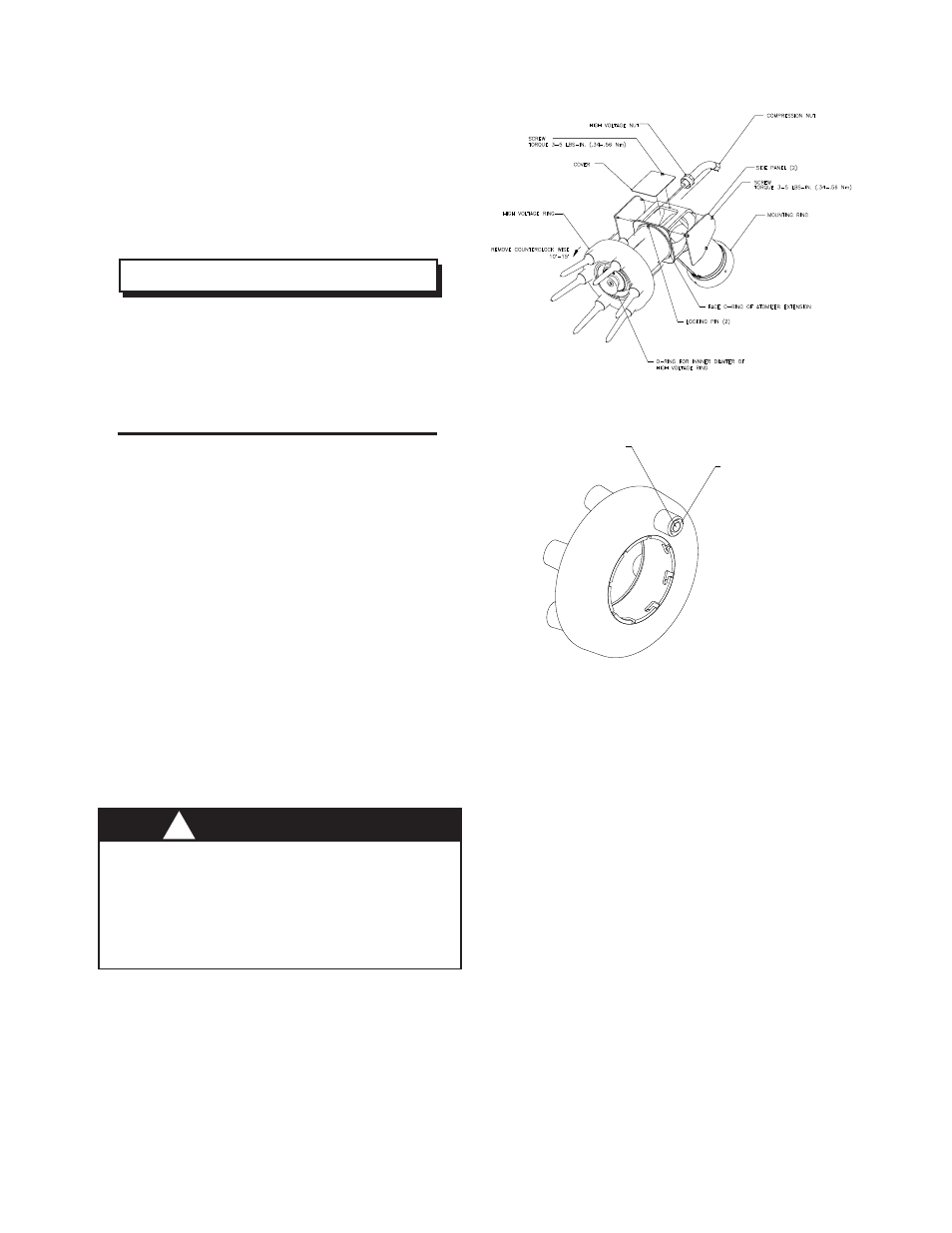

Figure 19: Atomizer Removal
High Voltage Connection -
Cascade End
Insert end of cable (end of cable with the green
grounding wire attached) thru compression nut
of output tube of RansPak ™ cascade (74793-01
or 74793-02) until it bottoms into banana jack re-
ceptacle. Tighten compression nut by hand, then
tighten 1/2 turn more with a wrench. DO NOT
over-tighten as this may damage cable.
Secure green wire with yellow stripe (attached
to high voltage cable) to any known good earth
ground, such as a water pipe, etc., using the at-
tached ring terminal.
FILL THIS CAVITY
WITH DIELECTRIC GREASE
DO NOT FILL CENTER CAVITY
WITH DIELECTRIC GREASE
> Arcing/fire hazard exists if ungrounded
metal connections (air or fluid) are used in
the spray area. Use plastic nonconductive
connections, or ensure metal connections
are at ground potential.
W A R N I N G !
RMA-303 Indirect Charge - Maintenance
Ransburg
52 LN-9252-06.4
