Ransburg Aerobell (Std.) Rotary Atomizer A12381 - Manual (Page 74)

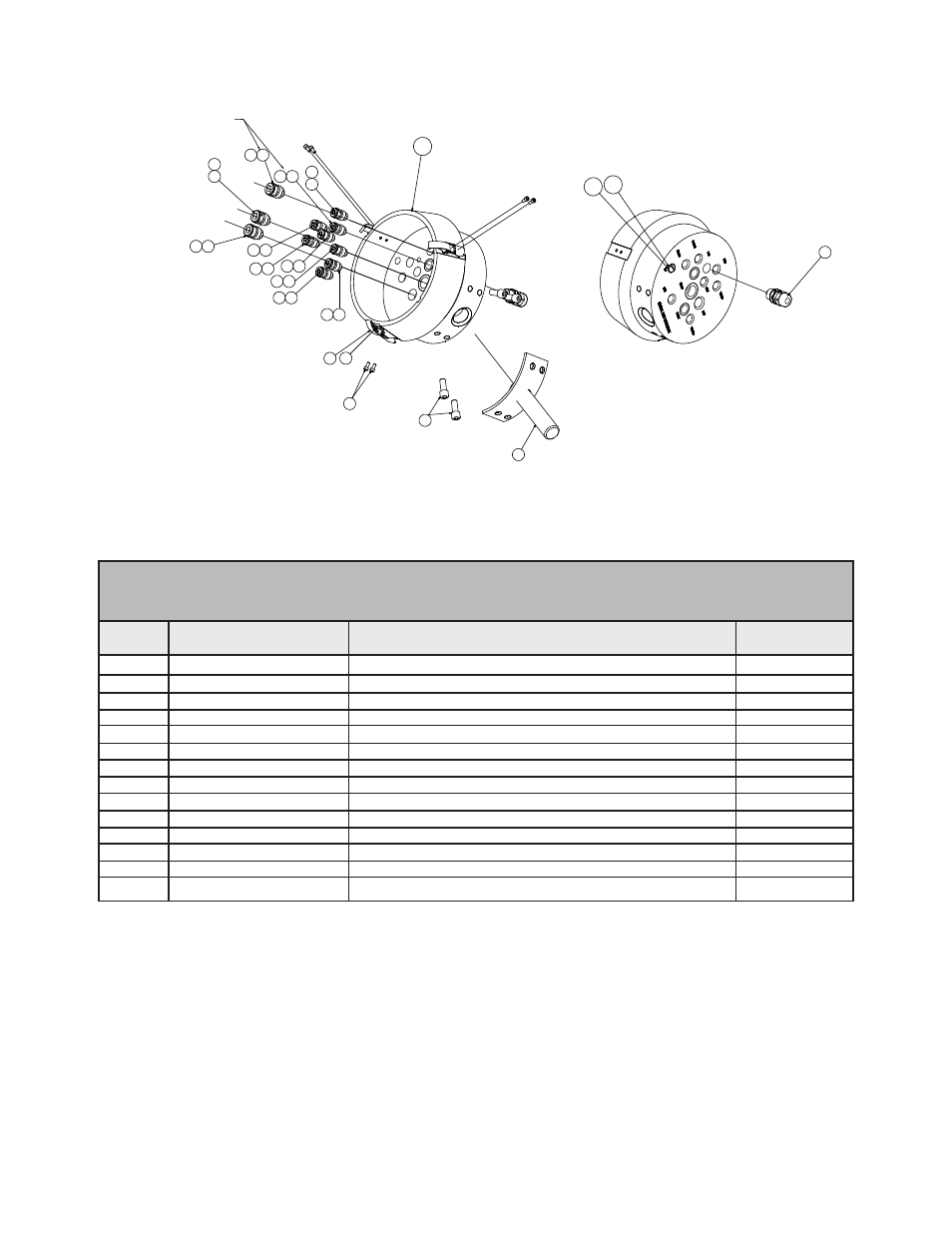

Figure 49: A12387-00 Rear Manifold - MCV Style
1 A12386-00 Rear Manifold, Classic Aerobell 1
2 SS-7936-NI Cap Screw 4
3 RPM-34 Spring 3
4 77596-01 Fitting * 8
5 77596-02 Fitting * 3
6 79001-07 O-Ring, Solvent Proof 3
7 79001-06 O-Ring, Solvent Proof 8
8 RPM-403 Stud Assembly 1
9 SSF-3115 Screw, SHCS 6
10 -- -- --
11 RPM-20 Draw Latch 3
12 SS-945-CD Screw 1
13 SSN-1615-ZN Lockwasher 1
14 20869-14 Fitting, Fiber Optic 1
Item #
A12387-00 REAR MANIFOLD - MCV STYLE -
PARTS LIST (Figure 49)
Part # Description Qty
NOTE: * Torque 77596-XX fittings to 8 lbs•in.
2
TYP. 4 PLACES
TORQUE TO 60 LBS/IN.
8
5
6
4
7
4 7
1
4 7
TYP. 3 PLACES
TYP. 3 PLACES
5 6
4 7
4 7
4 7
4 7
4 7
9
11 3
5 6
12 13
14
APPLY THIN FILM OF SSL-1001 TO O-RINGS
TORQUE FITTINGS TO 8 LBS/IN. (0.90 Nm) TYP.
Aerobell - Parts Identification
