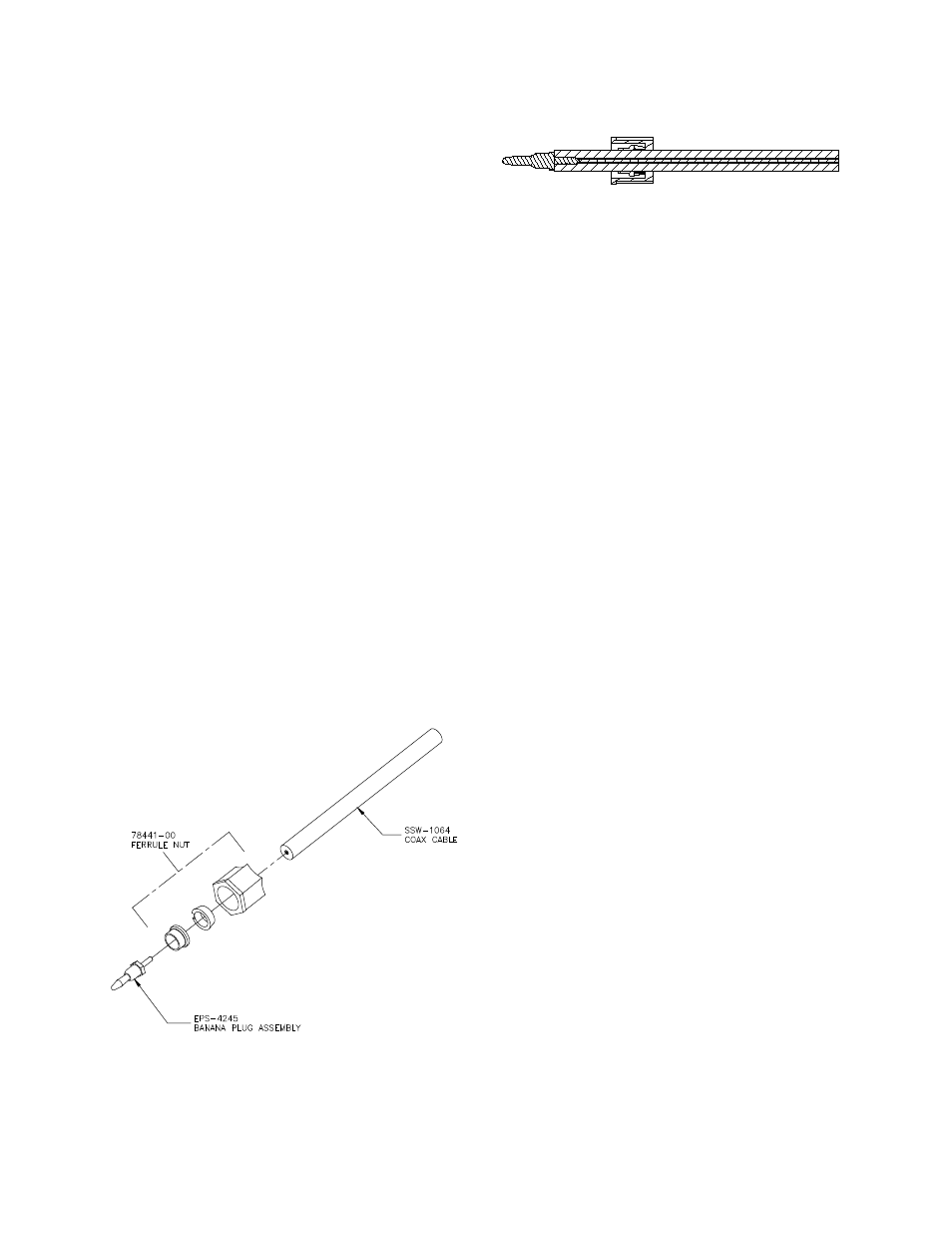

Figure 9a: High Voltage Cable Assembly
Figure 9b: Assembly Cross Section
High Voltage Cable Assembly
Instructions
(Instructions for assembling
components when using High Voltage
Cable SSW-1064)
1. Measure and cut cable to desired length. Make
sure ends are cut square.
2. Thread banana plug assembly (EPS-4245)
into the cable (SSW-1064) by hand for two turns.
Make sure to start on center of cable.
3. Take a 5/16" deep well nut driver and slip it
over the banana plug and cable. The nut driver
will act as a guide while tightening the banana
plug in place. Tighten banana plug until the hex
seats on the face of the cable. Check periodically
to ensure screw of banana plug is being driven
into center of cable.
Do this procedure for both ends of cable.:
4. After assembling, use an ohm meter to check
for continuity from one end of the cable to the
other. The reading should be 10 ohms or less.
(Refer to Figures 9a and 9b for pre-assembled
and assembled pictures.)
Aerobell High Voltage Connect at
Atomizer End (All High Voltage
Cables)
Insert high voltage cable with banana plug
assembly thru ferrule nut (78441-00) and into
high voltage connection (A10030-02 or A10030-
00) until it bottoms into hole and seats firmly.
Tighten compression nut by hand, then tighten
1/2 more turn with a wrench. Pull on cable to
ensure a secure fitting. If cable is loose and can
be pulled free, then reinsert cable and re-tighten
as discussed previously.
Aerobell - Installation
