Quick Change Aerobell Removal
1. Prior to removing the quick change assembly,
flush the paint feed line and bell with solvents. If
flushing is not possible and paint is in the atomizer
feed tube, place a rag over the bell end of the
atomizer and proceed to step 2.
2. Unlatch three draw latches while carefully
supporting the shroud.
3. Pull quick change rotary atomizer away from
the manifold. Do not allow any paint to drip from
the manifold into the air ports on the back of the
air turbine.
>
Be sure to carefully hold the shroud
while unlatching the three (3) latch butttons
that secure the quick change assembly into
the manifold. The quick change assem-
bly weighs approximately 7 lbs. and may
be dropped and damaged if not properly
supported.
Quick Change Aerobell Rotary
Atomizer Reassembly
1. Re-assemble the shroud, atomizer bell, shaping
air ring and cap onto the quick change assembly
by reversing the previous instructions.
2. Before installing the quick change assembly
back into the manifold, check the condition of the
four (4) o-rings located on the four (4) air fittings
of the manifold. If any are damaged or missing,
replace them.
3. Check the condition of the o-ring (79001-05),
located on the fluid inlet of the fluid tubes on
the rear of the turbine. Replace if damaged or
missing. Lightly lubricate the 79001-05 o-ring
with Petrolatum jell.
4. Install the quick change assembly into the
manifold. Align properly (it is easiest to align the
shaping air fitting which is furthest from the center
line). Press the quick change assembly straight
forward as much as possible (don't force it on).
5. Latch the three (3) latch button assemblies,
which will draw the quick change assembly fully
into place in the manifold.

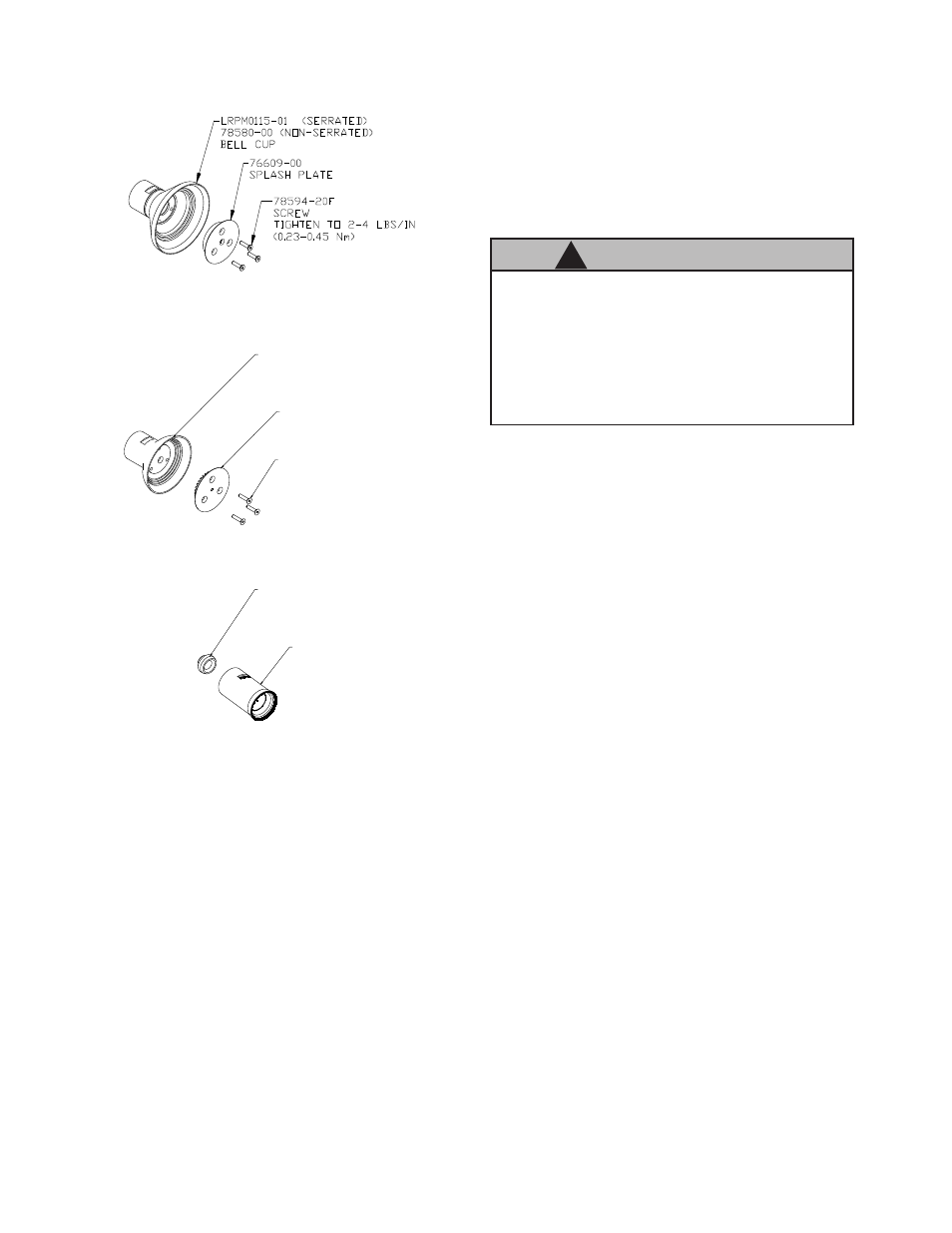

LRPM-4001-01 Serrated and LRPM-4001-02
Non-Serrated Bell Cup Assembly (70mm)
RPM-457-1 Bell Cup Assembly (57mm)
Figure 21: Bell Cup Assembly
RPM-452-1 Bell Cup Assembly (30mm )
C A U T I O N
!
78594-16F
SCREW
TIGHTEN TO 2-4 LBS/IN
(0.23-0.45 Nm)
76610-01
SPLASH PLATE
RPM-104-1
BELL CUP
RPM-101-1
BELL CUP
RPM-76
SHAFT PLUG
Aerobell - Maintenance
