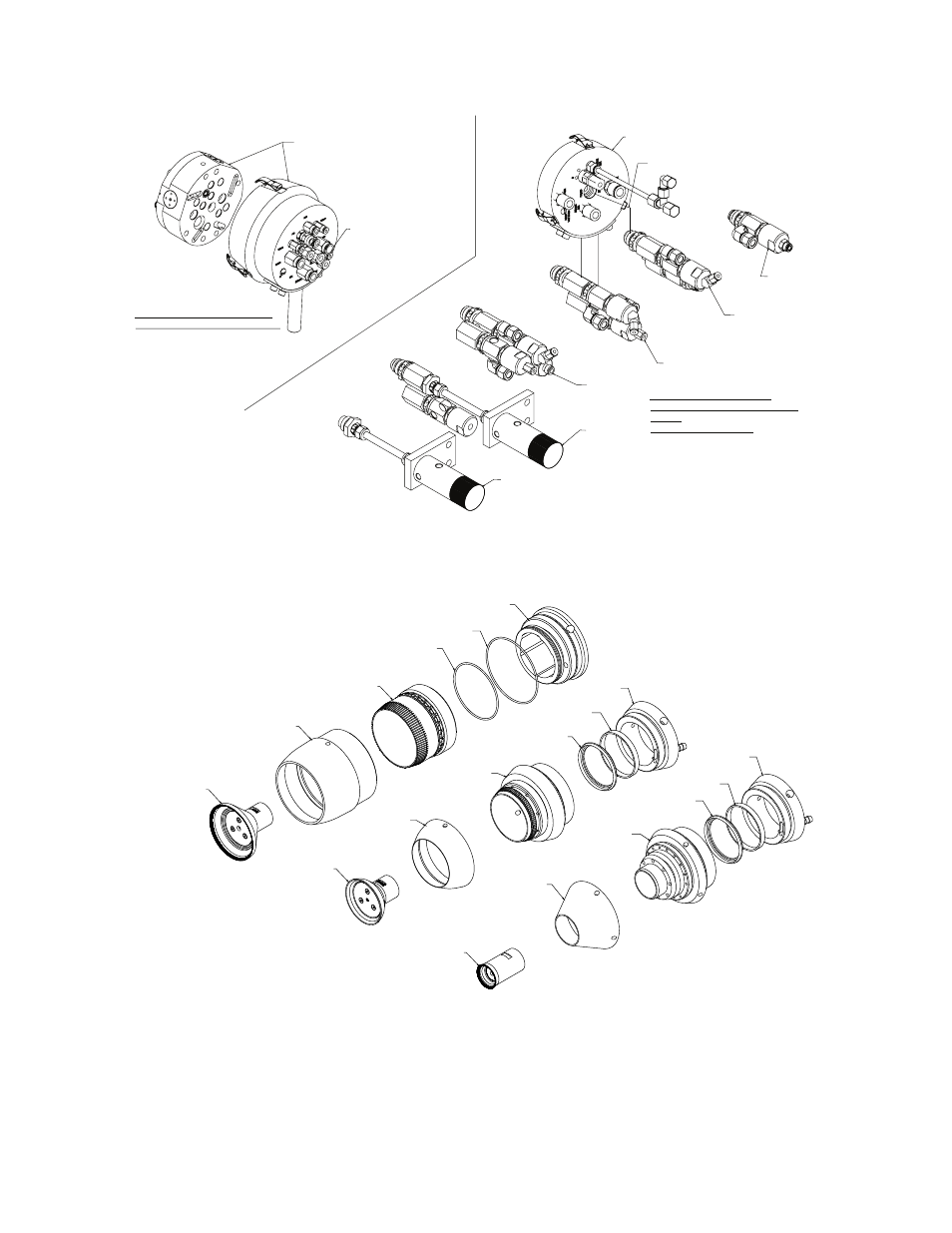

Figure 46: Rear Manifold and Fittings

Figure 47: Shape Air And Bell Cup Configurations

70 MM

(TABLE A, DASH NO. 3)

PART NUMBERS A,B,C,& H

30 MM

(TABLE A, DASH NO. 1)

PART NUMBERS A,B,C, & H

57 MM

(TABLE A, DASH NO. 2)

PART NUMBERS A,B,C, & H

LRPM4001-01

78297-00

78298-00

RPM-457-1

RPM-452-3

78300-00

RPM-5

RPM-4

RPM-2

SSG-8166

RPM-402

RPM-80

RPM-79

RPM-2

SSG-8166

RPM-402

78435-00

78436-00

SEE TABLE "C"

INTERGRATED VALVE MANIFOLD

AND MOUNTING MANIFOLD STYLE

ITEMS "E" AND "F"

SIZES ITEM "G"

SEE TABLE "C"

ITEM "E"

MOUNTING MANIFOLD WITH

OPTIONAL VALVE CONFIGURATION

STYLES

SEE ITEM "F" TABLE "C"

SEE TABLE "D"

METRIC OR FRACTIONAL

ALL VALVE ASSEMBLIES PLUG INTO THIS PORT AS SHOWN

SEE TABLE "C"

REF. A12382

SEE TABLE "C"

REF. A12383

SEE TABLE "C"

REF. RPM-409

SEE TABLE "C"

REF. RPM-408

SEE TABLE "C"

REF. RPM-416

SEE TABLE "C"

REF. RPM-415

Aerobell - Parts Identification

LN-9264-08.2
