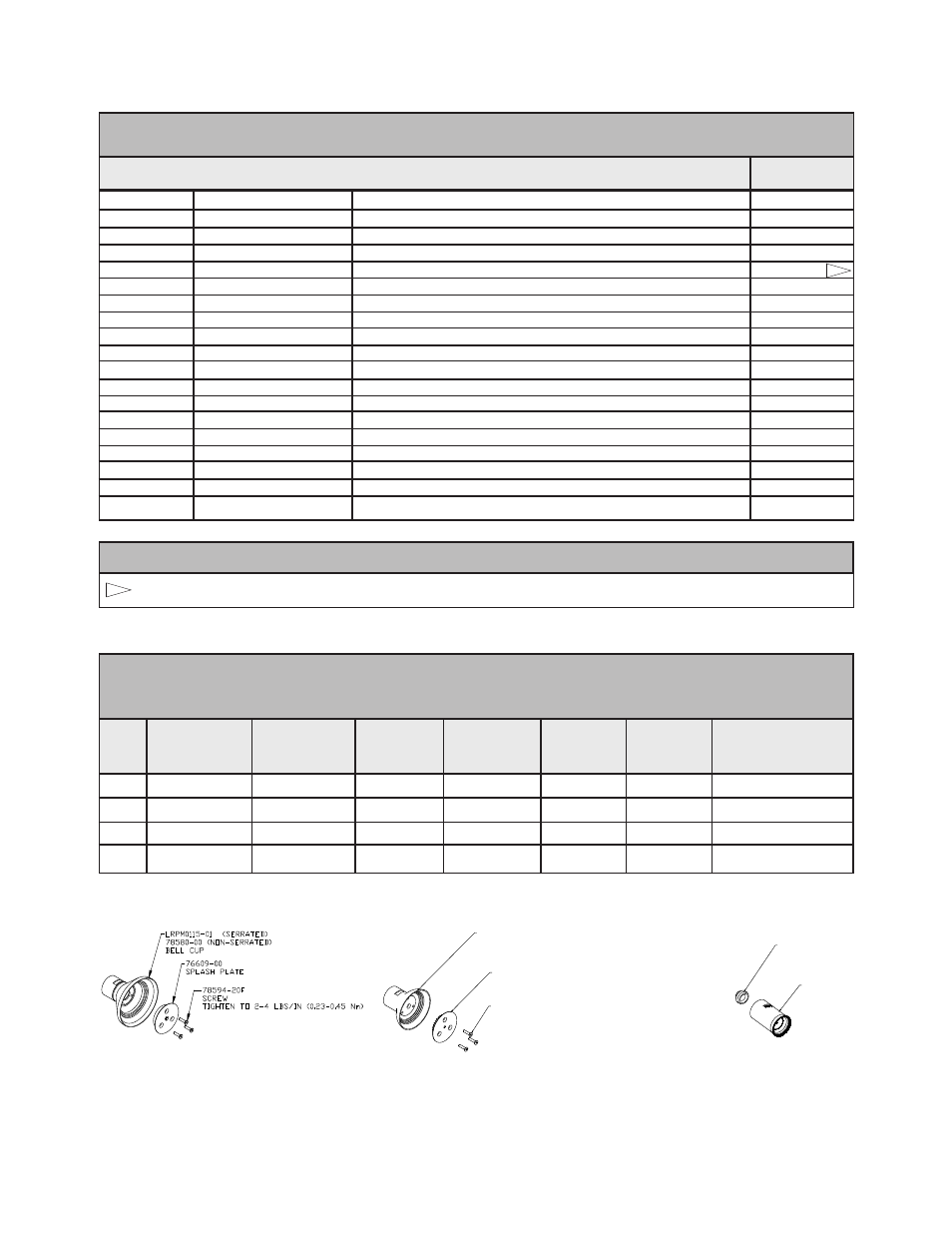

Page 70: Aerobell - parts identification
Item # Part #
Apply 7969-05 purple threadlock to threads.
PARTS LIST BULLET DEFINITION TABLE (Figure 44)
1
Table A - "A"
Bell Cup
1
2
RPM-3
Shroud
1
3
Table A - "B"
Shaping Air Cap
1
4
Table A - "C"
Shaping Air Ring
1
5
SSF-317
Screw, Socket Head Cap, #10-32 X 3/8" Lg.
3
6
SSF-3137
Screw, Socket Head Cap, M3 X .5" Pitch X 8mm Long
4
7
RPM-401-1
Air Bearing Turbine
1
8
H-2338
Tubing, Polyethylene, 3/8" OD X 1/4" ID
Table C - "J"
9
Table B - "D"
Fluid Tube Assembly
1
10
79001-05
O-Ring, Solvent Proof
1
11
Table C - "G"
Mounting Ring Assembly
1
12
SS-7936-NI
Cap Screw
3
13 RPM-14
Spacer
3
14
RPM-21
Keeper Button
3
15
SSF-4240
Screw, Flat Head, #4-40 X 1/2" Lg., Steel
3
16
Table C - "F"
Valve Manifold
1
17
Table A - "H"
Manifold Part
1
18 ----
----
--
19
Table C - "E"
Valve Assembly Configuration Type
1
A12381 AEROBELL - PARTS LIST (Figure 44)
Description
Qty
00
01
02
03
TABLE A - BELL CUP SIZE
Dash
#
"A"
Bell Cup
----
RPM-452-3
RPM-457-1
LRPM-4001-02
----
RPM-80
RPM-4
78297-00
----
SSG-8166
SSG-8166
78436-00
----
RPM-79
RPM-5
78298-00
"B"
Shape Air Cap
"C"
Shape Air Ring
"H"
Manifold Part
----
RPM-2
RPM-2
78435-00
"H"
Manifold Part
----
RPM-402
RPM-402
78301-00
"H"
Manifold Part
----
30mm Bell Cup
57mm Bell Cup
70mm Bell Cup
Description
Figure 45: Bell Cup Assembly
78594-16F
SCREW
TIGHTEN TO 2-4 LBS/IN
(0.23-0.45 Nm)
76610-01
SPLASH PLATE
RPM-104-1
BELL CUP
RPM-457-1
57MM BELL CUP
ASSEMBLY
LRPM-4001-01 SERRATED
LRPM-4001-02 NON-SERRATED
70MM BELL CUP ASSEMBLY
RPM-452-1
30MM BELL CUP
ASEMBLY
RPM-101-1
BELL CUP
RPM-76
SHAFT PLUG
6
6
Aerobell - Parts Identification
