FIBER OPTIC REMOVAL/
REPLACEMENT
(77602 Valve Manifold Assembly)
To remove the fiber optic sensor, grasp the ex-
posed end and turn counter-clockwise. Be careful
not to lose the o-ring on the opposite side.
To replace, insert into the cavity and turn clockwise
until it stops. The sensor should be flush on the
opposite side when correctly installed. Do not use
pliers to tighten, damage to sensor may occur,
hand tighten only.

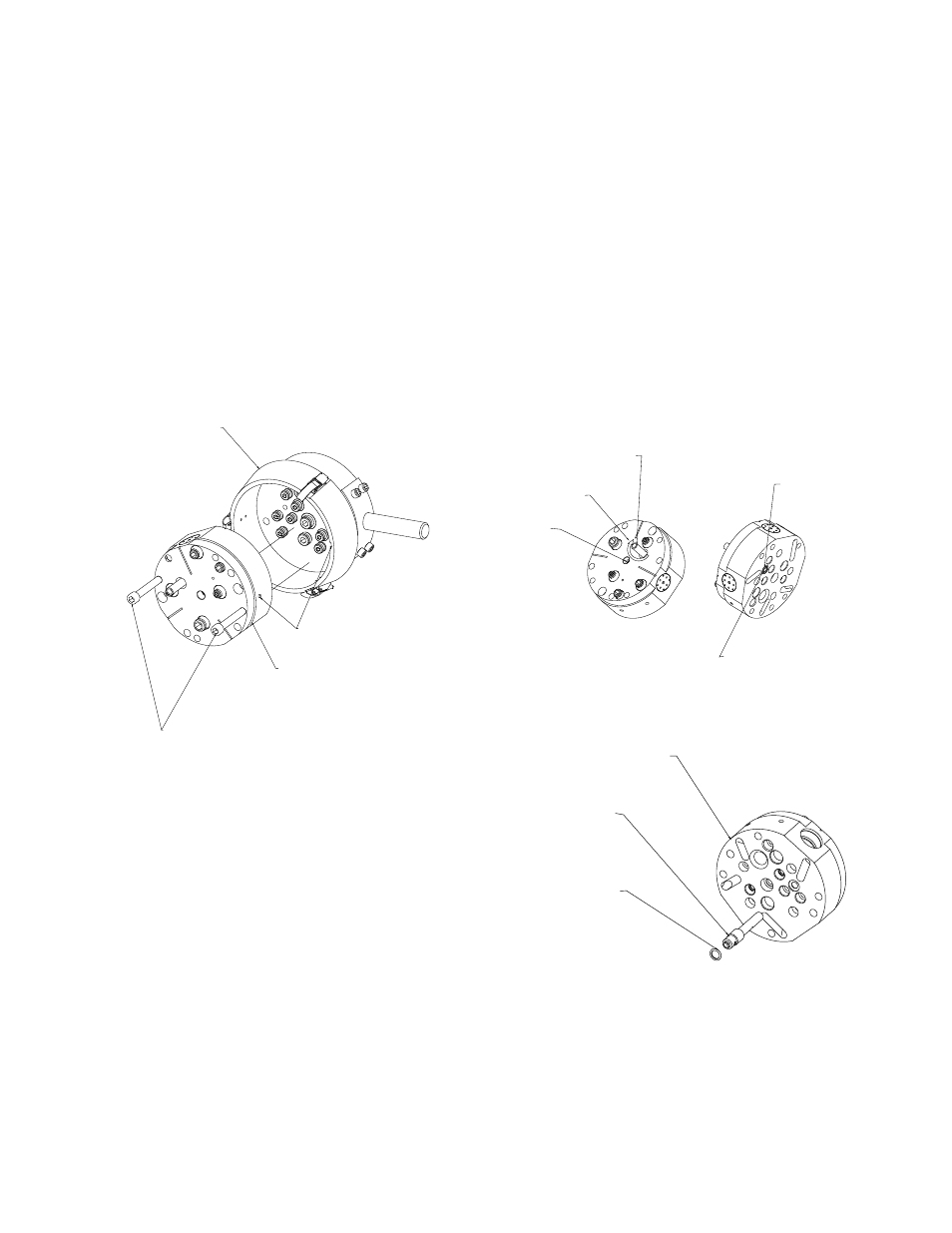

Figure 37a: Fiber Optic Removal/ Replacement
Figure 37b: Fiber Optic Removal/ Replacement
VALVE MANIFOLD
ASSEMBLY/REMOVAL
(MCV STYLE)
When removing the quick-disconnect aomizer,
the valve manifold assembly may remain in the
mounting manifold. To remove, thread two (2)
8532-64C bolts into the threaded holes, 180° apart
from each other. Pull valve manifold straight out.
(5/16-18 threaded bolts or M8 X 1.25" bolts are
sufficient).
Figure 36: Valve Manifold Assembly/Removal
(MCV Style)
MOUNTING MANIFOLD
VALVE MANIFOLD
(MCV STYLE)
ALIGNMENT PIN AND GROOVE
8532-64C
VALVE MANIFOLD
REMOVAL BOLTS
FIER OPTIC TO BE FLUSH
WITH BACK SURFACE WHEN
FULL INSTALLED
79001-14
O-RING
77591-00
FIBER OPTIC SENSOR
TIGHTEN CLOCKWISE
TO INSTALL
79001-04
O-RING
VALE MANIFOLD
79001-14
O-RING
77591-00
FIBER OPTIC SENSOR
