57mm and 30mm Styles
Remove the front cover of the turbine body by
removing the four (4) socket head cap screws with
a 2.5mm hex key wrench. Remove white colored
seal and blue colored ring. Remove three (3)
socket head cap screws from shape air manifold
with a 3/16-inch hex key wrench. slide manifold
off front of turbine body.
>
Plastic shape air tube must be cut off be-
fore removal.
NOTE
Install the manifold by lining up the shaping air
barb fitting with the shaping air tube. Install the
plastic tubing onto the barbs of the fitting. Slide
the manifold into position by twisting until screw
holes line up. Install and tighten screws to a final
torque of 10-15 lbs•in (1.13-1.70 Nm). Install blue
colored ring over front of turbine body. Place white
colored seal between turbine body and turbine
front cover plate. Install the four (4) screws to a
final torque of 3-5 lbs•in (0.23-0.56 Nm).
>
White colored plastic ring should be free
to rotate, do not crush or damage edge.
NOTE

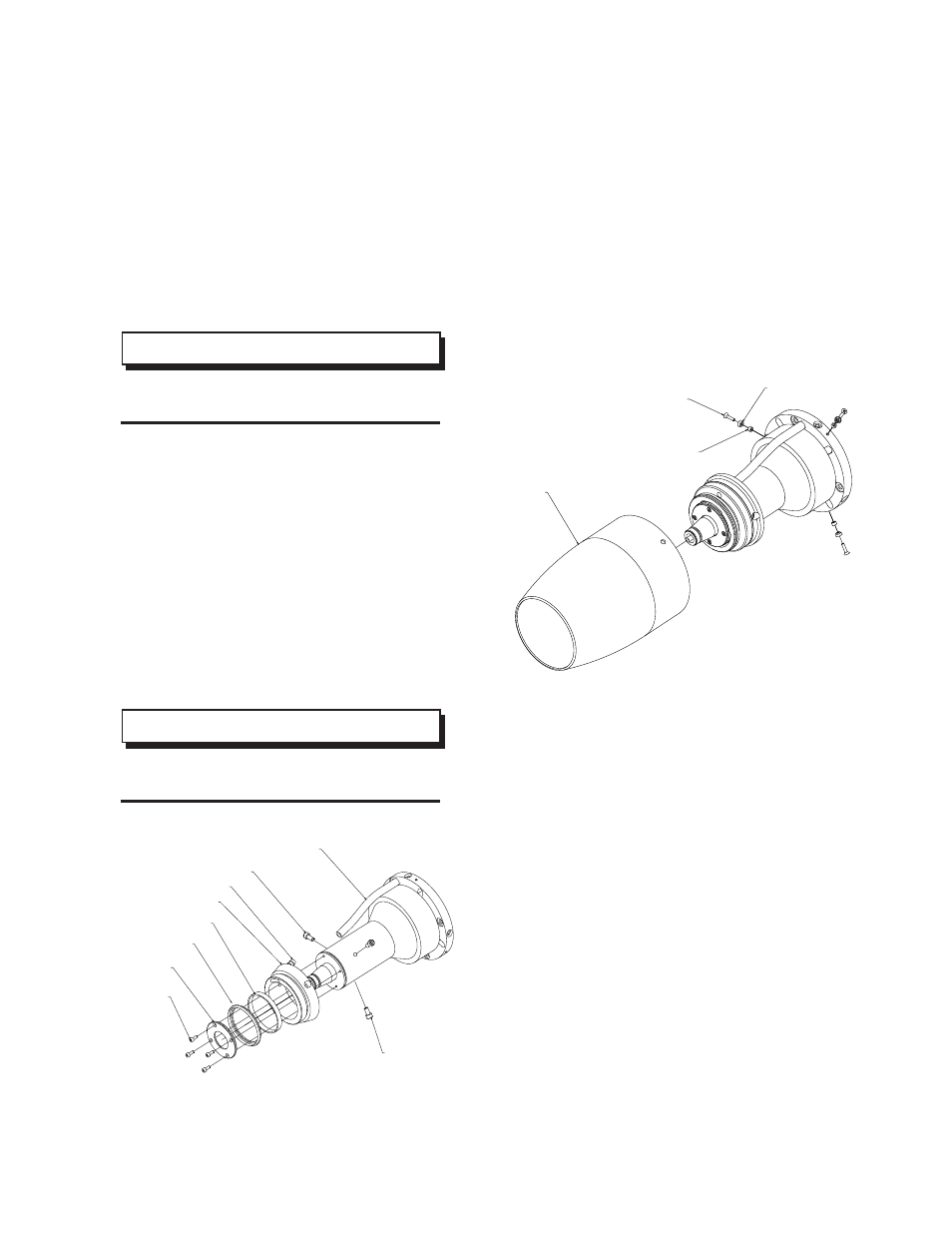

Figure 41: 57mm and 30mm
Shape Air Manifold
SHROUD REMOVAL/
REPLACEMENT
Remove the three (3) screws, spacers, and keeper
buttons by using a 1/16-inch hex key wrench.
To replace, align holes of shroud with screw holes
of the mounting ring. Install spacer into shroud hole
followed by the keeper button and screw. Tighten
screw to a final torque of 1-3 lbs•in (0.11-0.34 Nm).
Figure 42: Shroud Removal
TORQUE TO 3-5 LBS/IN
(.34-.56Nm)
TURBINE FRONT COVER
SHAPE AIR MANIFOLD
TORQUE TO 10-15 LBS/IN
(1.13-1.70 Nm)
BLUE COLORED RING
WHITE PLASTIC RING
TORQUE TO 10-15 LBS/IN
(1.13-1.70 Nm)
BARB FITTING FOR SHAPE AIR
SHAPE AIR TUBE
SPACER
KEEPER BUTTON
SCREW TORQUE TO
1-3 LBS/IN (0.11-0.34 Nm)
RPM-3 SHROUD
