Vector R Series Classic Applicators - Parts Identification
54
Ransburg
AH-06-02.12

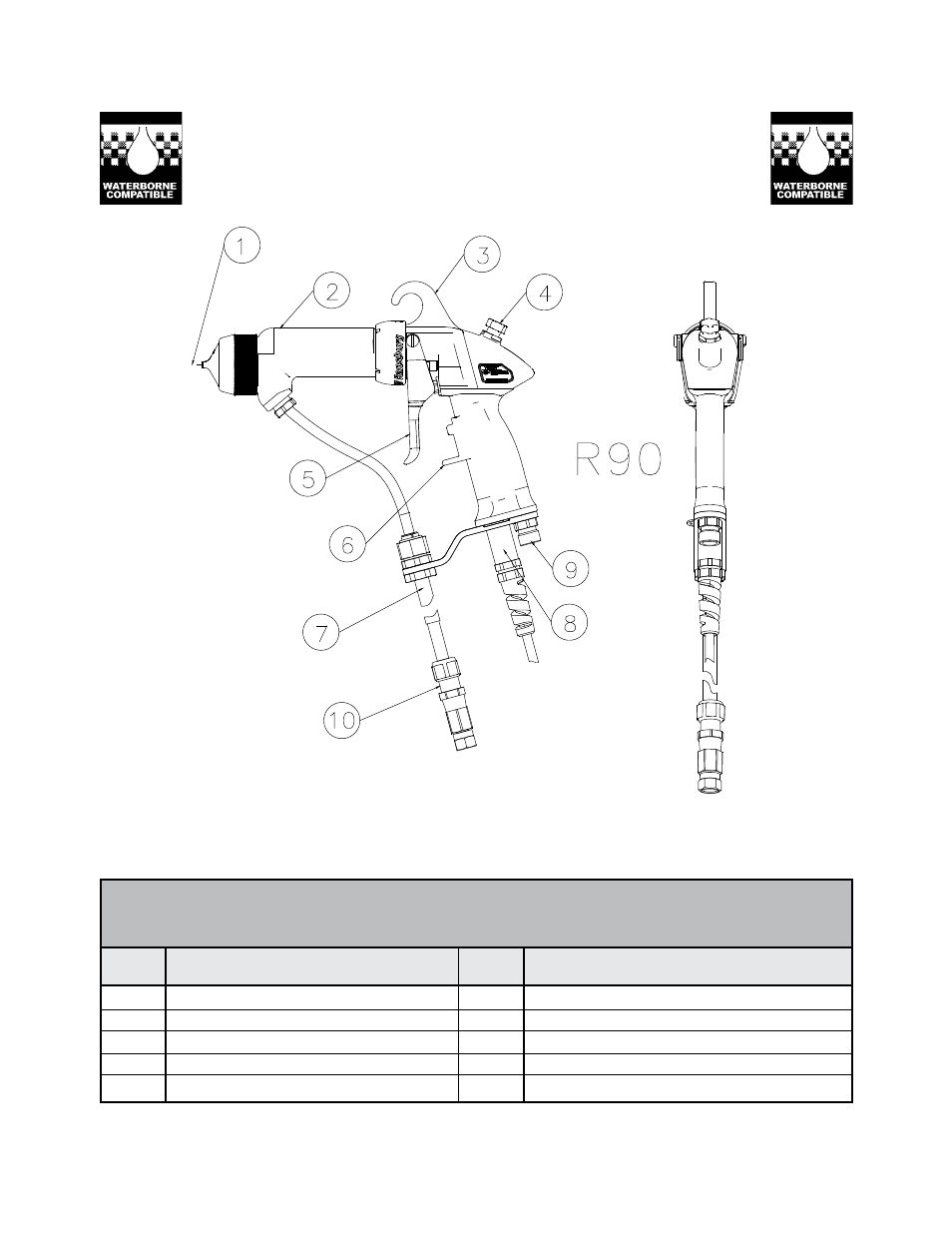

Figure 31: R90 Classic Waterborne Electrostatic Spray Applicator Features
1
2
3
4
5
No.
Description
Needle/Electrode
Barrel
Replaceable Hook
Fan Air Adjust
2-Finger/4-Finger Trigger
R90 CLASSIC WATERBORNE ELECTROSTATIC SPRAY
APPLICATOR FEATURES
6
7
8
9
10
No.
Description
Adjustable Trigger Shelf
Waterborne Hose
High Voltage Cable Connection
Air Hose Connection
Waterborne Source Connection
