Vector R Series Classic Applicators - Installation
20
Ransburg
AH-06-02.12
† For complete information on the 9060
Power Supply, see CP-12-01.
HIGH VOLTAGE CABLE
Position the spray applicator in the spray area and
route the high voltage cable to the power supply.
The cable should be routed so that it is not dam-
aged by foot and vehicle traffic and also so that
it is not close to areas of high temperature (129°
F+). The operator should have free movement
of the applicator and all bend radii of the cable
should not be less than 6-inches (15cm). Con-
nect the high voltage cable to the power supply
and tighten the retaining nut and set screw. If
during the routing of the high voltage cable it is
required to remove it from the spray applicator,
care should be taken when reinstalling so that
the clip retaining the high voltage cable in the
applicator is completely engaged and the high
voltage cable retention screw is tightened to 5-7
lbs•in (.6-.8 Nm) (see Figure 5).

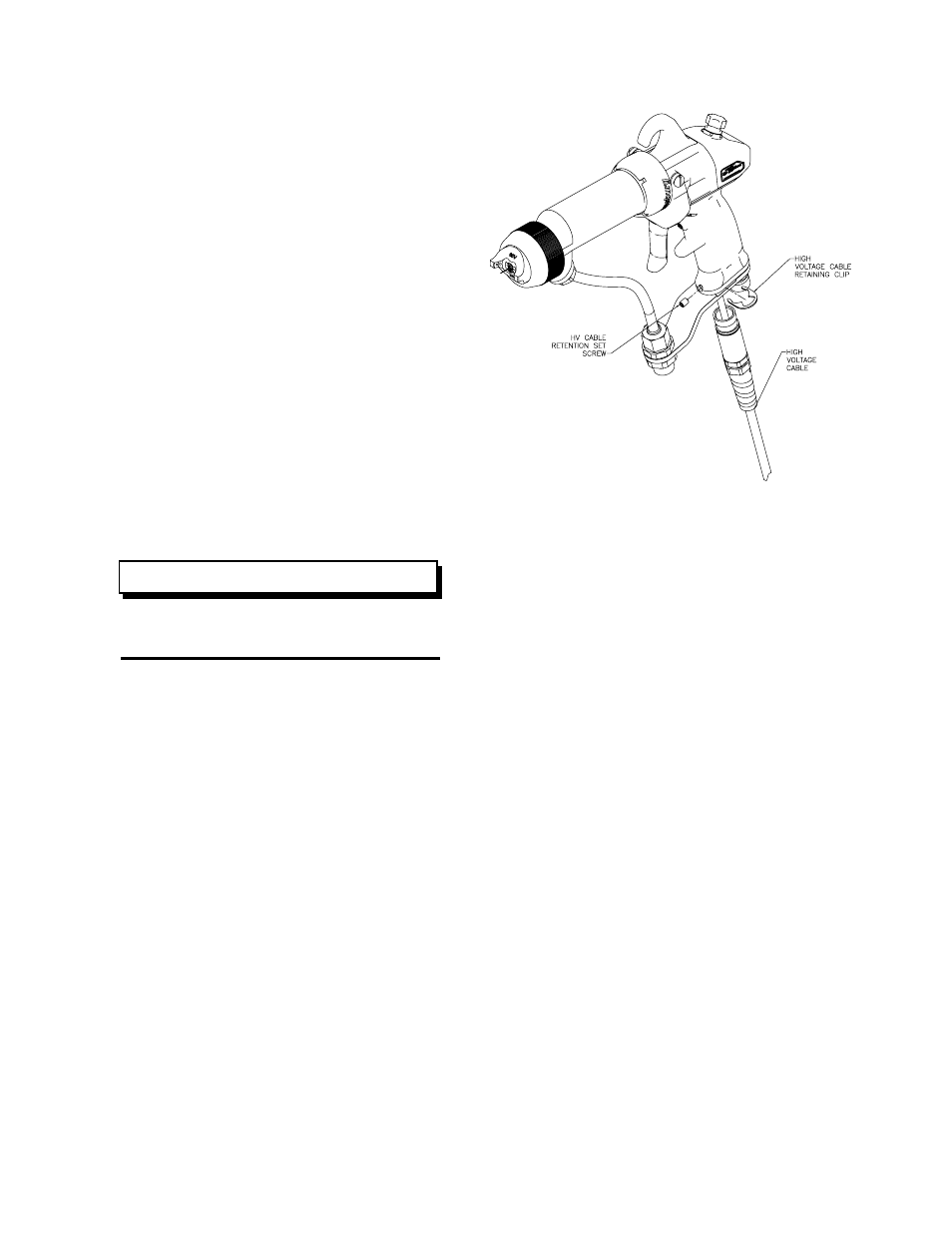

Figure 5: High Voltage Cable Removal
and Installation
NOTE
