Vector R Series Classic Applicators - Atex/FM
12
Ransburg
AH-06-02.12

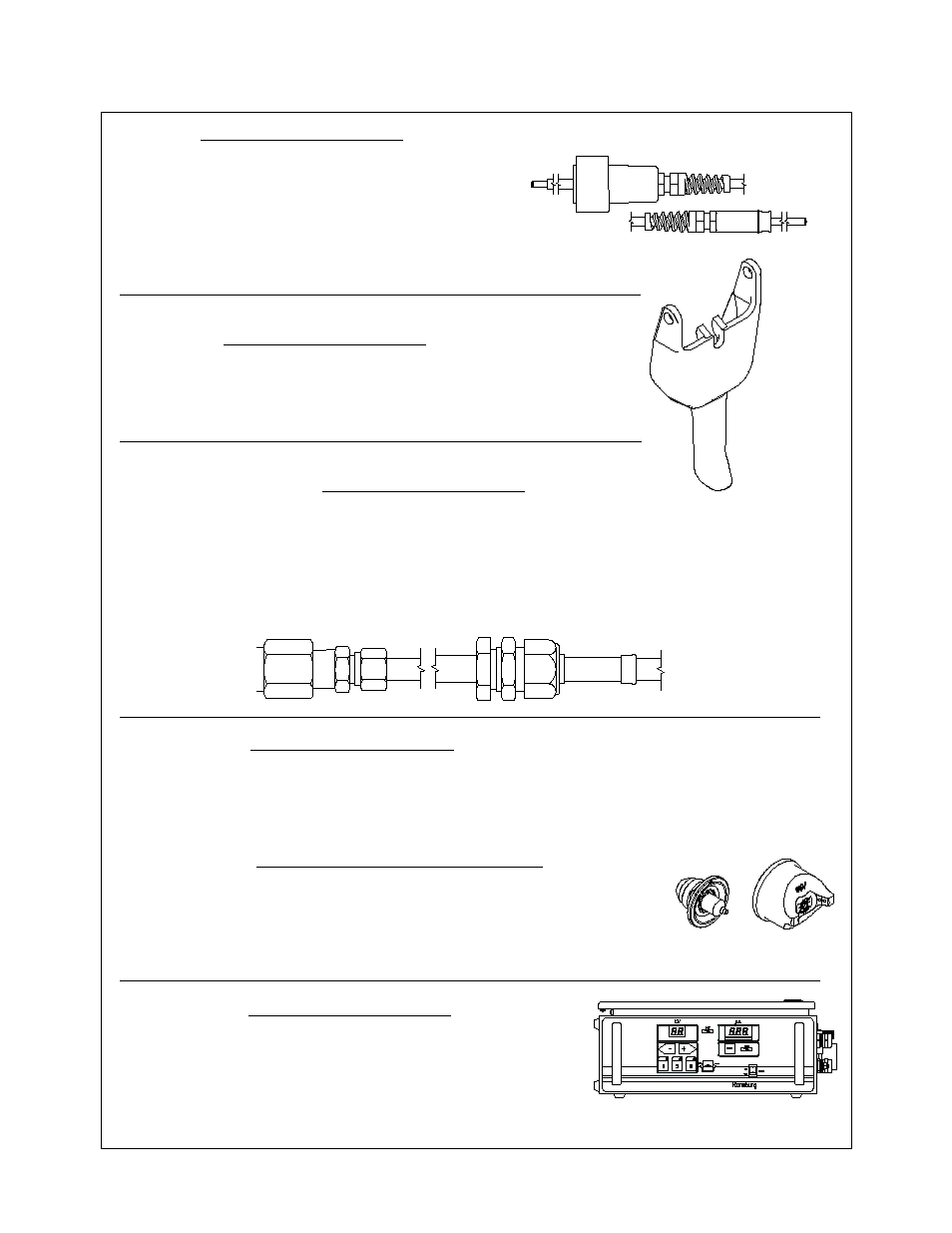

APPROVED SPARE FLUID NOZZLES LIST
79377-46 (1.06mm ID, STD. WEAR), 79377-47 (.71mm ID, STD. WEAR),
79377-48 (1.19mm ID, STD. WEAR), 79377-144 (1.40mm ID, HIGH WEAR),
79377-145 (1.78mm ID, HIGH WEAR), 79377-146 (1.06mm ID, HIGH WEAR),
79377-147 (.71mm ID, HIGH WEAR), 79552-244 (1.40mm ID, STD. WEAR),
79552-344 (1.40mm ID, HIGH WEAR), 79552-345 (1.78mm ID, HIGH WEAR)
OPTION "C" DESIGNATIONS
FLUID HOSE LENGTH & TYPE
0 FOR NO FLUID HOSE
1 FOR WATERBORNE FLUID HOSE-1/4" ID X 10m (30ft)-PART NUMBER: 79525-10
2 FOR WATERBORNE FLUID HOSE-3/16" ID X 10m (30ft)-PART NUMBER: 79524-10
3 FOR WATERBORNE FLUID HOSE-1/4" ID X 15m (50ft)-PART NUMBER: 79525-15
4 FOR WATERBORNE FLUID HOSE-3/16" ID X 15m (50ft)-PART NUMBER: 79524-15
CONFIGURATION DWG. 79950 REV B
OPTION "B" DESIGNATIONS
TRIGGER TYPE
2 FOR TWO FINGER TRIGGER-PART NUMBER: 79325-02
4 FOR FOUR FINGER TRIGGER-PART NUMBER:79325-04
OPTION "D" DESIGNATIONS
SPRAY TECHNOLOGY
0 FOR STANDARD SPRAY, 65V CAP, #44 NOZZLE-PART NUMBER: 79374-65 & 79377-44
1 FOR STANDARD SPRAY, 65V CAP, #45 NOZZLE-PART NUMBER: 79374-65 & 79377-45
2 FOR TRANSTECH SPRAY, 122V CAP, #245 NOZZLE-PART NUMBER: 79374-122 & 79552-245
3 FOR ROUND SPRAY-PART NUMBER: 79962-00 & 79959-00
OPTION "A" DESIGNATIONS
CABLE LENGTH
0 FOR NO CABLE
1 FOR 10 METER CABLE-PART NUMBER: 79519-10
2 FOR 15 METER CABLE-PART NUMBER: 79519-15
3 FOR 20 METER CABLE-PART NUMBER: 79519-20
4 FOR 25 METER CABLE-PART NUMBER: 79519-25
5 FOR 30 METER CABLE-PART NUMBER: 79519-30
OPTION "E" DESIGNATIONS
CONTROL UNIT
0 FOR NO CONTROL UNIT
1 FOR DOMESTIC SALES, 110/120 V-PART NUMBER: 80130-511
2 FOR EUROPE, 240V-50/60 Hz -PART NUMBER: 80130-512
3 FOR CHINA, 240V-50/60 Hz -PART NUMBER: 80130-513
