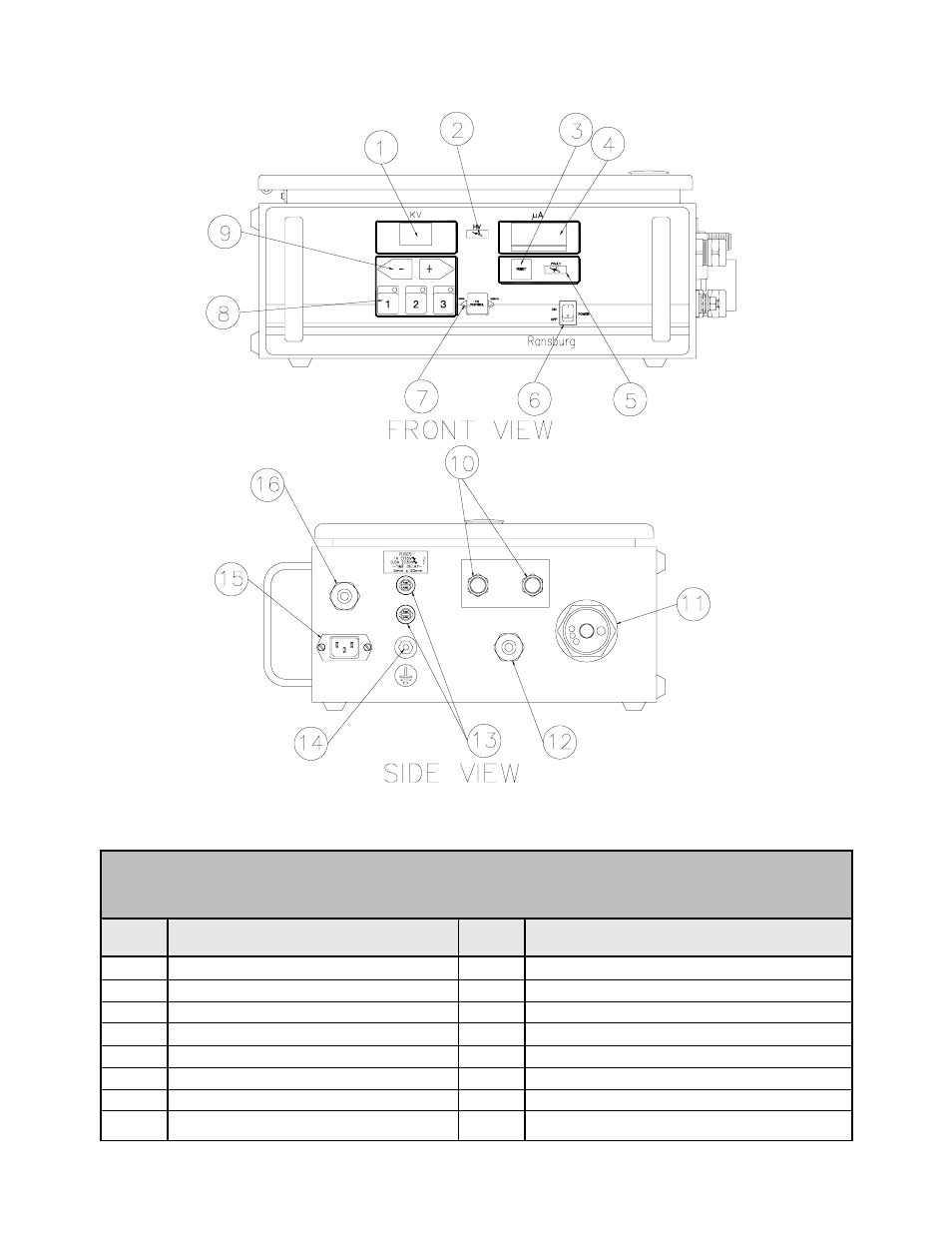

Figure 2: 80130-XXX 9060 Power Supply Features
1
2
3
4
5
6
7
8
No. Description
kV Meter
High Voltage On Indicator
Reset Button
µA Meter
Fault Indicator
On-Off Switch
Local Remote Mode Indicator
"One Touch" kV Setpoint Button
80130-X1X 9060 POWER SUPPLY FEATURES
9
10
11
12
13
14
15
16
No. Description
kV Setpoint/Adjust Buttons
Air Flow Switch Connections
High Voltage Cable Connector
Standard I/O Connector
Fuses
Ground Lug
AC Inlet Receptable
Interlock I/O Connector
