Vector R Series Classic Applicators - Parts Identification
51
Ransburg
AH-06-02.12
1 78627-04 Shaft Assembly, 2-Piece Needle, R90 1
78627-05 Shaft Assembly, 2-Piece Needle, R70
2 74653-00 Adapter, Male Chevron 1
3 70430-01 Electrode, High Wear 1
4 14323-00 Seal, Chevron 4
5 18821-00 Adapter, Female Chevron 1
6 18842-01 Tube, Packing, R90 1
18842-02 Tube Packing, R70
7 78629-00 Retainer, Needle Seal, Rear 1
8 79001-06 O-Ring, Solvent Proof 1
9 10051-05 Cup Seal, Spring Loaded 1
10 78630-00 Spacer, Seal 1
11 17390-04 Washer, Beville Spring 6
12 78632-00 Nut, Locking Trigger Adjustment 1
13 78631-00 Nut, Packing 1
14 78633-00 Spring Retainer, Needle Shaft 1
15 80141-00 Spring 1
16 SI-07-03 Service Instruction 1
Item #
R90 (79599-01) AND R70 (79599-02) CLASSIC NEEDLE SHAFT
(2K PACKINGS) (STD. PACKINGS)- PARTS LIST
(Figure 29)
Part # Description
Qty

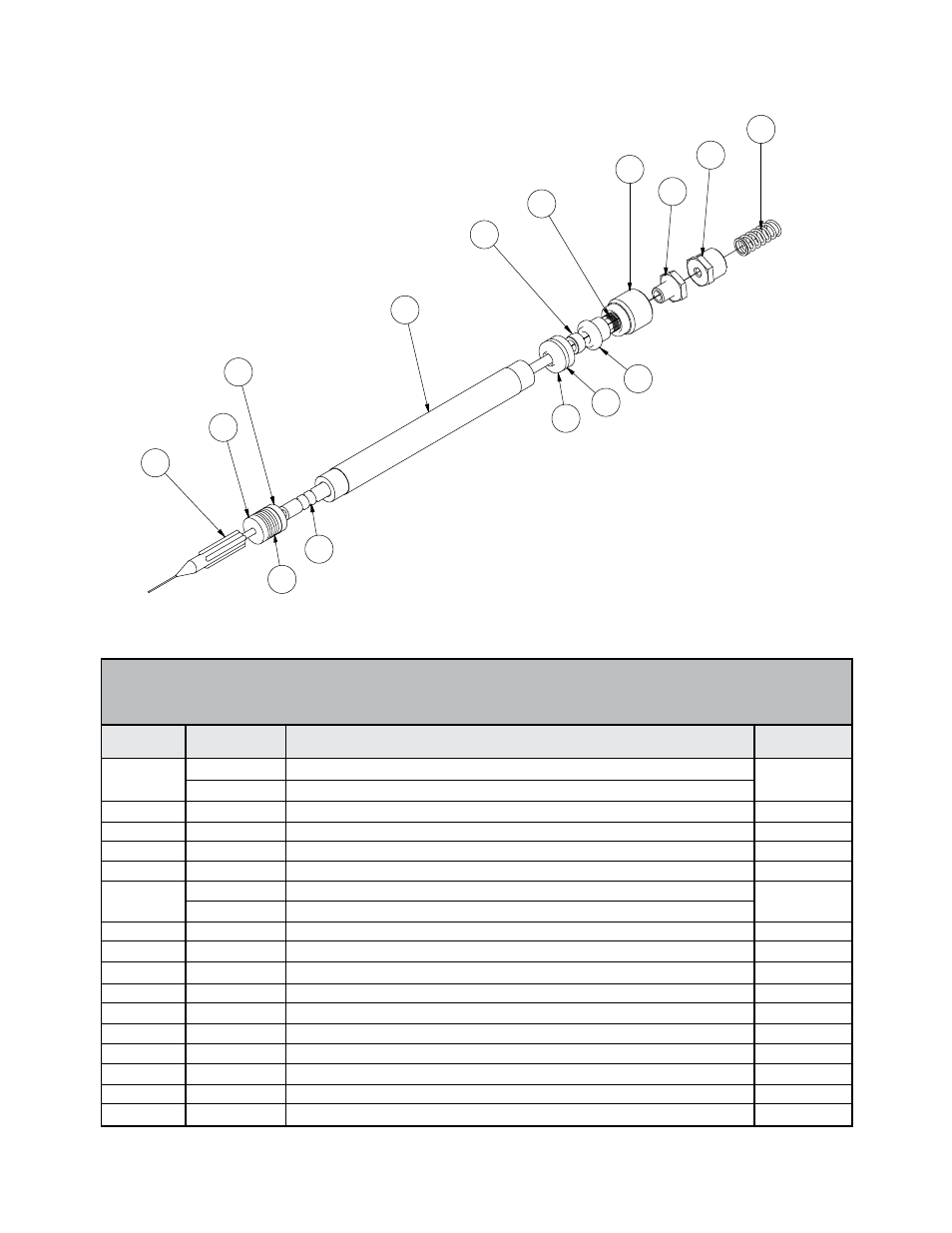

Figure 29: R90 (79599-01) and R70 (79599-02)
Classic Needle Shaft (2k Packings) (Std. Packings)
3
2
5
6
7
10
9
13
12
14
15
8
4
1
11
