Vector R Series Classic Applicators - Maintenance
41
Ransburg
AH-06-02.12
HANDLE / RESISTOR TUBE
Removal
1. The following procedures must be performed
prior to removing the hook and resistor tube:
• Barrel removal
• High Voltage Cable removal
• Fluid/Air Hose removal
2. Remove the gasket from the handle; if it was
not removed with the barrel.
3. Remove the fan air adjustment valve, pull the
rear cover straight off.

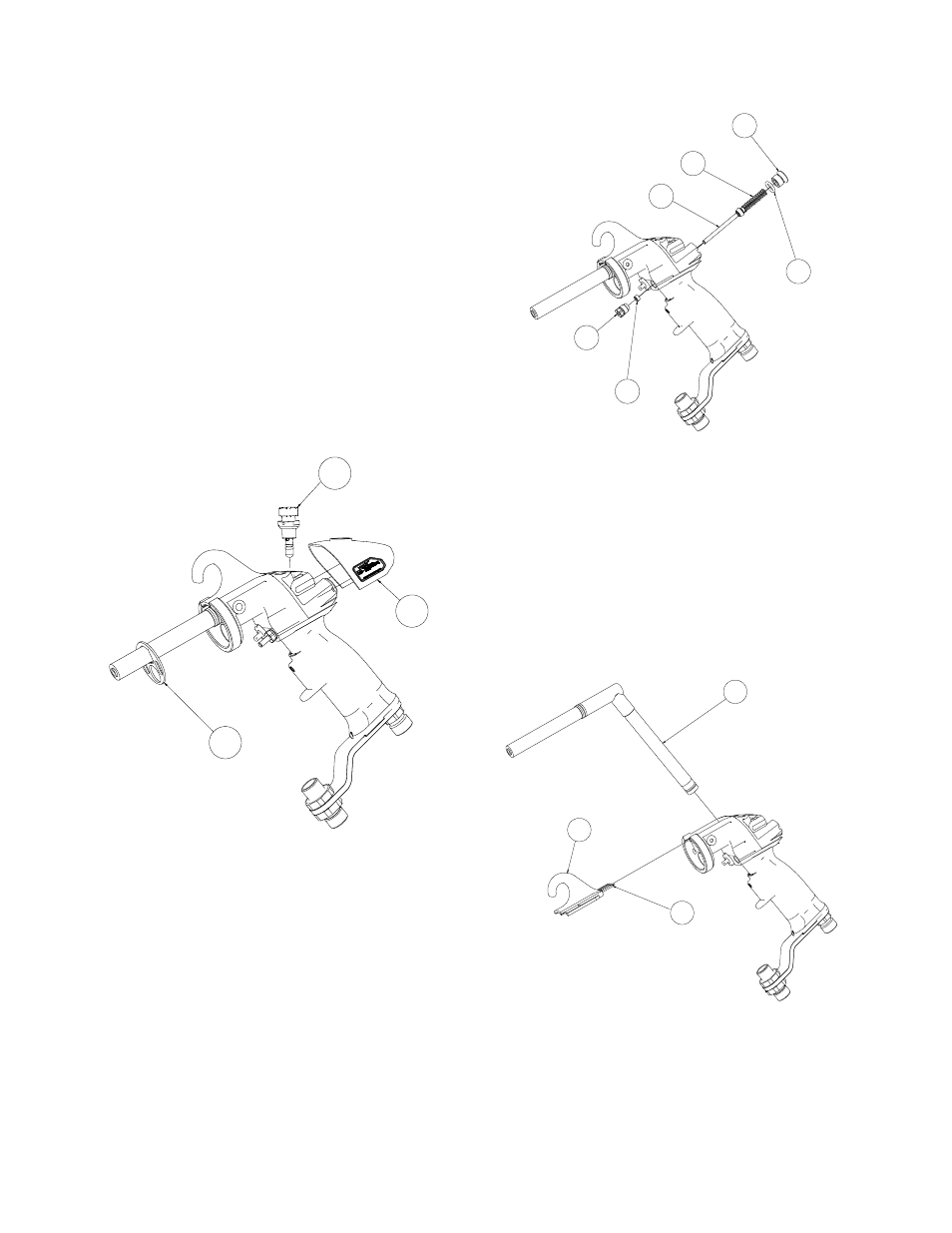

Figure 21: Gasket and Fan Air Adjustment
Valve Removal
1 - Barrel Gasket
2 - Fan Air Adjustment Valve
3 - Rear Cover
4. Remove the air valve retaining cap and o-ring.
Remove the air valve return spring. From the front
of the applicator, push the air valve out the rear of
the applicator. Remove the air valve retaining nut
and seal from the base of the applicator.
5. Remove the hook and hook gasket. Pull the
resister tube straight out of the applicator.
Figure 22: Air Valve Retaining Cap and
O-Ring Removal
Figure 23: Hook and Hook Gasket Removal
1 - Air Valve Retaining Nut
2 - Seal (opening toward applicator rear)
3 - Air Valve
4 - Air Valve Return Spring
5 - Solvent Proof O-Ring
6 - Air Valve Retaining Cap
1 - Resistor Tube
2 - Hook
3 - Hook Gasket
1
3
2
1
2
3
4
6
5
1
2
3
