7. Carefully remove the opto-pickup printed circuit assembly.
Opto-Pickup

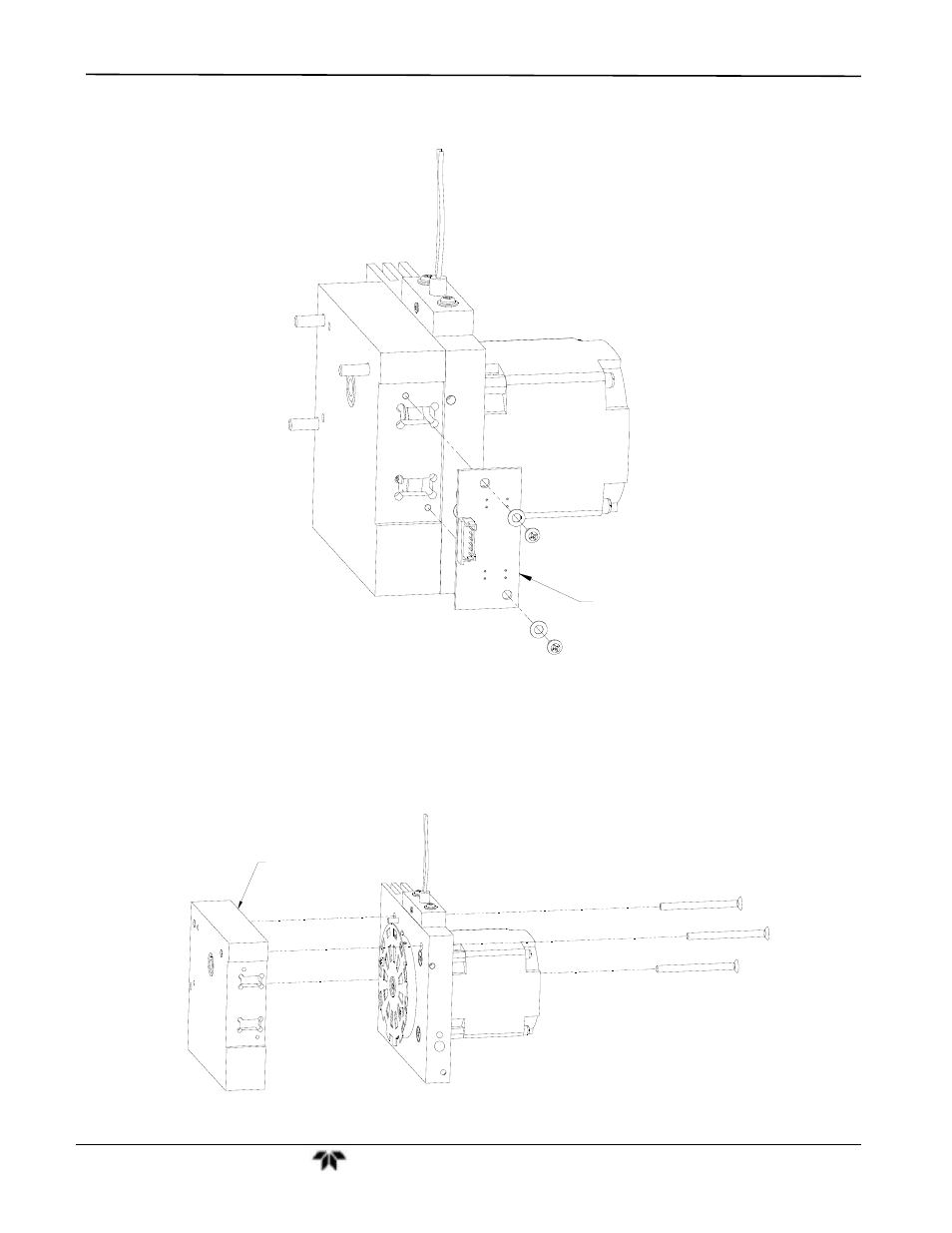

Figure 13-16: Removing the Opto-Pickup Assembly
8. Remove the four (4) screws holding the GFC Wheel motor/heat sink assembly to the GFC Wheel
housing.
9. Carefully remove the GFC Wheel motor/heat sink assembly from the GFC Wheel housing.
GFC WHEEL HOUSING
Figure 13-17: Removing the GFC Wheel Housing
