Theory of Operation

Model GFC7001E Carbon Dioxide Analyzer

Teledyne Analytical Instruments

243

Thermo-Electric

Cooler

Control Circuit

Sample &

Hold

Circuits




(x4)

Amplifiers

Dark

Switch

Photo-

detector

Pre Amp

Phase

Lock

Loop

E-Test

Generator


Compact

Programmable

Logic Device

M/R Sensor

Segment

Sensor

E Test Control

Dark Switch

Control

X10 Clock

Phase Lock

E Test A Gate

Dark Test Gate

X1 Reference

Segment

Status LED

Phase Lock Warning

M/R

Status LED

Segment Clock

E Test B Gate

Measure Gate

Measure Dark Gate

Reference Gate

Reference Dark Gate

CO MEAS

CO Reference

56V

Bias

Variable

Gain Amp

From GFC
Wheel

From CPU
via Mother

Board

Signal

Conditioner

Signal

Conditioner

10

x10

TEC Control

PHT DRIVE

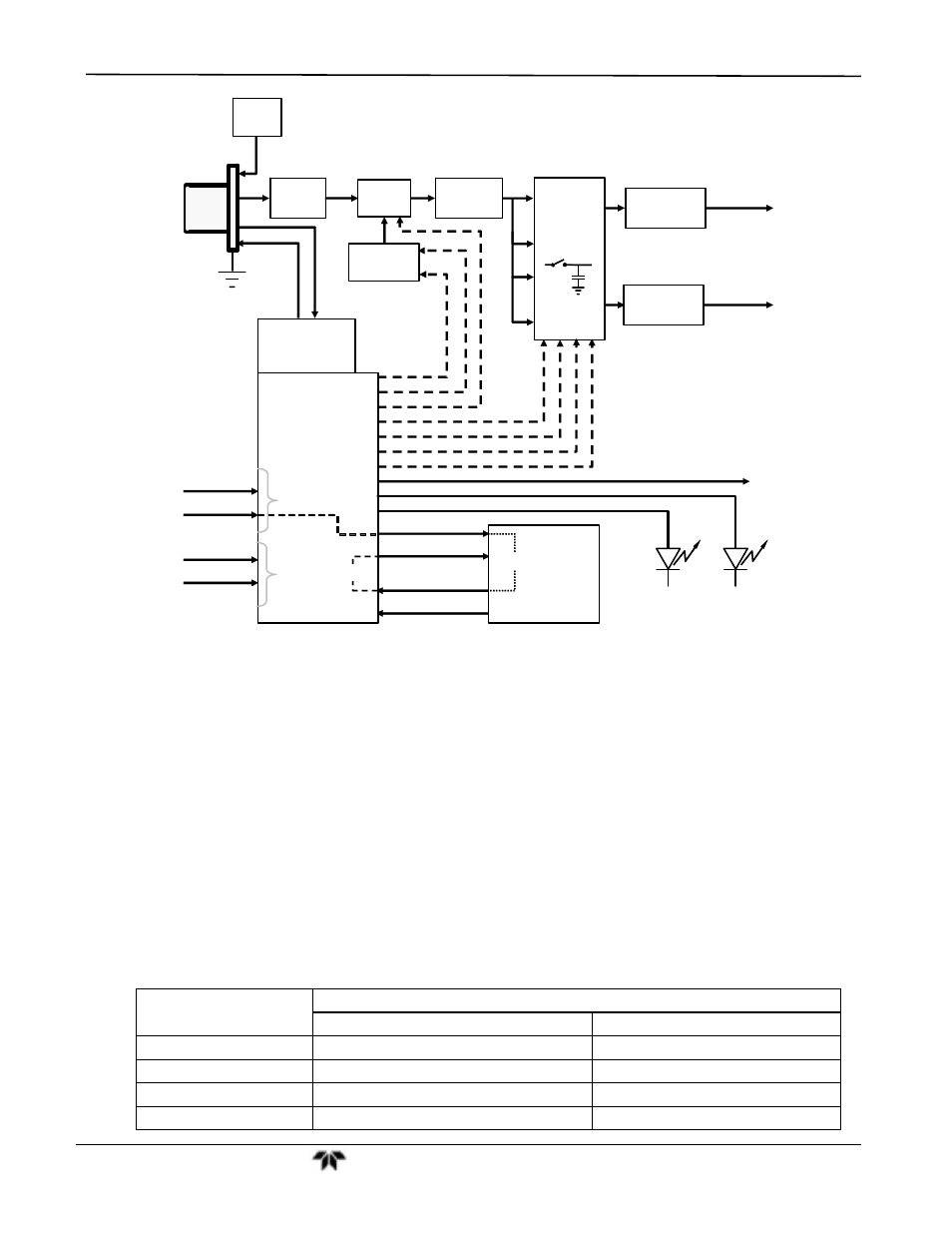

Figure 11-12: GFC 7001E/EM Sync/Demod Block Diagram

11.5.4.2. Signal Synchronization and Demodulation

The signal emitted by the IR photo-detector goes through several stages of amplification before it can be
accurately demodulated. The first is a pre-amplification stage that raises the signal to levels readable by the rest
of the sync/demod board circuitry. The second is a variable amplification stage that is adjusted at the factory to
compensate for performance variations of mirrors, detectors, and other components of the optical bench from
instrument to instrument.

The workhorses of the sync/demod board are the four sample-and-hold circuits that capture various voltage
levels found in the amplified detector signal needed to determine the value of CO MEAS and CO REF. They are
activated by logic signals under the control of a compact Programmable Logic Device (PLD), which in turn
responds to the output of the Segment Sensor and M/R Sensor as shown in Figure 11-9.

The four sample and hold circuits are:

Table 11-2: Sync DEMOD Sample and Hold Circuits

Designation

Active When:
IR BEAM PASSING THROUGH

Segment Sensor Pulse is:

Measure Gate

MEASUREMENT cell of GFC Wheel

HIGH

Measure Dark Gate

MEASUREMENT Cell of GFC Wheel

LOW

Reference Gate

REFERENCE cell of GFC Wheel

HIGH

Reference Dark Gate

REFERENCE cell of GFC Wheel

LOW
