Model GFC7001E Carbon Dioxide Analyzer

Teledyne Analytical Instruments

112

7.1.5. SETUP DAS EDIT: ACCESSING THE IDAS EDIT MODE

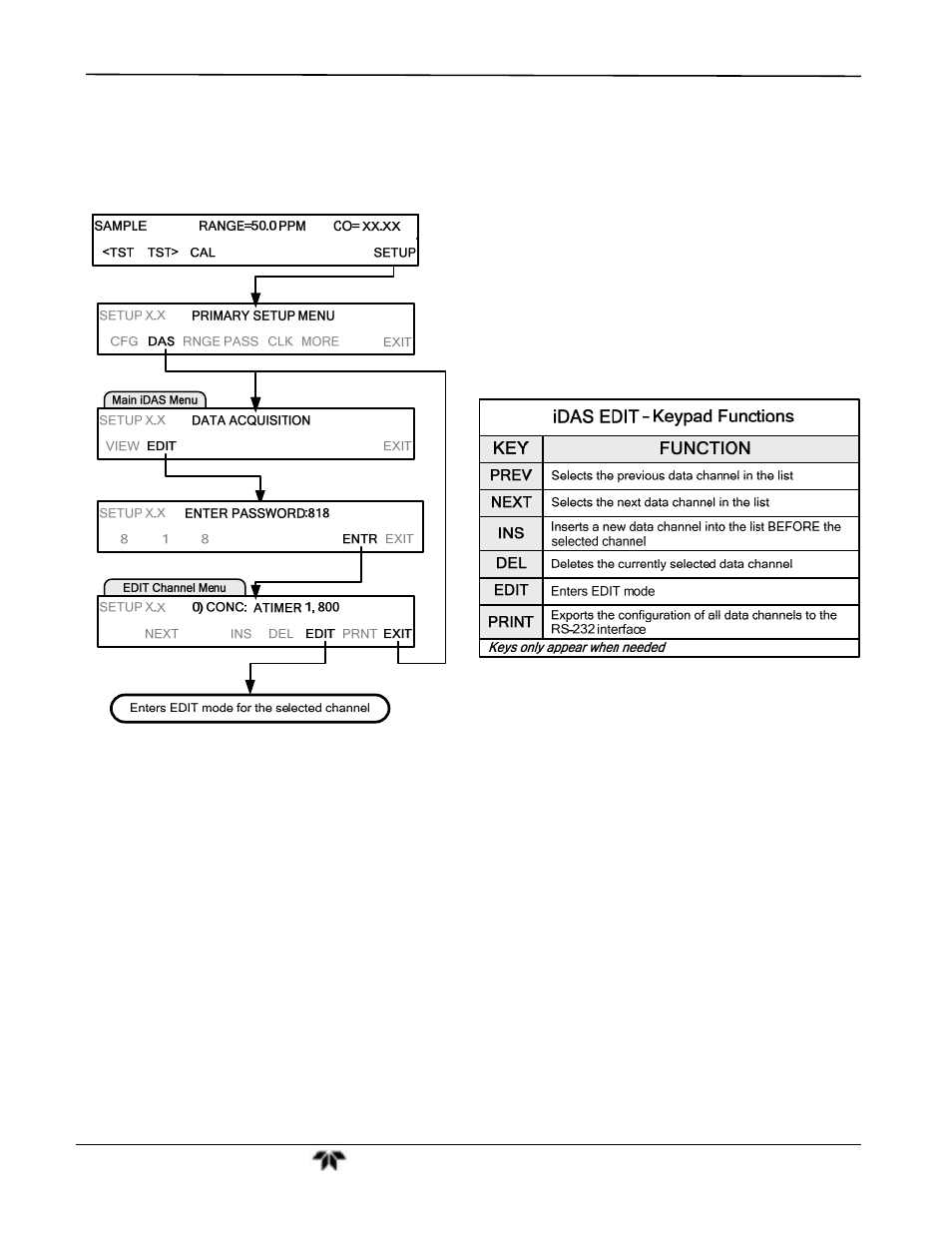

iDAS configuration is most conveniently done through the APICOM remote control program. The following list of
key strokes shows how to edit the iDAS using the front panel.

When editing the data channels, the top line of the display indicates some of the configuration parameters.

For example, the display line:

0) CONC: ATIMER, 1, 800

Translates to the following configuration:

Channel No.: 0
NAME: CONC
TRIGGER EVENT: ATIMER
PARAMETERS: One parameter is included in this channel
EVENT: This channel is set up to store 800 records.

To edit the name of a data channel, follow the above key sequence and refer to Section 7.1.5.1:
