Troubleshooting & Repair

Model GFC7001E Carbon Dioxide Analyzer

Teledyne Analytical Instruments

280

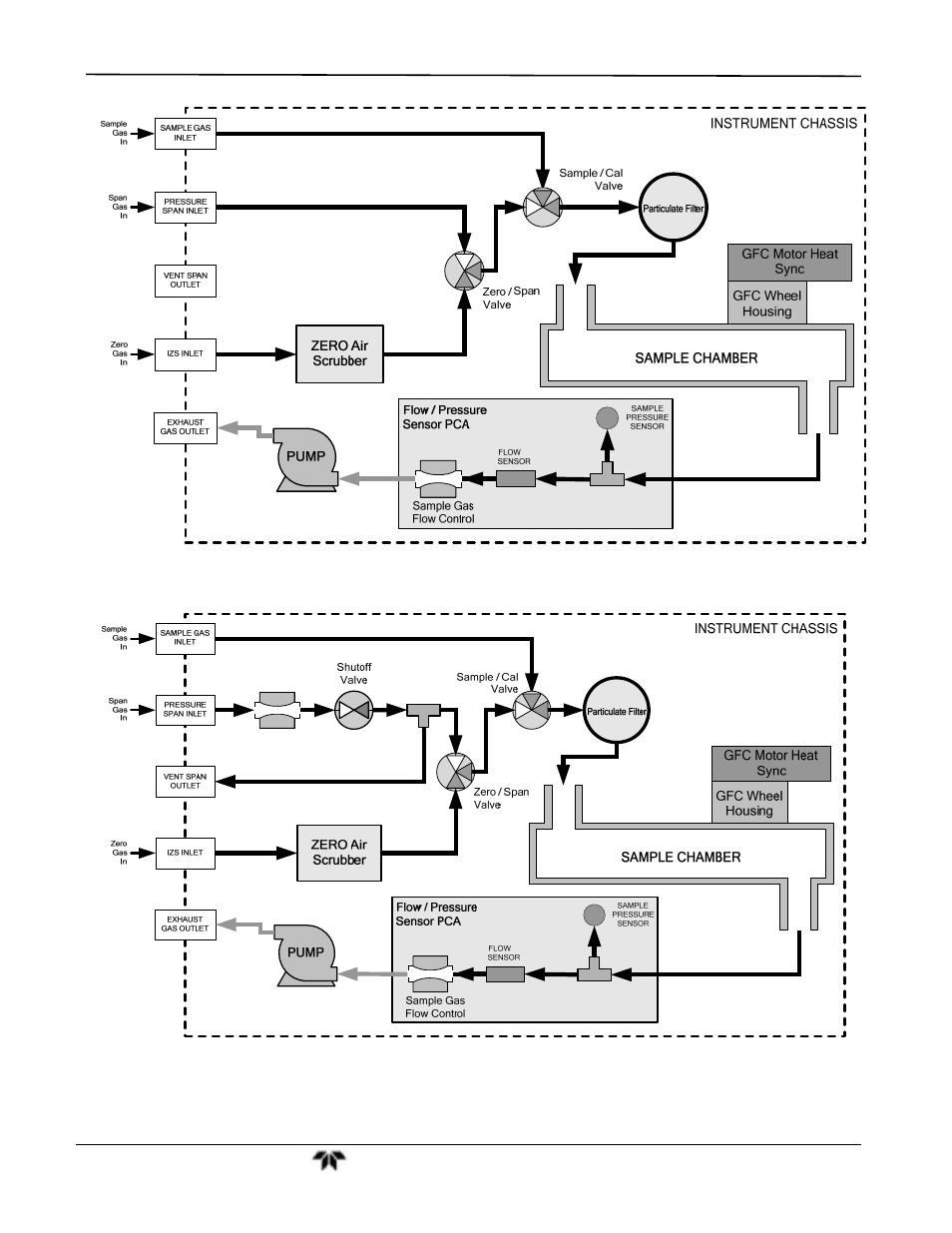

Figure 13-9:

Internal Pneumatic Flow OPT 51B – Zero/Span Valves with Internal Zero Air Scrubber

Figure 13-10: Internal Pneumatic Flow OPT 51C – Zero/Span/Shutoff w/ Internal Zero Air Scrubber
