178 Chapter 6
Custom Arb Waveform Generator
Configuring Hardware
the internal ARB as a baseband source and enable the wideband inputs.
1. Set up the internal baseband generator with the desired signal.
2. Press the Mux hardkey.
3. Press I/Q Out .
4. Press BBG1
5. Press the front panel I/Q hardkey.
6. Press I/Q Off .
7. Press I/Q Path Wide (Ext Rear Inputs) .
8. Press I/Q On .
Configuring Hardware
To Set a Delayed, Positive Polarity, External Single Trigger
Using this procedure, you learn how to utilize an external function generator to apply a delayed
single–trigger to a custom multicarrier waveform.

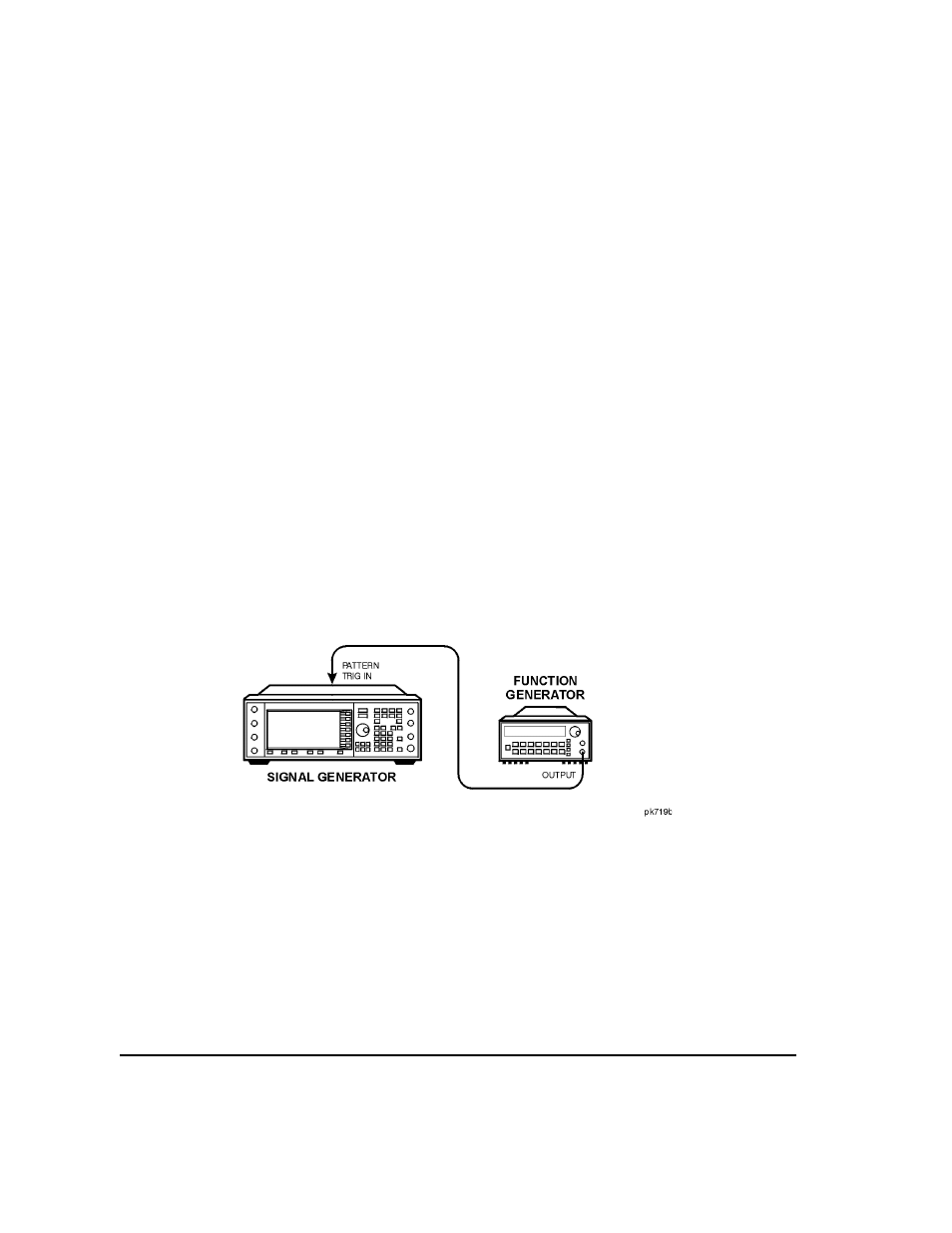

1. Connect an Agilent 33120A function generator or equivalent to the signal generator PATT
TRIGGER IN port, as shown in
Figure 6- 1 .
Figure 6-1
2. On the signal generator, press Preset .
3. Press Mode > Custom > Arb Waveform Generator .
4. Press Multicarrier Off On until On is highlighted.
5. Press Trigger > Single .
6. Press Trigger > Trigger Setup > Trigger Source > Ext .
7. Press Ext Polarity Neg Pos until Pos is highlighted.
8. Press Ext Delay Off On until On is highlighted.
9. Press Ext Delay Time > 100 > msec .
