22 Chapter 1
Signal Generator Overview
Rear Panel

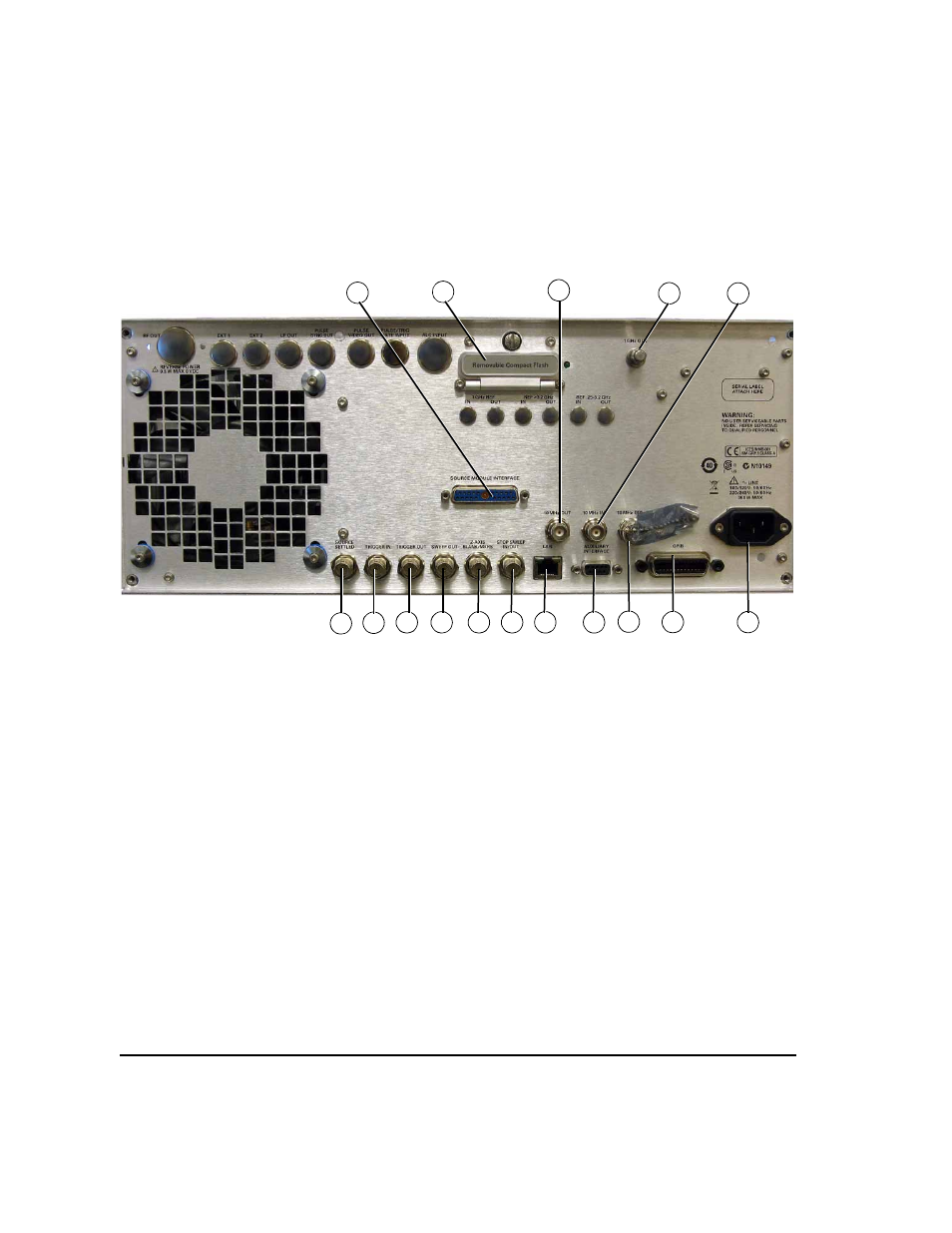

Figure 1-5 Standard E8257D and E8663D Rear Panel
5. AUXILIARY I/O 19. AUXILIARY INTERFACE 26. SWEEP OUT
12. COH CARRIER (Serial Prefixes
>=US4646/MY4646) 20. 10 MHz IN 27. TRIGGER OUT
13. 1 GHz REF OUT (Serial Prefixes
>=US4646/MY4646) 21. LAN 28. TRIGGER IN
15. AC Power Receptacle 22. 10 MHz OUT 29. SOURCE SETTLED
16. GPIB 23. STOP SWEEP IN/OUT 30. SOURCE MODULE INTERFACE
17. 10 MHz EFC 25. Z–AXIS BLANK/MKRS 44. Flash Drive (Serial Prefixes
>=US4829/SG4829/MY4829 (E8267D)
and >=US4928/SG4928/MY4928
(E8257D))
30 44 22 13 20
29 28 27 26 25 23 21 19 17 16 15
