N5102A Digital Signal Interface Module

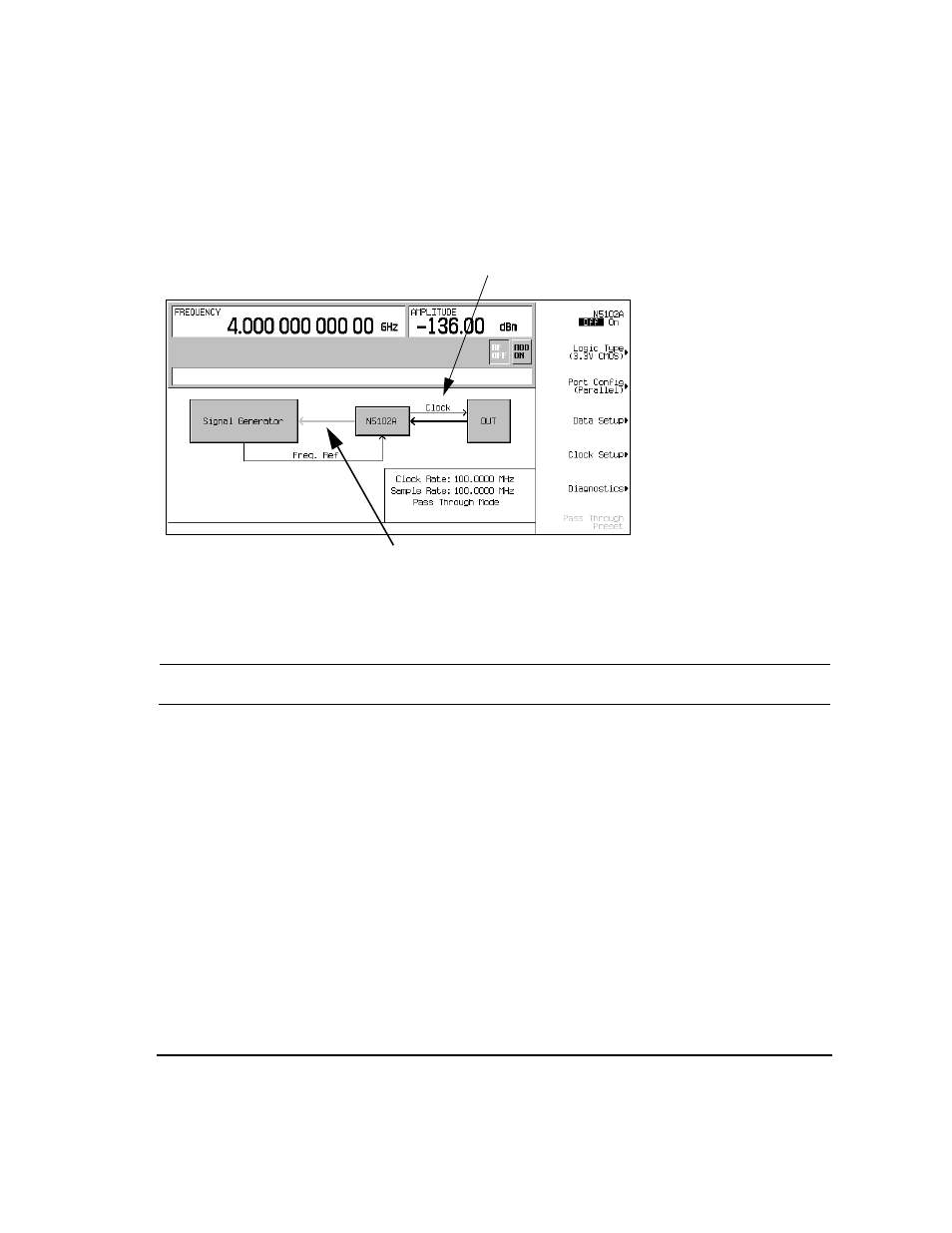

Figure 12-15 First-Level Softkey Menu
Selecting the Input Direction
If both Option 003 (output mode) and Option 004 (input mode) are installed, you must select the
input direction.
Press Data Setup > Direction Input Output to Input and press Return .
NOTE If only Option 004 is installed, the direction softkey will be unavailable and the mode will
always be input.
Line is grayed out until the N5102A module interface is turned on
Internal clock going to the DUT
