Chapter 3

107

Basic Digital Operation

Using Waveform Markers

2.

Toggle the markers as desired:

a.

Highlight the first waveform segment.

b.

Press

Enable/Disable Markers

.

c.

As desired, press

Toggle Marker 1

,

Toggle Marker 2

,

Toggle Marker 3

, and

Toggle Marker 4

.

Toggling a marker that has no marker points (

page 104

) has no effect on the auxiliary

outputs.

An entry in the Mkr column (see figure below) indicates that the marker is enabled for that
segment; no entry in the column means that all markers are disabled for that segment

d. In turn, highlight each of the remaining segments and repeat

Step c

.

3.

Press

Return

.

4.

Name and store the waveform sequence (

Step 3

on

page 93

).

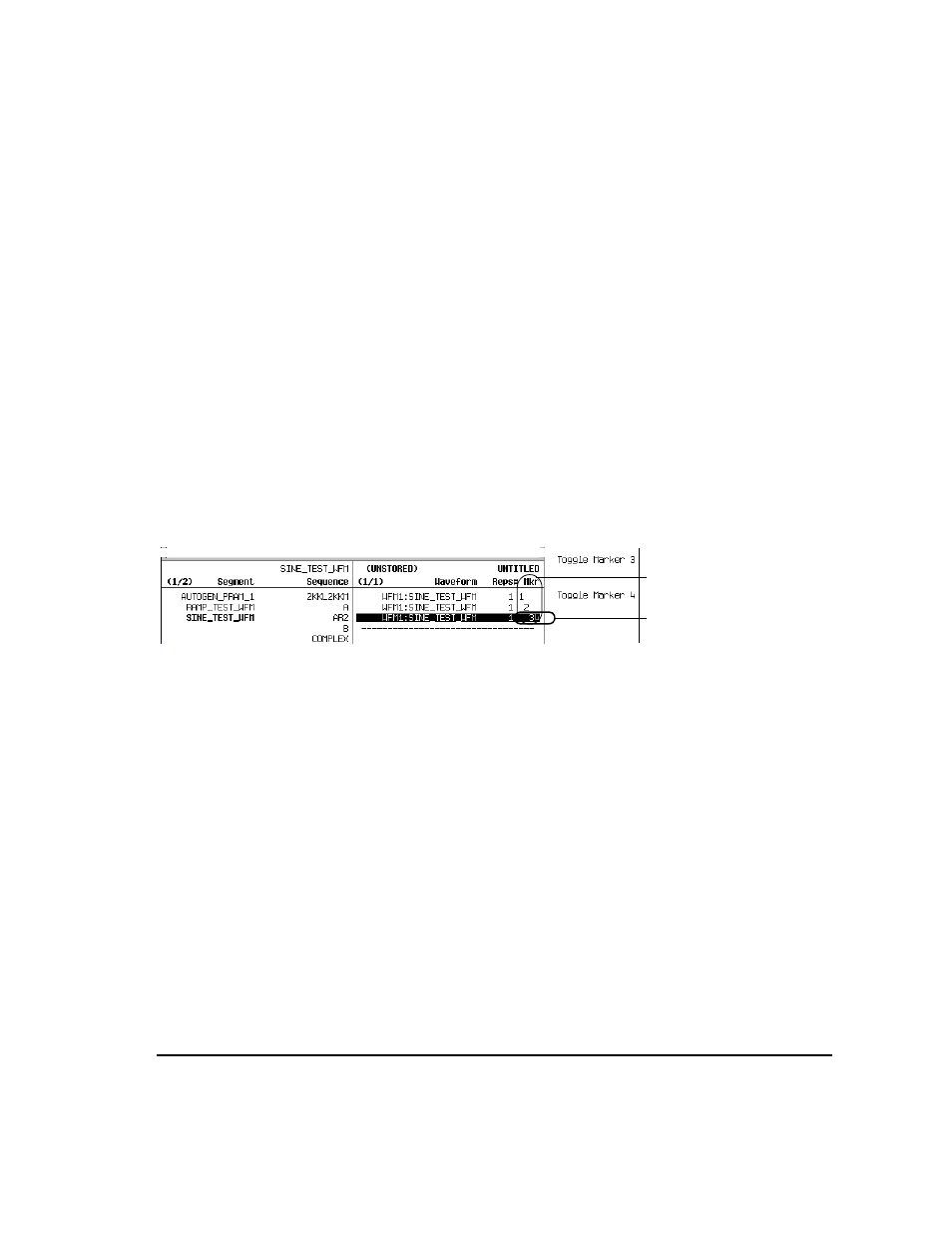

The following figure shows a sequence built reusing the same factory–supplied waveform segment; a
factory–supplied segment has a marker point on the first sample for all four markers. In this
example, Marker 1 is enabled for the first segment, Marker 2 is enable for the second segment, and
markers 3 and 4 are enabled for the third segment.

For each segment, only the markers enabled for that segment produce a rear panel auxiliary output
signal. In this example, the Marker 1 auxiliary signal appears only for the first segment, because it is
disabled for the remaining segments. The Marker 2 auxiliary signal appears only for the second
segment, and the marker 3 and 4 auxiliary signals appear only for the third segment.

In an Existing Waveform Sequence

If you have not already done so, create and store a waveform sequence that contains at least three
segments (

page 93

). Ensure that the segment or segments are available in volatile memory (

page 96

).

1.

Press

Mode

>

Dual ARB

>

Waveform Sequences

, and highlight the desired waveform sequence.

2.

Press

Edit Selected Waveform Sequence

, and highlight the first waveform segment.

3.

Press

Enable/Disable Markers

>

Toggle Marker 1

,

Toggle Marker 2

,

Toggle Marker 3

, and

Toggle Marker 4

.

Toggling a marker that has no marker points (

page 104

) has no effect on the auxiliary outputs.

An entry in the Mkr column indicates that the marker is enabled for that segment; no entry in the
column means that all markers are disabled for that segment

4.

Highlight the next waveform segment and toggle the desired markers (in this example, markers 1
and 4).

5.

Repeat

Step 4

as desired (for this example, select the third segment and toggle marker 3).

6.

Press

Return

>

Name And Store

>

Enter

.

Sequence Marker Column

This entry shows that
markers 3 and 4 are enabled
for this segment.
