236
Chapter 10
Two–Tone Waveform Generator
Creating, Viewing, and Modifying Two–Tone Waveforms
1.
On the signal generator, press
Mode Setup
>
Alignment Left Cent Right
to Left.
2.
Press
Apply Settings
to regenerate the waveform.
NOTE
Whenever a change is made to a setting while the two–tone generator is operating (
Two Tone Off
On
set to On), you must apply the change by pressing the
Apply Settings
softkey before the
updated waveform will be generated. When you apply a change, the baseband generator
creates a two–tone waveform using the new settings and replaces the existing waveform in
ARB memory.
3.

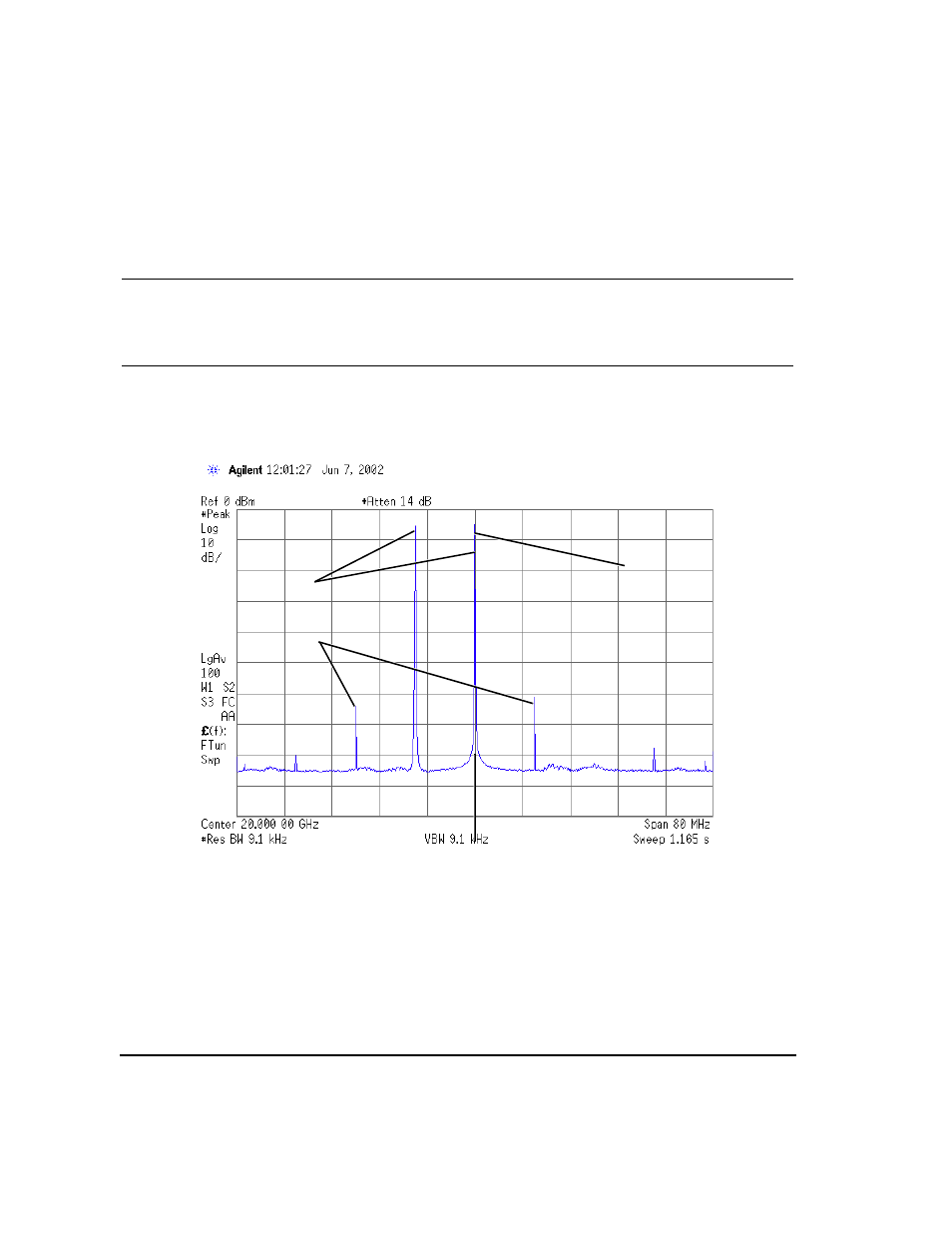

On the spectrum analyzer, temporarily turn off waveform averaging to refresh your view more
quickly. You should now see a left–aligned two–tone waveform that is similar to the one shown in
.
Figure 10-5
Upper Tone
Aligned with
Intermodulation
Distortion
Two–Tone
Channels
Carrier
Frequency
Carrier
Frequency
