Agilent Technologies E8267D PSG User Manual
Page 228
214
Chapter 8
GPS Modulation (Option 409)
Real Time GPS
Rear Panel Signal Synchronization

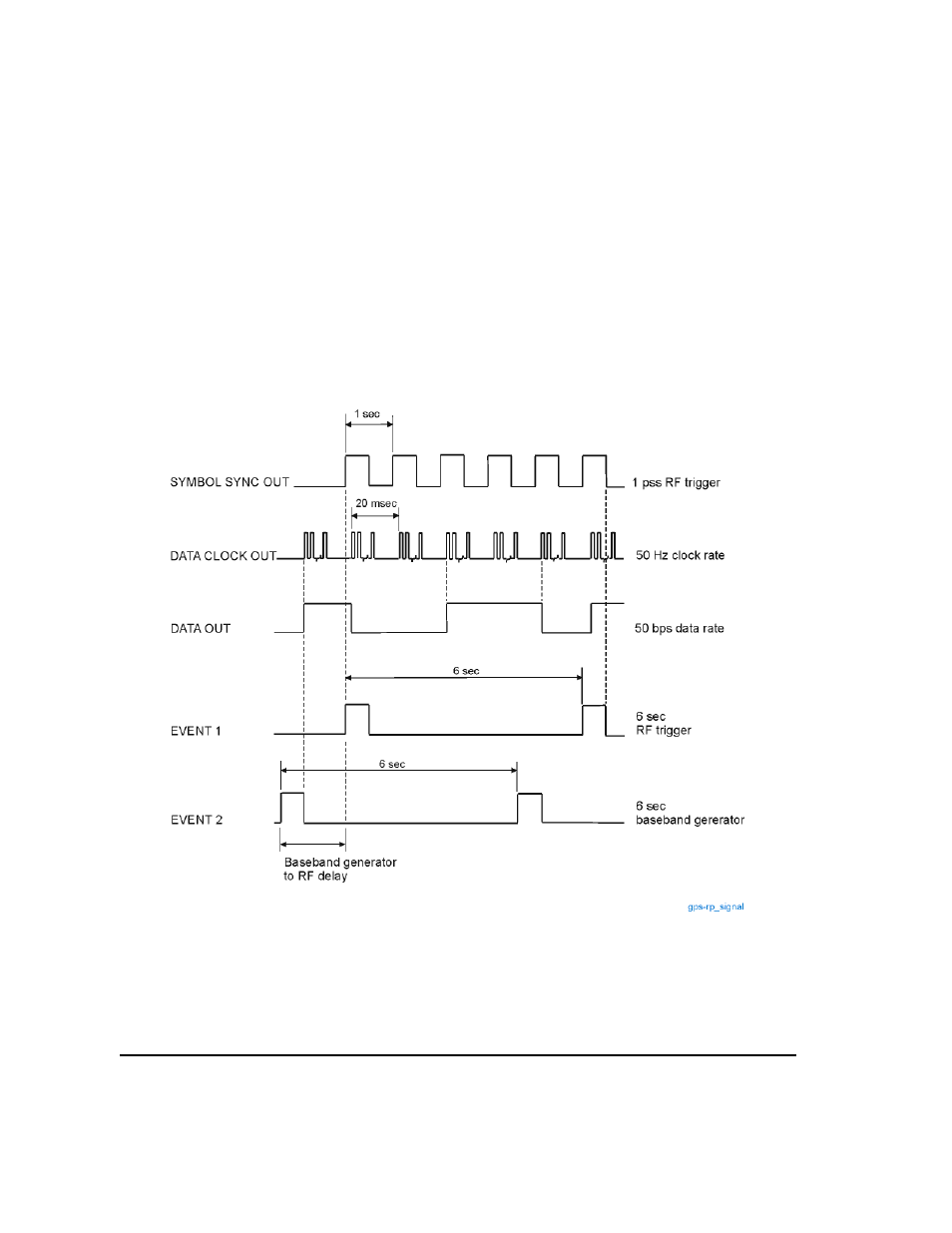

illustrates the timing relationships of the GPS signals available at the signal generator rear panel.
The AUX I/O connector outputs the SYMBOL SYNC OUT, DATA CLOCK OUT, and DATA OUT signals
(refer to,
for more information). EVENT 1 and EVENT 2 are BNC
connectors. If the signal generator is configured with Option 1EM, EVENT 1 and EVENT 2 connectors are
changed from BNC to SMB connectors. See
Figure 8-5
GPS Signals
