90
Chapter 3
Basic Digital Operation
Arbitrary (ARB) Waveform File Headers
Playing a Waveform File that Contains a Header
After a waveform file (AUTOGEN_WAVEFORM) is generated in a modulation format and the format is
turned off, the file becomes accessible to and can only be played back by the dual ARB player. This
is true for downloaded waveform files (downloading files is described in the Agilent Signal
Generators Programming Guide). When the waveform is selected for playback, the saved header
information is used by the signal generator. Some of these settings appear as part of the labels of the
softkeys used to set the parameters, and also appear on the dual ARB summary display (see
).
NOTE
The signal generator used to play back a stored waveform file must have the same options as
are required to generate the file.
For details on applying file header settings and playing back a waveform, see
To properly set up the instrument:
1.
Select the waveform.
2.
Modify the signal generator settings as desired.
3.
Turn on the dual ARB.

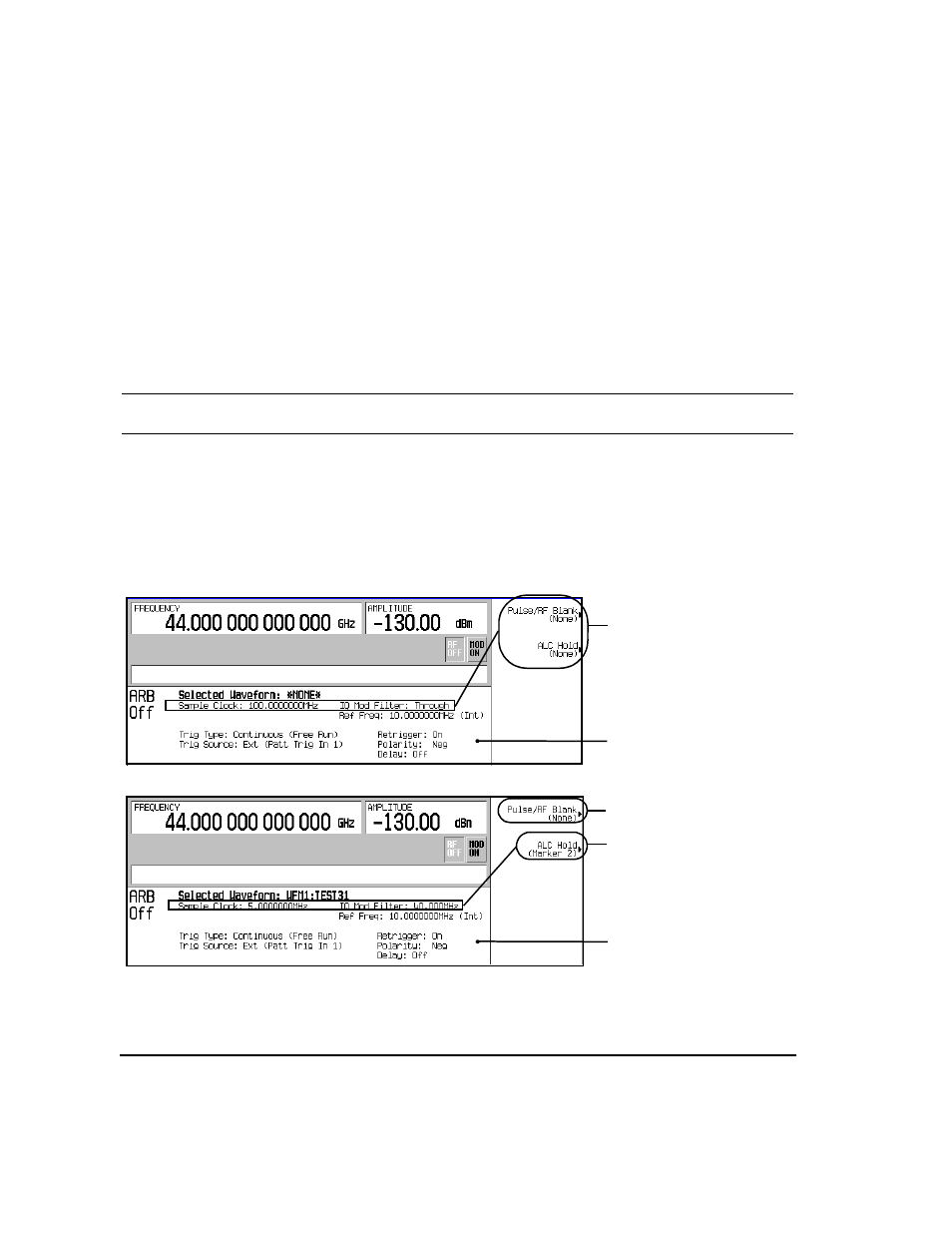

Figure 3-8
File Header Settings
Header setting same as
preset setting
Header setting applied
Summary Display
The waveform is selected;
saved header settings are
applied.
Can change when a
waveform is selected
Summary Display
The waveform is not selected;
preset settings are applied.
