6 Sawing
6.1 Before sawing
Never saw without blade
guard.
Pay attention to the following in-
structions:
– Check the moving sense of the wall
saw head and the swivelling arm
– The toothing of the track must be clean
– Make a "trial run " along the whole
length of the tracks and make sure
that the hoses are not clogged
– Cover sharp-edged objects along the
tracks to protect the hoses
– Check whether all dowel bolts at the
track bases are firmly tightened
– Check whether the water emerges pro-
perly at the pivot of the saw blade

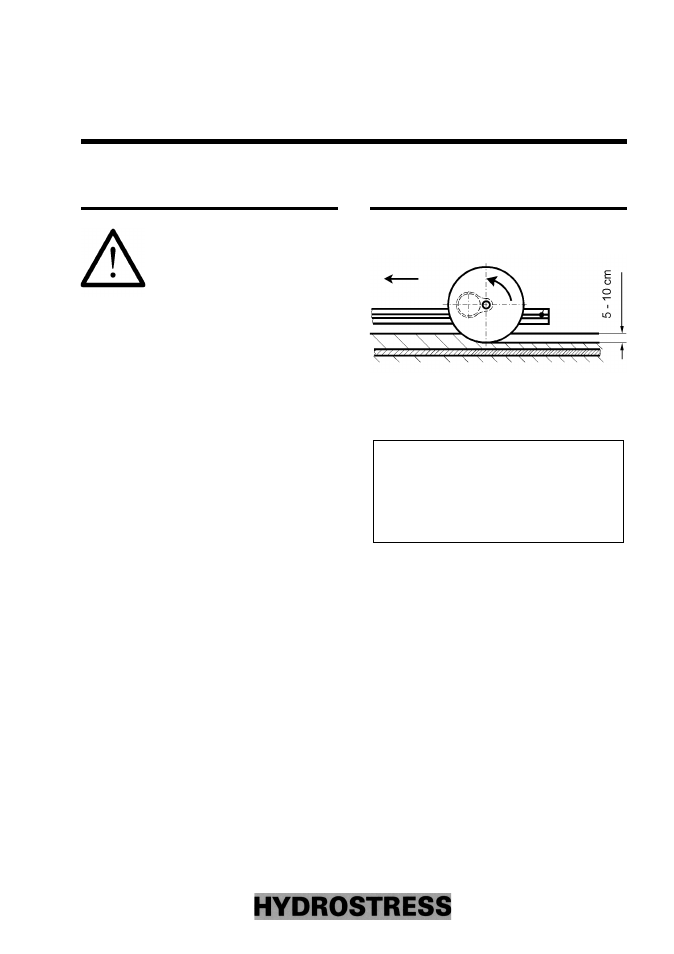

6.2 The first cut
Important:
- Sense of rotation with the feed sense
- Swivel arm must be drawn
- Cutting depth: 5 - 10 cm
- Only saw at half power
Procedure
1) Close the feed circuit valves at the
power unit
2) Drive the wall saw head to start posi-
tion
3) Saw
Fig. fz6-1.tif
FZ Sawing
