5.5 Changing the saw motor
Removing the saw motor
Never connect or disconnect
hoses when the unit is running.
1) Turn off power unit
2) Turn the pressure control to zero
3) Disconnect the hoses from the saw
motor
– Turn the locking ring
– Hold the hose end in straight position
– Push back the coupling sleeve
– Remove the hose
Always keep the hose couplings clean.
Leave the hose connected to the unit so
that pressure could be relieved via the
unit.
4) Remove the allen head screws.
5) Turn the saw motor and remove it.
Mounting the saw motor (Size 2)
1) Put the saw motor straight on to the
drive shaft and turn it
2) Tighten the screws (M8)
Mounting the saw motor (Size 3)
1) Remove the double thoothed profile
clutch
2) Put the saw motor straight on to the
driving shaft and turn it
3) Tighten the screws (M10)
Connecting the hoses
1) Push the hose coupling on or into its
counterpart until you hear it "click"
2) Turn the locking ring of the coupling
into its secured position
Always make sure that the hoses are pro-
perly connected. Always secure them by
turning the locking ring.

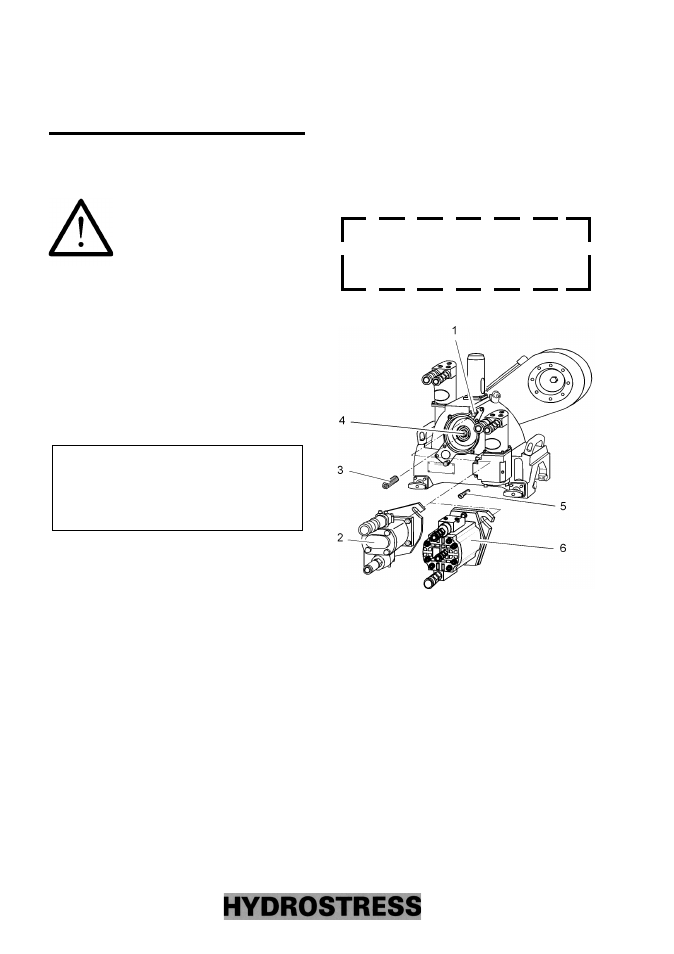

$OOHQ KHDG VFUHZ 0[
6DZ PRWRU VL]H
'RXEOH WRRWKHG SURILOH FOXWFK
'ULYH VKDIW
$OOHQ KHDG VFUHZ 0[
6DZ PRWRU VL]H
