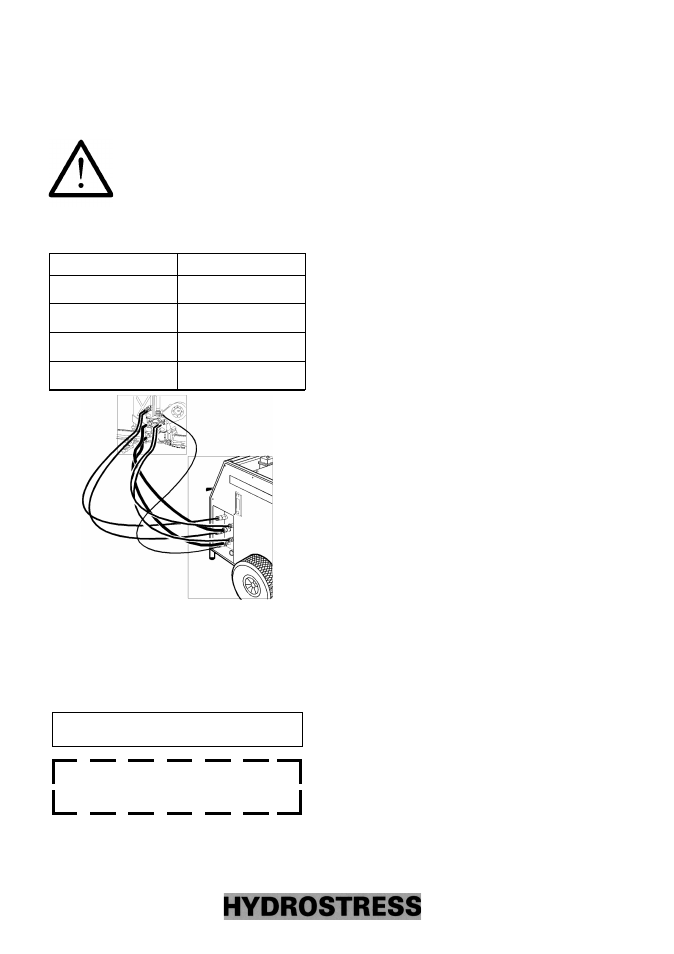

Connecting the hoses
Turn the pressure valve at the
power unit to zero
The following hose connections are to be established:
Wall saw system Power unit
Saw motor Main circuit
Swivelling motor Feed circuit
Feed motor Feed circuit
Water connection Water connection
1) Push the hose coupling on or into its
counterpart until you hear it ”klick”
2) Turn the locking ring of the coupling
into its secured position
Never force connections
Check the moving sense of the wall saw
head and the swivelling arm now
Fig. fz5-2.tif
Set-up FZ
Page 26 FZ30494E
