53HC2600 INSTRUCTION MANUAL
32 Online Configurations
The RS-232/485 and Communications ITBs should be mounted on 2.90 inch (73.7 mm) track. Clearance
specifications for ITB track mounting are provided in
Figure 4-4
.

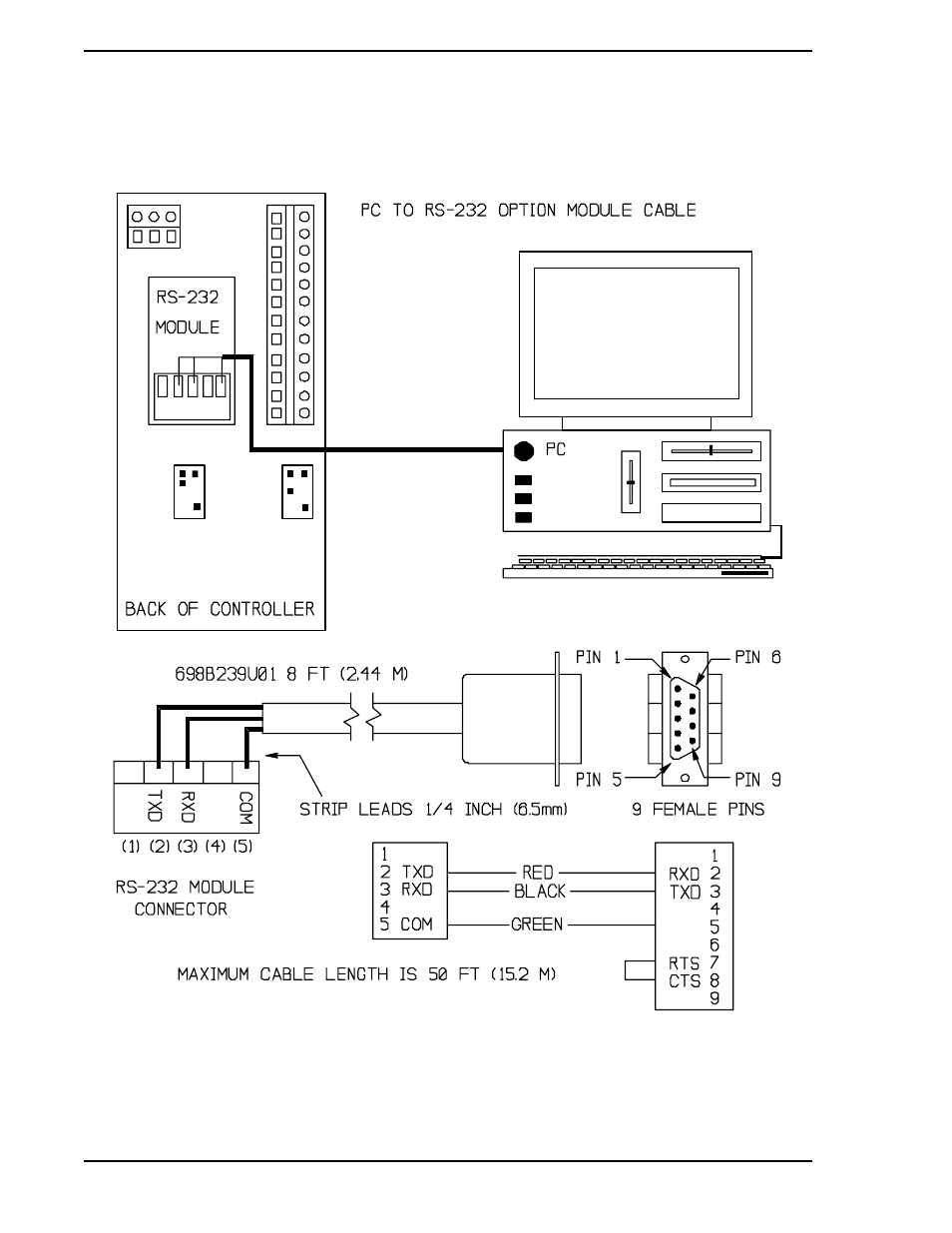

Figure 4-1. RS-232 Single Controller Cabling
